HellermannTyton manufacture a full end to end copper network system in Category 6A, Category 6 and Category 5e. From patch panels to patch leads and cable through to data outlets, HellermannTyton has an extensive product range giving the installer and end user a number of options when it comes to choosing the best solution for their project.

Category 6A

Category 6A

The Category 6A solution is available in UTP and FTP. High performance jacks are at the centre of the systems which, when combined with HellermannTyton Category 6A cables and patch cords, delivers superior Category 6A performance.

The systems includes a range of 1U and 2U modular flat (FTP available as either fixed and sliding) and angled panels, full set of plastic mounting modules and single-action termination tool with interchangeable FTP and UTP heads.

Category 6

Category 6

HellermannTyton offer a range of products in its Category 6 system. With Global, Gigaband and Ecoband patch panel options, the customer can use either vertical punch down panels or right angle panels and achieve up to 48 RJ45 ports in 1U of rack space. The Category 6 cable is available as shielded or unshielded and with PVC or LS0H outer sheaths.

There are a number of options for Category 6 data outlets in a range of industry sizes including Alpha Snap, Easy Clip and 6C. As with the cable, Patch leads are available in both PVC and LS0H in a range of colours and lengths.

Category 5e

Category 5e

The Category 5e system range from HellermannTyton offers the same choice and flexibility to the installer as the Category 6 range.

With a wide selection of patch panels, data outlets, cabling and patching options, there is a Category 5e solution for any project.

Category 3

Category 3

HellermannTyton also produce Category 3 keystone jacks and voice panels, suitable for any voice only application.

Copper Patch Panels

Patch Panels Patch Panels

HellermannTyton's range of patch panels extends from Category 6A, Category 6 through to Category 5e and Category 3 voice solutions.

Below is a summary of the patch panel range from HellermannTyton.

Modular UTP

Modular UTP

Modular UTP

Category 6A, Category 6 and Category 5e

A full range of 8 modular panels complements the GST jack product set. The panel range comprises flat and angled panels in 1U 24, 1U 48, 2U 48 or 2U 72 ports. All panels have a labelling field for each individual jack and are supplied unloaded.

Modular FTP

Modular FTP

Modular FTP

Category 6A

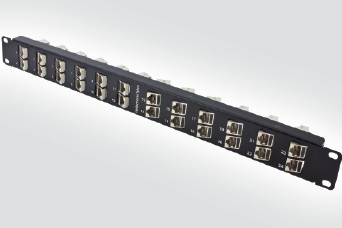

The Deca10 Keystone Patch Panel is designed to accommodate the Deca10 Keystone Jack ensuring that the shielded system is maintained. The panel features a choice of ground stud positions on the integral grounding bar and includes rear cable management. Both the fixed and sliding patch panels accept 24 separate Category 6A Keystone Jacks in 1U of space offering 24 RJ45 ports. The sliding panel design allows access to the terminations from the front of the panel.

GigaBand Patch Panels

GigaBand Patch Panels

GigaBand Patch Panels

Category 6

GigaBand is the premium Category 6 range from HellermannTyton. Designed to offer exceptional Category 6 performance and to meet the exacting standards of mission critical installations. The patch panel comprises individual modular PCB’s giving ultimate flexibility in the case of port damage or failure. The GigaBand Panel is available in 1U 24 port and 2U 48 port versions and is supplied with HellermannTyton’s unique aluminium snap-on rear cable manager and Rack Snap mounting fixings as standard.

Global Patch Panels

Global Patch Panels

Global Patch Panels Category 6 and Category 5e

Flat Panels

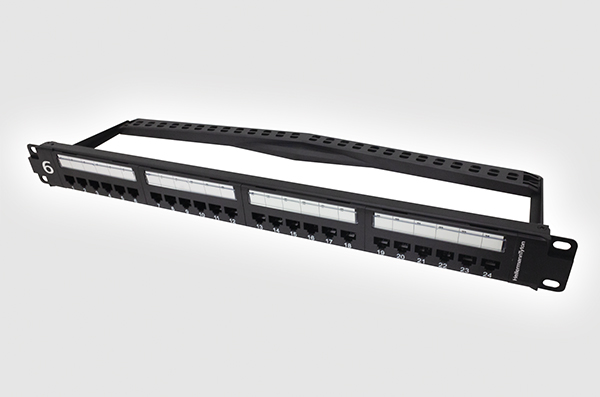

The flat Global Panel is available in Category 6 and Category 5e with 1U 24 port and 2U 48 port versions. The panel is supplied with HellermannTyton’s unique aluminium snap-on rear cable manager and Rack Snap mounting fixings as standard. Each 1U 24 port panel is constructed of 12 modular units, each offering 4 RJ45 ports. The panel can be supplied partially loaded to meet the exact requirements of the application, giving a cost effective solution.

Angled Panels

The angled Global Panel is available in Category 6 and Category 5e with 1U 24 port and 2U 48 port versions. The panel is supplied with HellermannTyton’s unique aluminium snap-on rear cable manager and Rack Snap mounting fixings as standard.

EcoBand Patch Panels

EcoBand Patch Panels

EcoBand Patch Panels

Category 6 and Category 5e

The Category 6 and Category 5e EcoBand Panel presents either 48 Category 6 or 48 Category 5e RJ45 ports in 1U of space with the HD panel or 24 ports in 1U in the standard panel with vertical IDC punch down for ease of termination. The robust body of the panels provide integrated rear cable management with a range of cable fixing locations.

AlphaSnap Patch Panels

AlphaSnap Patch Panels

AlphaSnap Patch Panels

Category 5e

Alpha Snap is the premium Category 5e product range from HellermannTyton. Designed to offer exceptional Category 5e performance and to meet the exacting standards of mission critical installations. The patch panel comprises individual modular PCB’s giving ultimate flexibility in the case of port damage or failure. The Alpha Snap Panel is available in 1U 24 port and 2U 48 port versions and is supplied with HellermannTyton’s unique aluminium snap-on rear cable manager and Rack Snap mounting fixings as standard.

MegaBand Patch Panels

MegaBand Patch Panels

MegaBand Patch Panels

Category 5e

The MegaBand Panel has been designed to offer exceptional Category 5e performance and value. Available in 1U 24 port and 2U 48 port versions, the MegaBand Panel is supplied with a sliding label panel and optional rear cable management. The MegaBand Panel is also supplied with Rack Snap mounting fixings as standard.

Voice Patch Panels

Voice Patch Panels

Voice Patch Panels

Category 3

There are 2 category 3 voice panels available from HellermannTyton. The High Density Voice Panel presents 50 RJ45 voice ports in 1U of space whereas the standard Voice Panel offers exceptional Category 3 performance whilst presenting 25 RJ45 voice ports in 1U of space.

Copper Data Outlets

Copper Data Outlets Copper Data Outlets

The data outlet forms an integral part of the end to end system from HellermannTyton. With outlets available in Category 6A, Category 6, Category 5e and also Category 3 below is an overview of HellermannTyton's most popular data outlets.

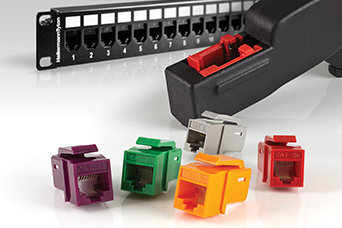

Keystones

Category 6A, Category 6 and Category 5e UTP

Category 6A, Category 6 and Category 5e UTP

UTP

Category 6A, Category 6 and Category 5e

The GST jack from HellermannTyton is a compact high performance UTP RJ45 connector. The solution includes Category 6A, Category 6 and Category 5e jacks, a range of modular flat and angled panels and a full set of plastic mounting modules. The GST jack has standard keystone mounting dimensions and therefore can be loaded into any standard faceplate, this means that the jack can be used in faceplates suited to local requirements. The 12 colour options available enable identification and demarcation of different services such as voice, data, CCTV, etc. They can also be used to define different paths or levels within the network in accordance with TIA 606A.

Category 6A FTP

Category 6A FTP

FTP

Category 6A

The Deca10 Keystone has been designed to be ‘non-punchdown‘. All 8 terminations are made at once using our special high speed termination tool (see accessories), helping to ensure quality and consistency of the connections and speeding up the termination process. The Deca10Keystone Jack shielded body enables exceptional alien crosstalk results and delivers superior Category 6A performance.

Outlets

GigaBand Outlets

GigaBand Outlets

GigaBand Outlets

Category 6

The GigaBand Outlet forms part of the leading Category 6 GigaBand product range from HellermannTyton. The individual modular design of the GigaBand system allows for uncompromised performance and quality. GigaBand Outlets offer exceptional Category 6 performance and are available in either standard single outlet or high density triple outlet format.

Easy Clip Outlets Category 6 and Category 5e

Easy Clip Outlets Category 6 and Category 5e

Easy Clip Outlets

Category 6

The GigaBand Easy Clip Outlet forms part of the leading Category 6 GigaBand product range from HellermannTyton. The individual modular design of the GigaBand system allows for uncompromised performance and quality. GigaBand Outlets offer exceptional Category 6 performance and are available in a standard single outlet format.

Category 5e

Alpha Snap is the leading Category 5e product group within the HellermannTyton cabling system product range. Designed to offer exceptional Category 5e performance and to meet the exacting standards of mission critical installations. The Alpha Snap Outlet is available in either standard single outlet or high density triple outlet format.

Category 5e Shielded

Alpha Snap is the leading Category 5e product group within the HellermannTyton cabling system product range. Designed to offer exceptional Category 5e performance and to meet the exacting standards of mission critical installations. The Alpha Snap Shielded Outlet is available in standard single data outlet format only.

Easy Clip Jack to Jack Category 5e

Easy Clip Jack to Jack Category 5e

Easy Clip Jack to Jack

Category 5e

The Jack to Jack module acts as a through coupler for two RJ45 patch cords allowing continuous Category 5e connectivity.

6C Outlets Category 6 and Category 5e

6C Outlets Category 6 and Category 5e

6C Outlets

Category 6

The Category 6 6C Outlet conforms to the industry standard 6C fixing dimensions and is compatible with the numerous floor boxes, face plates and trunking accessories available for 6C connectors.

Category 5e

The Category 5e 6C Outlet conforms to the industry standard 6C fixing dimensions and is compatible with the numerous floor boxes, face plates and trunking accessories available for 6C connectors.

Global Outlets Category 6 and Category 5e

Global Outlets Category 6 and Category 5e

Global Outlets

Category 6

The Global Category 6 Outlet has been designed to accommodate the same 4 port module used in the Global Panels and provides a high port density for data and voice services within a single gang space. Designed specifically for office environments, the Global Category 6 Outlet offers multiple services to one location.

Category 5e

The Global Category 5e Outlet has been designed to accommodate the same 4 port module used in the Global Panels and provides a high port density for data and voice services within a single gang space. Designed specifically for office environments, the Global Category 5e Outlet offers multiple services to one location.

GigaBand Outlets

GigaBand Outlets

GigaBand Outlets

Category 6

GigaBand is the leading Category 6 product group within the HellermannTyton cabling system product range. Designed to offer exceptional Category 6 performance and to meet the exacting standards of mission critical installations. The GigaBand Shielded Outlet is available in standard single data outlet format only.

AlphaSnap Outlets

AlphaSnap Outlets

AlphaSnap Outlets

Category 5e

Alpha Snap is the leading Category 5e product group within the HellermannTyton cabling system product range. Designed to offer exceptional Category 5e performance and to meet the exacting standards of mission critical installations. The Alpha Snap Outlet is available in either standard single outlet or high density triple outlet format.

Category 5e Shielded

Alpha Snap is the leading Category 5e product group within the HellermannTyton cabling system product range. Designed to offer exceptional Category 5e performance and to meet the exacting standards of mission critical installations. The Alpha Snap Shielded Outlet is available in standard single data outlet format only.

AlphaSnap Low Profile Outlets

AlphaSnap Low Profile Outlets

AlphaSnap Low Profile Outlets

Category 5e

The Alpha Snap Low Profile Outlet is available in the standard Alpha Snap format and is designed for applications where internal back box space is limited or where shallow trunking systems or raceways are used and maintains the same design and appearance as other outlets in the Alpha Snap range.

AlphaSnap Jack to Jack Outlets

AlphaSnap Jack to Jack Outlets

AlphaSnap Jack to Jack Outlets

Category 5e

The Jack to Jack module acts as a through coupler for two RJ45 patch cords allowing continuous Category 5e connectivity.

MegaBand Outlets

MegaBand Outlets

MegaBand Outlets

Category 5e

The MegaBand Outlet is designed to offer the user exceptional Category 5e performance and value. The labelling window holds the slide-in-label in place whilst keeping dust and dirt away. MegaBand Outlets fit into the single and double gang face plates from HellermannTyton, providing an attractive high density, low profile solution.

Bulk Copper Cable

Bulk Cable Bulk Cable

HellermannTyton supply a wide range of bulk copper cable in Category 6A, Category 6 and Category 5e.

Category 6a

Category 6a

Category 6a

Category 6A copper cable is supplied on 500 metre drums and is manufactured with a LS0H sheath, conforming with IEC fire rating standards. The category 6A cable is a U/FTP construction with individual pair screening eliminating the possibility of alien crosstalk. The cable is marked at 1 metre intervals for accurate measuring on site.

Category 6

Category 6

Category 6

Category 6 unshielded copper cable is supplied boxed in lengths of 305 metres in either LS0H or PVC sheaths. The category 6 cable is a U/UTP construction and is marked at 1 metre intervals for accurate measuring on site. Category 6 shielded copper cable is supplied on a 500 metre drum for the LS0H cable or boxed in lengths of 305 metres for the PVC cable. The category 6 cable is a F/UTP construction and is marked at 1 metre intervals for accurate measuring on site.

Category 5e

Category 5e

Category 5e

Category 5e unshielded copper cable is supplied in Reelex boxes in lengths of 305 metres in either LS0H or PVC sheaths. The category 5e cable is a U/UTP construction and is marked at 1 metre intervals for accurate measuring on site. The Reelex box is designed to provide easy cable pulling during installation. Category 5e shielded copper cable is supplied in Reelex boxes in lengths of 305 metres for the both LS0H and PVC cable. The category 5e cable is a F/UTP construction and is marked at 1 metre intervals for accurate measuring on site. The Reelex box is designed to provide easy cable pulling during installation.

Copper Patch Leads

Copper Patch Leads Copper Patch Leads

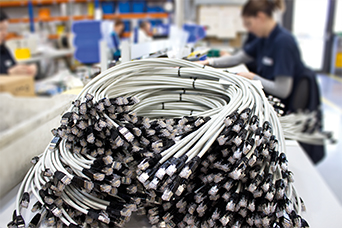

Patch Leads are a critical component in ensuring the end to end performance of a network. HellermannTyton's Patch Leads are manufactured and tested to the highest quality and exceed the component compliant requirements of the ISO/EIA standards.

HellermannTyton offer a range of standard lengths and colours to add choice and flexibility when choosing a patch lead for a project.

All patch leads are available in standard lengths of 1 metre, 2 metres, 3 metres, 5 metres or 10 metres but can be made to bespoke lengths on request.

Category 6A

Category 6A

Category 6A

The Category 6A patch lead is manufactured with a shielded cable to help eliminate alien crosstalk. Patch leads are packaged individually with test results supplied.  The Category 6A Patch Leads incorporate a low profile shielded plug suitable for high density applications with an integral strain relief boot to minimise force on the terminations and to assist in managing the bend radius of the cable. Available in grey the patch lead cable is sheathed in LS0H material making them suitable for internal use.

Category 6

Category 6

Category 6

The Category 6 patch lead is manufactured with either shielded or unshielded cable. The Patch leads are packaged individually with test results supplied.  The Category 6 Patch Leads incorporate a low profile shielded plug suitable for high density applications with an integral strain relief boot to minimise force on the terminations and to assist in managing the bend radius of the cable. Available in grey, blue, red green or yellow the patch lead cable is sheathed in LS0H or PVC material making them suitable for internal use.

Category 5e

Category 5e

Category 5e

The Category 5e patch lead is manufactured with either shielded or unshielded cable. The Patch leads are packaged individually with test results supplied.  The Category 5e Patch Leads incorporate a low profile shielded plug suitable for high density applications with an integral strain relief boot to minimise force on the terminations and to assist in managing the bend radius of the cable. Available in grey, blue, red green or yellow the patch lead cable is sheathed in LS0H or PVC material making them suitable for internal use.
