Fibre Optic Splice Trays in a range of new colours

Introduction

High contrast fibre optic splice trays

Fibre Optic Splice Trays in a range of new colours from HellermannTyton

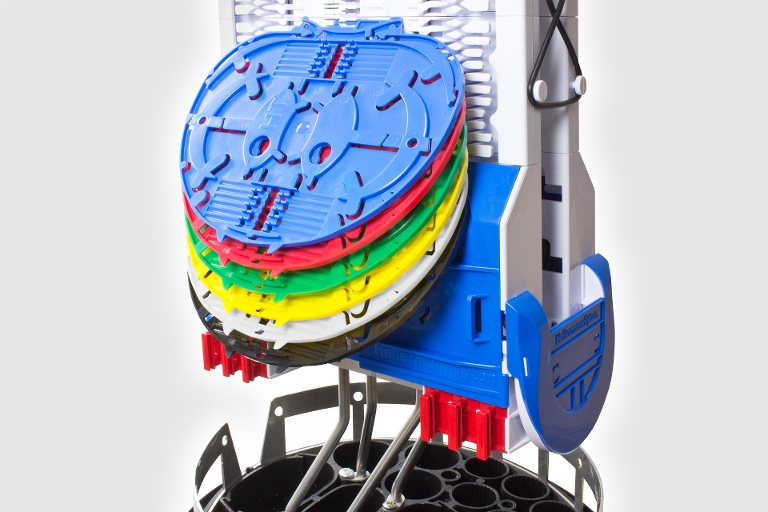

The new range of coloured Fibre Optic Splice Trays allow for high contrast to the standard white fibre management trays providing definitive means of service differentiation. The SE-IR trays can be supplied with a range of splice bridge inserts.



Features and Benefits

Features and Benefits of the HellermannTyton Coloured Fibre Optic Slice Trays
  • Positive fibre management minimum bend radius 30mm
  • Suitable for use in UFC-IR, FDN-IR or FML-IR closures
  • 2 fibre entry ports

  • SC-B-IR
    • Moulded splice holder fins for heatshrink (3A)
      splice protectors
    • Maximum splice capacity of 12 fibres
  • SE-IR
    • 2 mounting positions for splice inserts
    • Option for optical splitter/3A or ANT splice bridge
    • Optical splitter accommodation up to a maximum
      of 60 x 7 x 4mm
    • Maximum splice capacity of 24 fibres (double stacked)
    • Different splice bridge options allow for a
      splice type of up to 60mm

Products

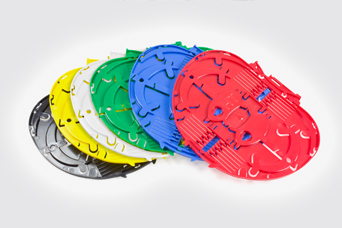

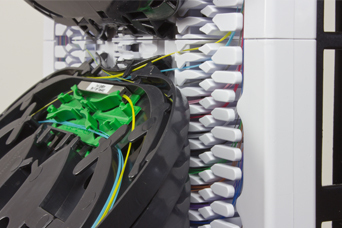

SC-B IR Fibre Optic Splice Trays

SC-B IR Fibre Optic Splice Trays

The Integrated Routing (IR) single circuit SC-B trays is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass.

The overall dimensions of the tray are 148 x 125 x 3.5mm. The tray accepts 3A splice protectors. The IR single circuit SC-B tray is suitable for use in the UFC-IR, FDN-IR and FML-IR closures as well as the IR enclosure range.

View products >

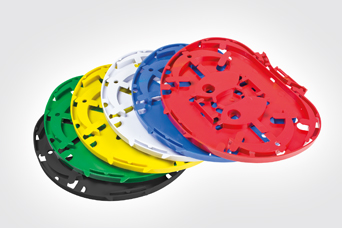

SE IR Fibre Optic Splice Trays

SE IR Fibre Optic Splice Trays

The Integrated Routing (IR) single element tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass.

The overall dimensions of the tray are 148 x 125 x 7mm. The IR single element tray is suitable for use in the UFC-IR, FDN-IR or FML-IR closures and IR enclosures.

The IR single element tray accepts a wide range of splice protector inserts and the maximum splice capacity of the tray is based on 24 double stacked heatshrink (3A) splice protectors up to 60mm long.

The IR single element tray can accommodate 2 x 60 x 7 x 4mm optical splitters when using the optional splitter/3A or ANT splice bridge.

View products >

Downloads and links

Download brochures and data sheets

To download the HellermannTyton product brochures available specific to coloured fibre optic splice trays, please follow the links below:

Datasheets

View products
