Customer Connection Enclosure (CCE)

Introduction

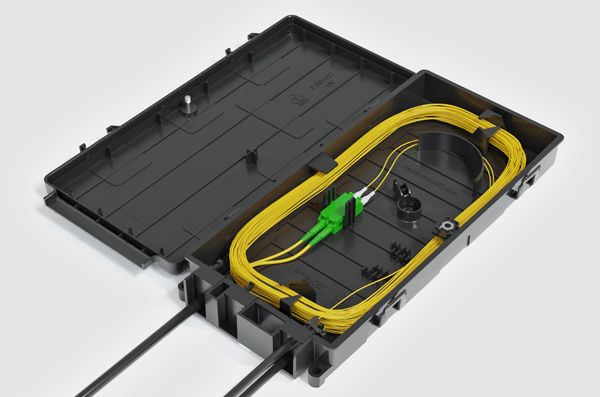

Up to 50m of Fibre Storage

up to 50m of Fibre Storage

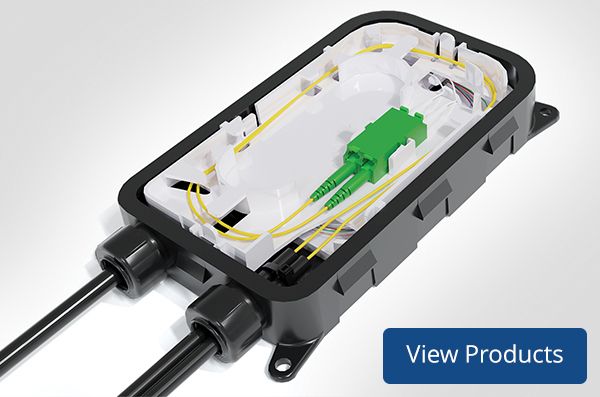

The Customer Connection Enclosure (CCE) has been designed as a Building Entry Point (BEP) to provide a fibre termination and network demarcation point external to the connected premise in a Fibre to the Home (FTTH) network. In addition to providing an external test point the enclosure will also store up to a maximum of 50m of 1.1mm cable.

The CCE has an IP54 sealing performance with 6 entry/exit ports at the bottom of the enclosure which is suitable for cables or ducts up to a maximum diameter of 7mm. A loop through facility allows for single fibre elements to be removed and spliced whilst the remaining fibres can be fed on to the next connection point. A single port in the rear of the closure allows for fibre to be passed through the wall into the customer premises.

HellermannTyton Customer Connection Enclosure CCE

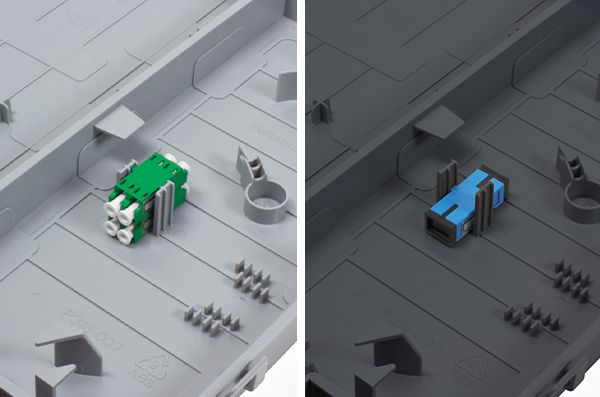

The CCE is the same width as a brick blow-out cover which will mask any unsightly bricks damaged by drilling through the wall from the inside of the house.

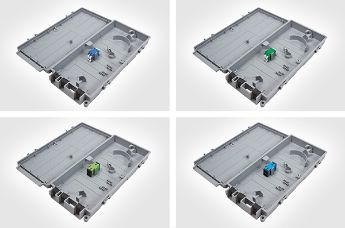

The CCE manages up to 2 SC simplex or LC duplex adaptors and has features to secure a maximum of 4 x 3A splices.
The lid is hinged allowing quick and clear access to the internal fibre for splicing and termination and the lid can be replaced if damaged. The CCE is supplied with a tamper-proof fitting, captive screw and nut, as standard.

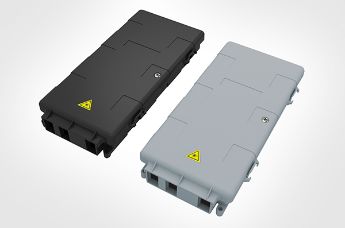

The CCE can be supplied pre-loaded with fibre adaptors and pigtails as required. Supplied standard in Black or Grey (Available in a range of colours and a customer logo can be moulded into the enclosure.  Minimum order quantities apply.).

Features and Benefits

HellermannTyton Customer Connection Enclosure CCE
  •   6 inbound / outgoing ports

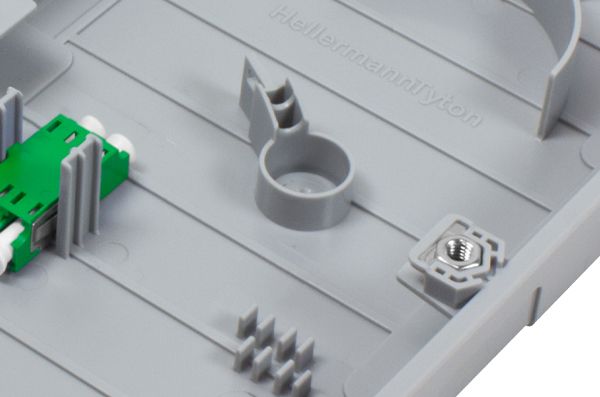

  •   Through the wall capability

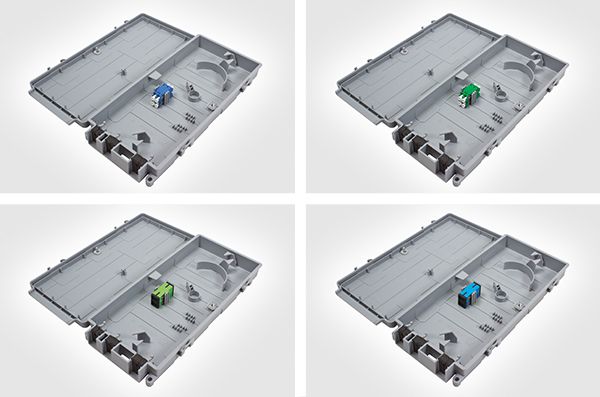

  •   2 SC SX / LC DX customer connections

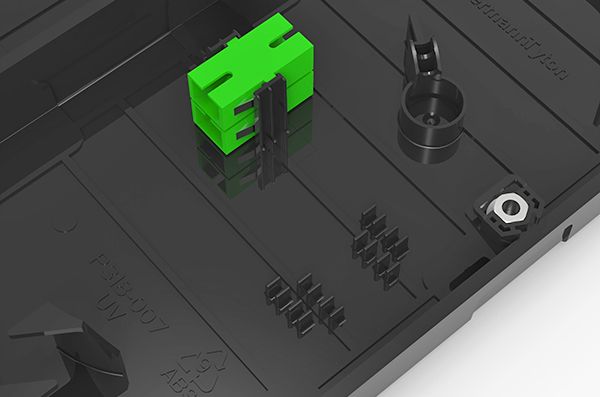

  •   4 3A splice connections
  •   Positive fibre management (30mm minimum bend radius)

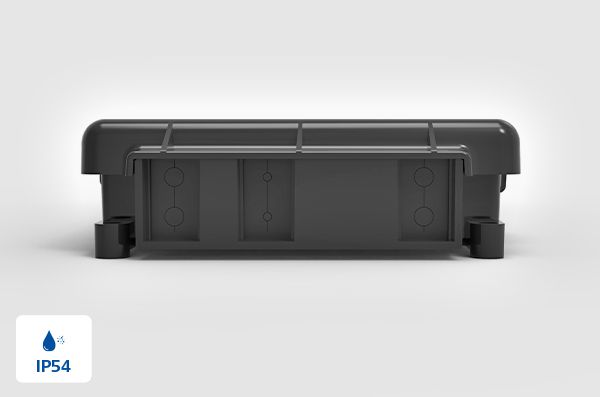

  •   IP54 rating
  •   Loop through facility
  •   Low Profile

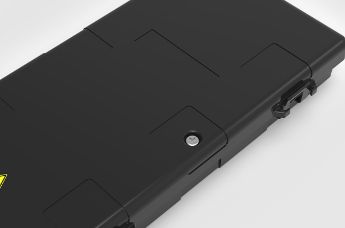

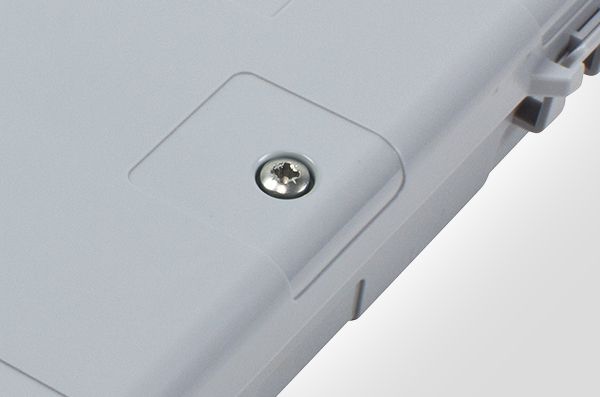

  •   Tamper-proof fitting - captive screw and nut
