HTC Fibre Modules

View in 3D

View this product in our interactive viewer

You can spin around (swipe or click and hold left hand mouse button), zoom in (pinch fingers or rollerball on your mouse) and open the lid/tray by clicking on the top navigation buttons.

Introduction

The HTC Series Fibre Modules are designed for Fibre to the Desk (FTTD) applications and are available in industry standard Euro 50x25mm or LJ6C 38.5x25mm footprints. The modules are produced from the same HTC Series Keystone jack modules in order to offer consistent aesthetics when installed.

The fibre modules are without shutter and come pre-loaded with the fibre adaptor. All fibre adaptors are transported with dust caps.

The Euro fibre module is compatible with the HTC-Series faceplates. The LJ6C Fibre module is compatible with HTC Series 6C faceplates and the HellermannTyton POD.

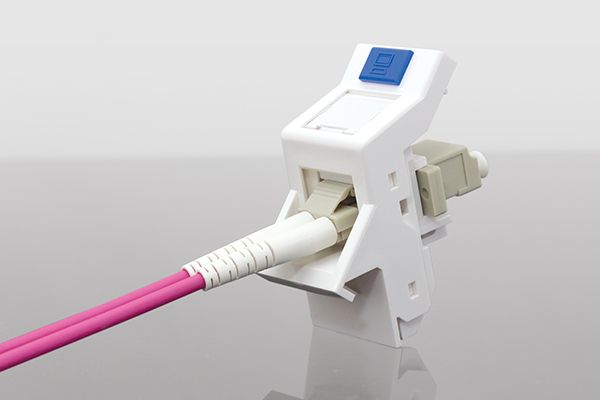

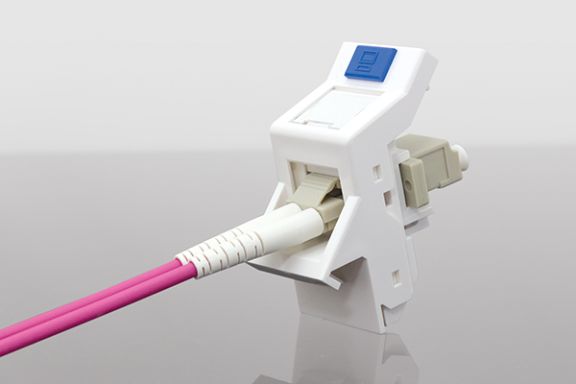

Features and Benefits of fibre modules

Available in Euro 50x25mm
Available in LJ6C 38.5x25mm
Available pre-loaded with Fibre Adaptors
LC duplex, SC Simplex in multimode or singlemode
Fibre Adaptors include dust caps
Identification / label area
Consistent design with HTC Series Keystone Modules
Compatible with HTC Series mounting hardware
Made from ABS
Plastic free packaging
Bulk packed to reduce carbon footprint

Downloads and links

HTC Fibre Modules - Datasheet

PDF, 0.47 MB

Zone Cabling Brochure - Brochure

PDF, 7.43 MB
