4U Distribution Chassis
Art.-No. 859-30053 | RNA6UXX-PD4UCN-XX.XX Details

  • Fits into standard 19” racks and cabinets

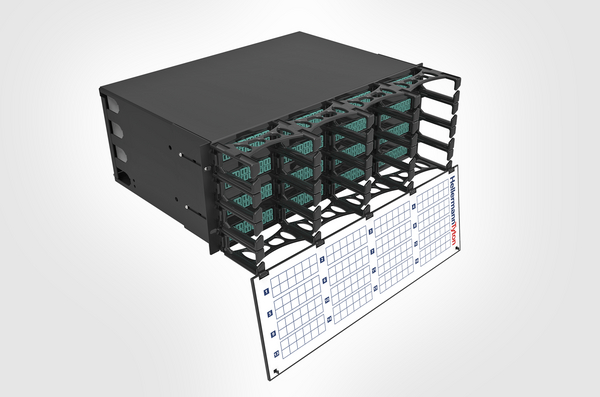

  • 4U of vertical space can accommodate up to16 RapidNet cassettes
  • Maximum of 2,304 fibres or 96 copper ports per chassis

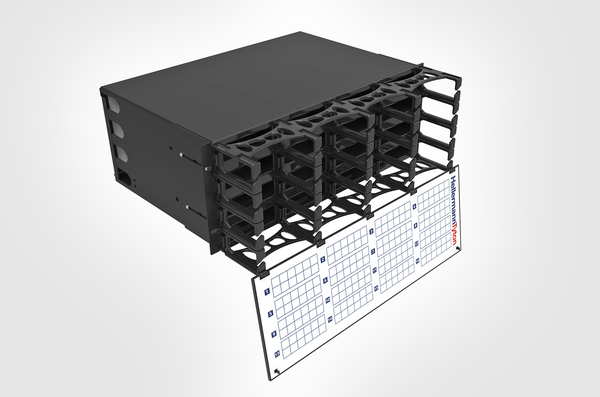

  • Hinged front and rear doors
  • Front and rear labelling for port/loom identification
  • Front and rear cable management
  • Adjustable mounting brackets to aid positioning within the rack or cabinet
Show more
Colour Black (BK)
Local order number RNA6UXX-PD4UCN-XX.XX
Material Metal (MET)
PART DESCRIPTION RNA6UXX-PD4UCN-XX.XX
Pack Cont. 1pc.
Package Content packed in pack

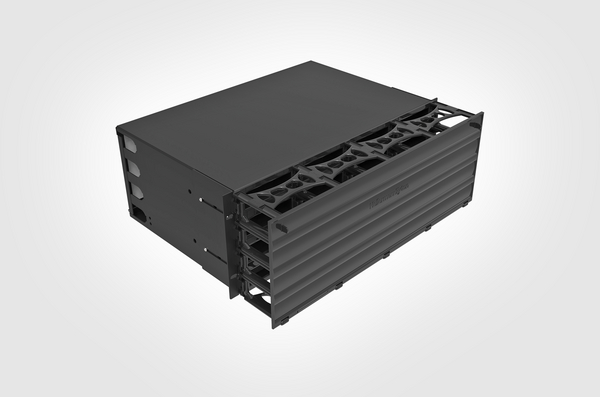

Product Description The HellermannTyton 4U Distribution Chassis is designed for use with the RapidNet pre-terminated solution. The 4U panel accommodates up to 16 RapidNet cassettes covering a range of density requirements from high density 2,304 fibre MTP connections, standard density 384 fibre LC connections or 96 copper ports. The chassis has integrated front and rear cable management for patch cords, trunks and back bone cables with 8 side cable entry points each with a separate anchor point. The chassis is fitted with hinged front and rear doors with dedicated labelling fields for simple port and RapidNet loom identification. The front door can be removed to provide ease of access during initial implementation and installation. Sliding mounting brackets are supplied to allow forward and backward movement to suit the mounting post position within the rack or cabinet.
Product Family 4U Distribution Chassis
Product Group RapidNet Accessories
Short Description 4U Distribution Chassis

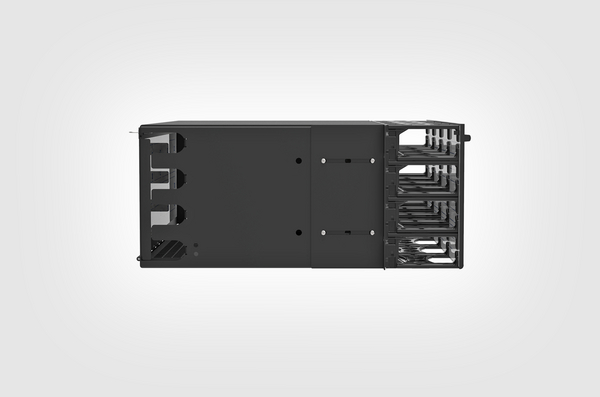

Technical Description The RapidNet 4U Distribution Chassis is manufactured from 1.5mm powder coated mild steel and the doors and cable management are manufactured from polycarbonate making a rigid and robust panel. The front and rear doors are supplied with a white re-useable label which provides clear identification enabling simple port and RapidNet loom identification.
Type RNA6UXX-PD4UCN-XX.XX
Variant Modular Panels

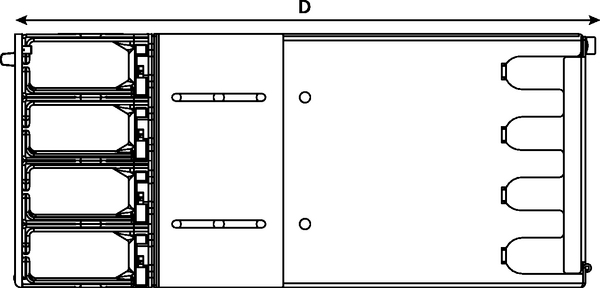

Depth (D) 401mm

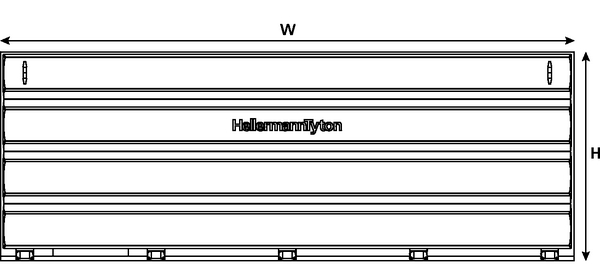

Height (H) 176mm
Width (W) 483mm
CE Certification No
CSA Certified No
ROHS compliant No
UV-Stabilised No
Country of Origin GB

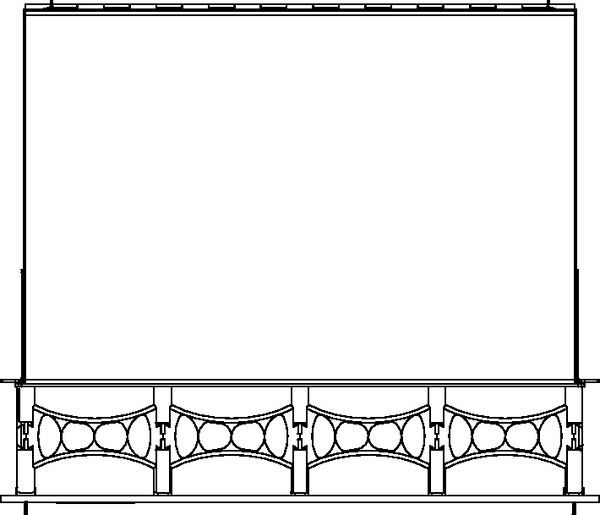

Dimensions W x H x D 483 mm x 176 mm x 401 mm
GTIN-13 / EAN 5022660115325
UNSPSC Key 43223306
