Microduct Systems: HellermannTyton's fully integrated system of speedpipe microducts

Microduct Systems

A complete end to end micro duct system with products that lend themselves to the all in one solution.  This includes a wide range of fittings for sealing and fixing all dimensions of ducts and variants of bundles as well as general fittings and split ducts. All products comply with relevant industry standards (and more).

SpeedPipe

The SpeedPipe Solution (SPS) offers a comprehensive range of ducts and fitting options for direct buried (DB) and direct installed (DI) applications ranging from single microducts and subduct to more complex duct bundles for different network applications.

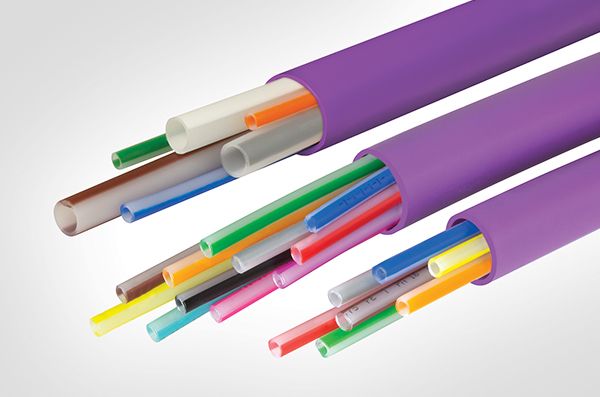

Direct Install SRV - SpeedPipe Bundles

Direct Install SRV - SpeedPipe Bundles

Direct Buried

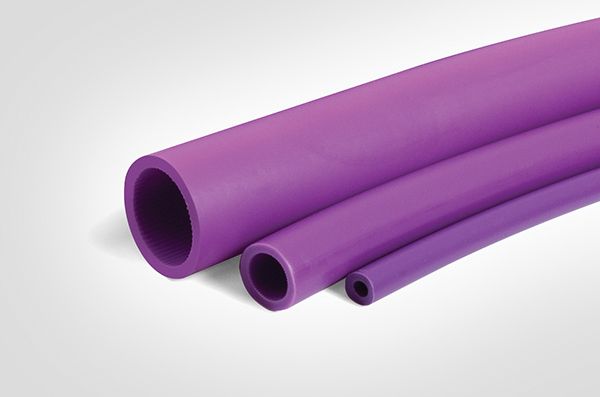

SP-G - SpeedPipe Ground Single

Direct Buried / Thick Walled / HDPE

SpeedPipe Ground (SP-G) is a thick-walled duct manufactured using high quality HDPE material for direct buried (DB) applications.
The SP-G duct is available in a variety of different sizes to suit different air blown fibre cables, offering compatible end to end air blown ducted solutions.

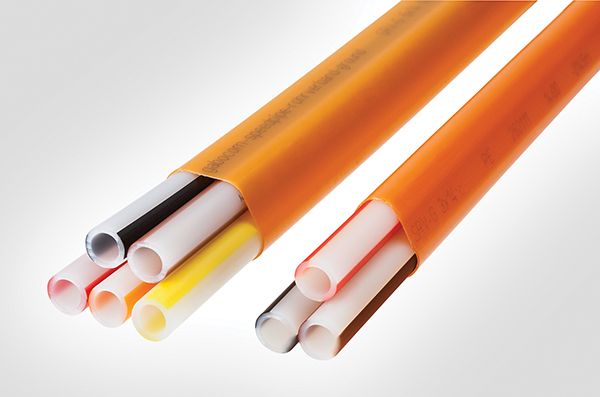

SRV-G tc - SpeedPipe Ground Bundles

 SpeedPipe Ground tube bundles (SRV-G) are a thick-walled duct manufactured from high quality HDPE material for Direct Buried (DB) applications which include, mole ploughing, open trench, slot cutting (Incl. narrow and micro trenching).

The SRV-G tube bundles are available in a variety of different sizes and can be mixed to create a combination of ducts to suit different network requirements.
To offer compatible end to end air blown ducted solutions, we manufacture our own in-house range of connecting and sealing elements.

Direct Install PIA

SP - SpeedPipe Single

Direct Installed / Thin Wall / HDPE

SpeedPipe (SP) is a thin-walled duct manufactured from high quality HDPE material for direct installed (DI) applications into a primary duct network.
The SP is available in a variety of different sizes to suit different air blown fibre cables.

SRV - SpeedPipe Bundles

SpeedPipe tube bundle (SRV) is a thin-walled duct bundle manufactured from high quality HDPE material for Direct Installed (DI) applications into a primary duct network.

The SRV tube bundles are available in a variety of different sizes and can be mixed to create a combination of ducts to suit different network requirements. To offer a compatible end to end air blown ducted solution, we manufacture our own in-house range of connecting and sealing elements.

Connecting Elements

Our numerous fitting accessories for all our speedpipe dimensions and bundles offer you the full-service package in the matter of fibre optic up to the building.

Whether subduct solution or direct burying: only with suitable sealing, fixing and connecting elements your microduct system also is used on the long term - and you remain flexible in fibres occupation.

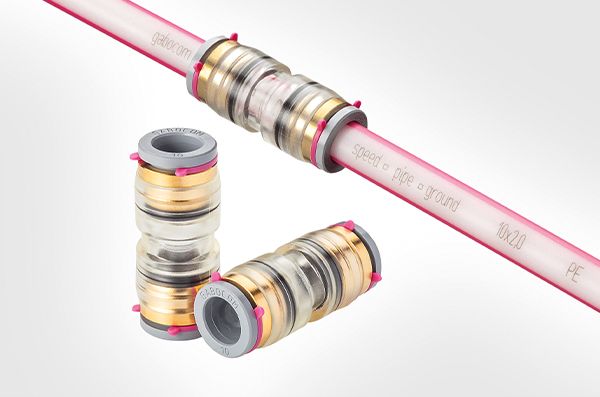

DSM - Transparent Straight Connector

Our in-house range of transparent straight connectors (DSM) are suitable for direct buried applications and provide a perfect fit to the corresponding SpeedPipe duct. The transparent straight connector provides clear visibility to ensure both duct ends are connected to allow a smooth transition from one duct end to another as the fibre cable travels through. The DSM’s are available in variety of different size’s to suit the corresponding SpeedPipe duct.

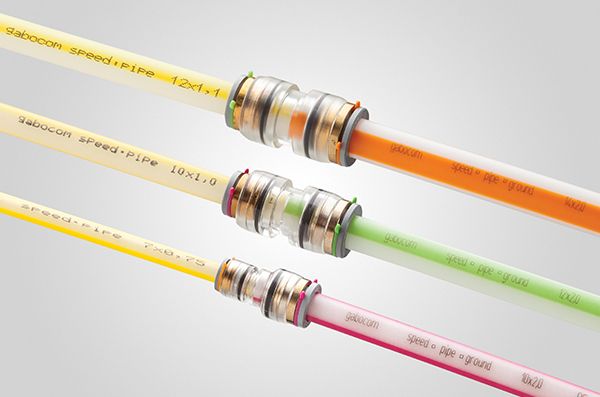

RSM - Transparent Reducers

Our in-house range of transparent reducers (RSM) are suitable for direct buried applications and provide a perfect connection to the corresponding
SpeedPipe size ducts. The transparent reducers provides clear visibility to ensure both duct ends are connected to allow a smooth transition from one duct end to another as the fibre cable travels through. The RSM’s are available in variety of different sizes to suit the corresponding SpeedPipe duct.

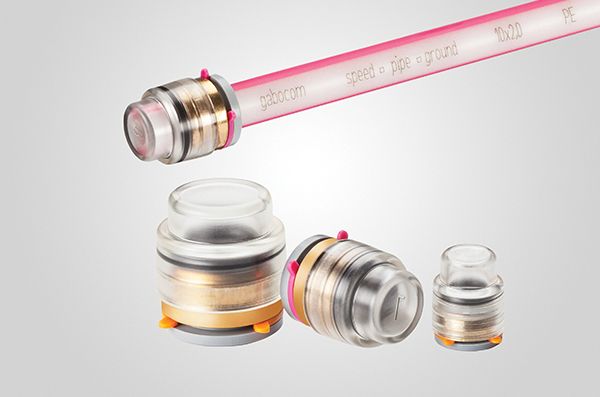

ES - Transparent End Caps

Our in-house range of transparent end caps (ES) which are suitable for direct buried applications and provide a perfect fit to the corresponding SpeedPipe duct. The end caps are used for closing SpeedPipe against dirt, gas and water up to 0.5 bar and beyond. They are resistant to tensile stressing and can be easily and installed and disconnect.

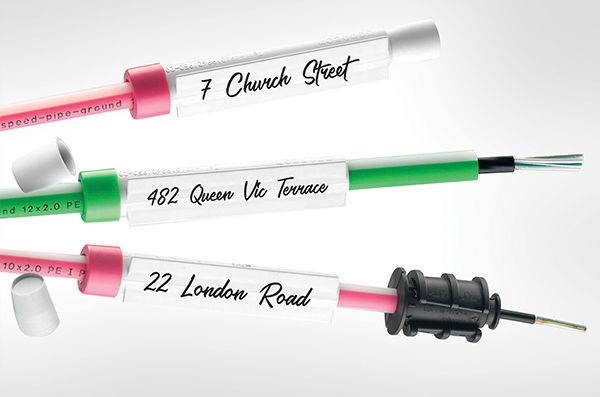

KmR - End Cap and Marker

The KmR was designed to enable network operators to seal off an open-ended duct against gas, water and dirt, which can act as marker label. The KmR is suitable for direct buried applications and can be easily installed. KmR’s are available in variety of different sizes to suit the corresponding SpeedPipe ducts.

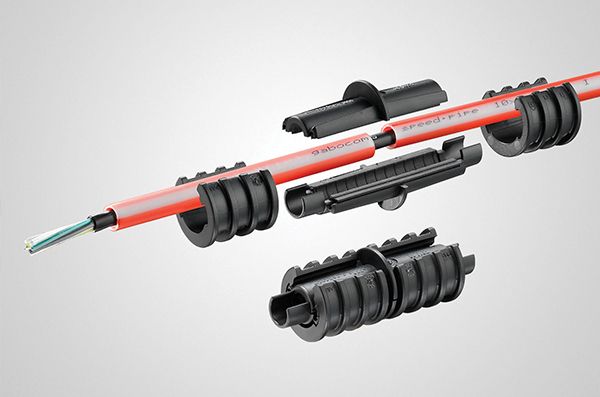

EBM - Inline Seal

The divisible EBM seal has been designed to seal damaged duct which is occupied with a fibre optic cable without having to reinstate the duct. The EBM is suitable for direct buried application and can be easily installed. EBM’s are available in variety of different sizes to suit the  corresponding SpeedPipe duct.

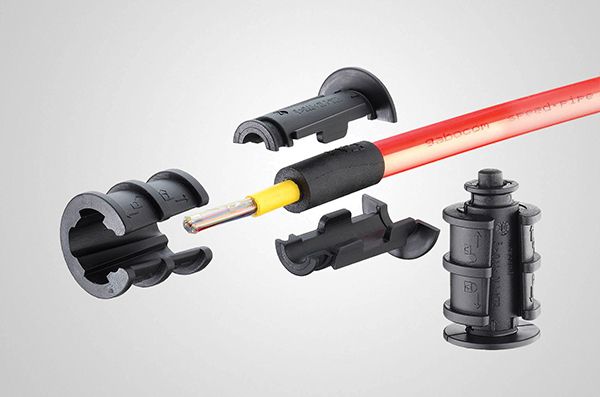

EZA-t - Gas/Cable seal

The divisible EZA-t cable/gas seal has been designed as a duct and cable seal with a safety function all in one product. It seals all cables sizes within a microduct to the same standards. The EZA-t is suitable for direct buried applications and can be easily installed. The EZA-t seals are available in a variety of different sizes each supporting different internal seals for different cable sizes.

Indoor

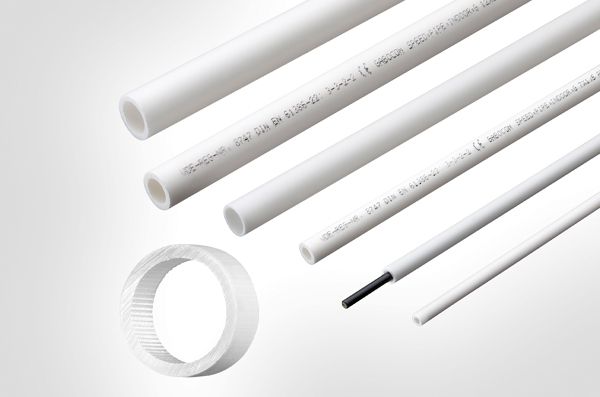

SpeedPipe Indoor Duct

Our indoor ducted solutions (SP-I) have been specially designed for an in-building air blown application. Manufactured from special low smoke fire hazard material, the SP-I products range conforms to international standards.

The SP-I is available in a variety of different sizes to suit different air blown fibre cables. SpeedPipe Indoor duct is complimented with a range of in-house manufactured connecting and sealing elements to offer a fully engineered, end-to-end solution.

House Lead-in Kit

The HEO lead-in kit has been designed to enable network operators to transition and gas seal (with the optional EMB-GS) an air blown customer drop lead from an external to an internal duct without the need for an external enclosure.

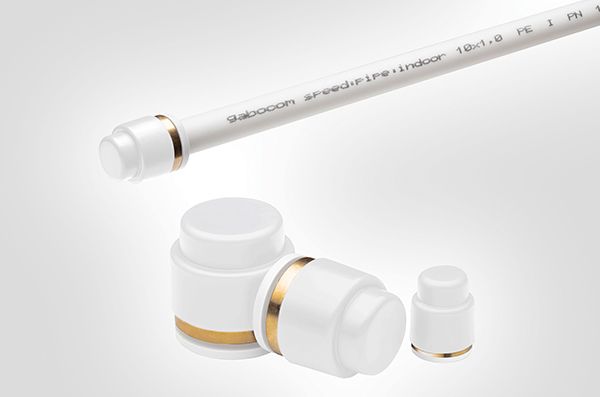

ES - Indoor LFH End Caps

Our in-house range of indoor LHF end caps (ES) are suitable for internal air blown cable application and provide a perfect fit to the corresponding LFH indoor SpeedPipe duct. The end caps ES are used for closing SpeedPipe against dirt, gas and water up to 0.5 bar and beyond. They are resistant to tensile stressing and can be easily and installed and disengage.

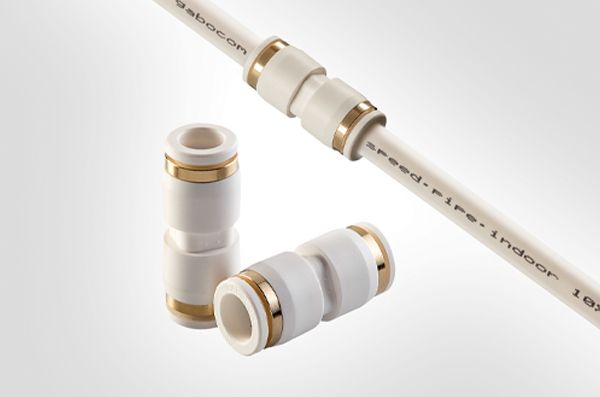

DSM - Indoor LFH Straight Connector

Our in-house range of indoor LHF straight connectors (DSM) are suitable for internal air blown cable applications and provide a perfect fit to the corresponding LFH indoor duct. The internal construction of the straight connector ensures both duct ends are connected, allowing a smooth transition from one duct end to another as the fibre cable travels through. The LFH DSM’s are available in variety of different size’s to suit the corresponding indoor LFH duct.

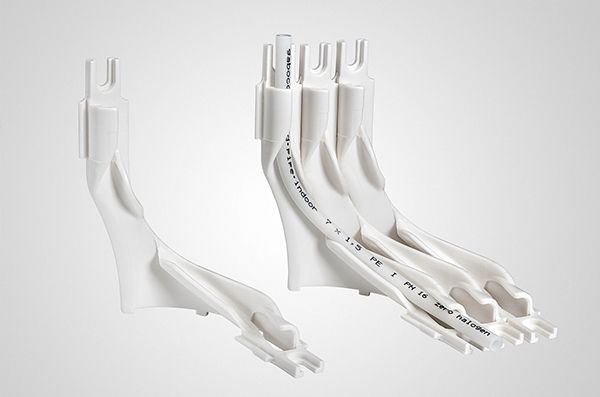

IB Indoor Bend Managers

The indoor LFH Indoor Bend manager has been designed to safely guide LFH indoor SpeedPipe round 90-degree bends preventing the indoor duct from kinking. The indoor bend managers are stackable enabling multiple indoor LFH SpeedPipes to be guided round tight corners.

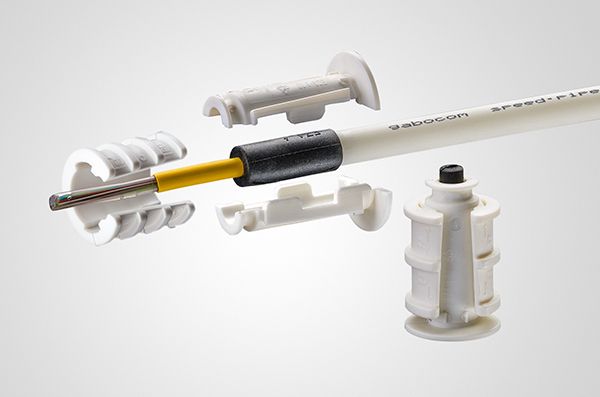

EZA-t - Indoor Gas/Cable Seal

The indivisible indoor LFH EZA-t cable/gas seal has been designed as duct and cable seal with a safety function all in one product. It seals all cables sizes within a microduct to the same standards. It included and overpressure >10 bar relief value.

The EZA-t is suitable for indoor air blown fibre cable applications, can be easily installed and is reusable. The indoor LFH EZA-t seals are available in a variety of different sizes each supporting different internal seals for different cable sizes.

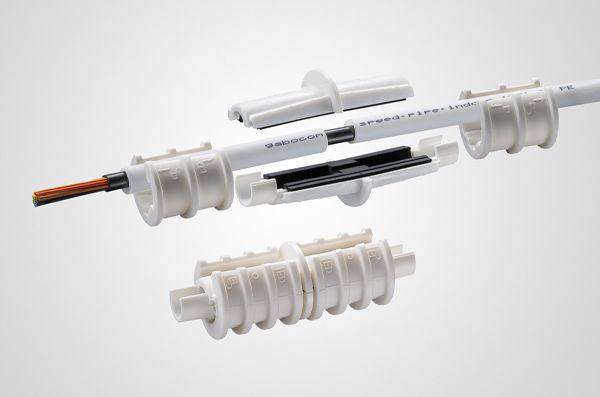

EBM-GS - Indoor Inline Gas / Cable Seal

The divisible indoor LFH EBM-GS seal has been designed to gas seal a fibre cable transitioning between two open end ducts without the need of an external enclosure. The indoor LFH EBM-GS is suitable for indoor applications and can be easily installed. The EBM-GS are available in variety of different size’s to suit the corresponding indoor LFH ducts

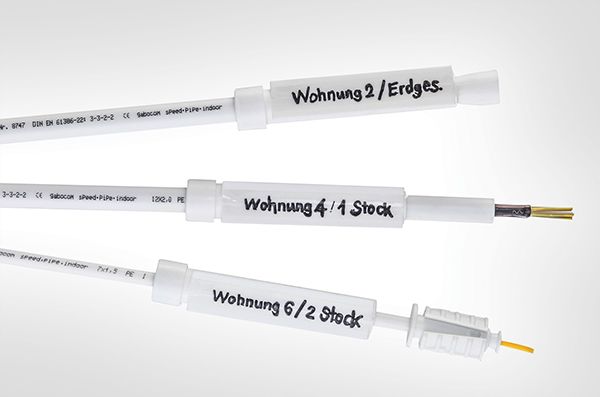

KmR - Indoor End Cap and Marker

The indoor LFH KmR was designed to enable network operator to seal off an open-ended duct against dirt, gas and water, and can act as marker label. The indoor LFH KmR is suitable for indoor blown fibre optical cable applications and can be easily installed. KmR’s are available in variety of different size’s to suit the corresponding indoor LFH ducts.
