RapidNet CLASSIC - Pre-terminated Copper and Fibre Systems

RapidNet CLASSIC

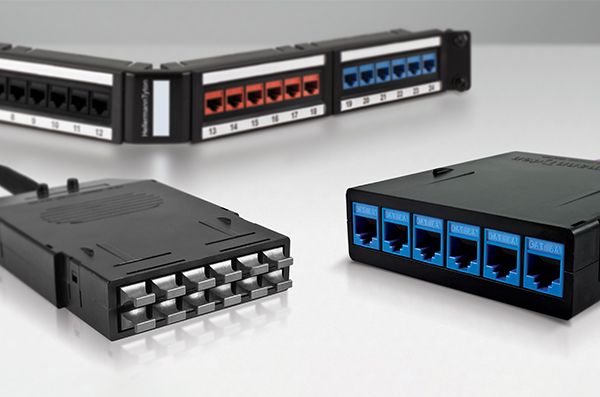

What is RapidNet CLASSIC?

The Classic pre-terminated solution delivers high performance across all formats including Category 6A and Category 6 in copper and OM4, OM3, OS2 and OS1 in fibre.

The Category 6A and fibre solutions will support high speed 10G networks and beyond.

High port densities can be achieved using RapidNet fibre, with MTP connectors providing up to 144 fibres per cassette or up to 576 fibres in 1U of rack space.

Key product range

RapidNet Copper

RapidNet Fibre

Accessories

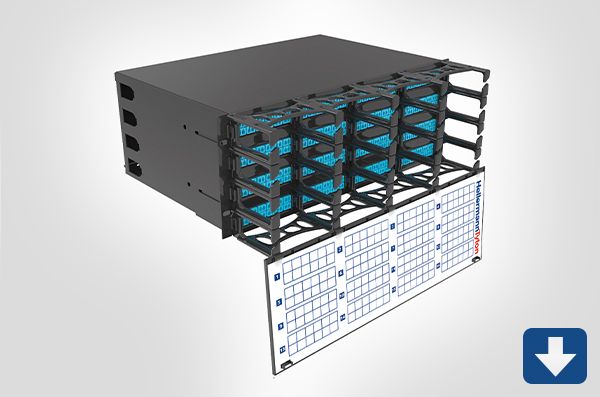

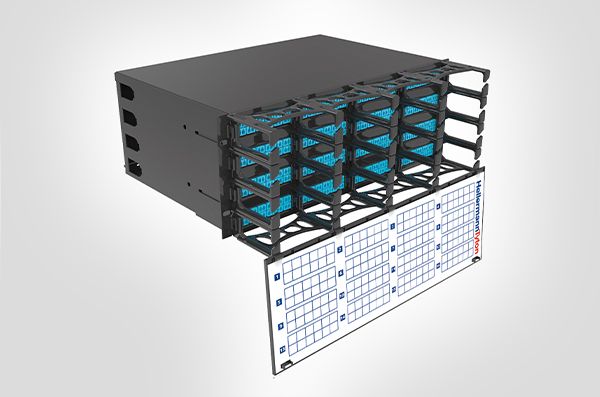

4U Distribution Chassis

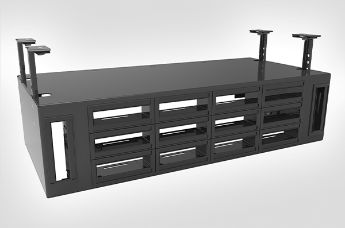

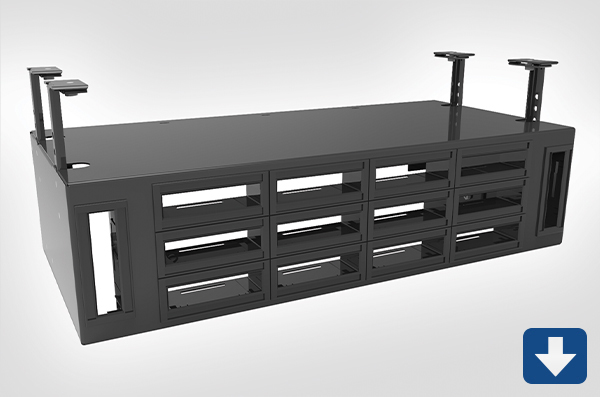

Out Of Rack

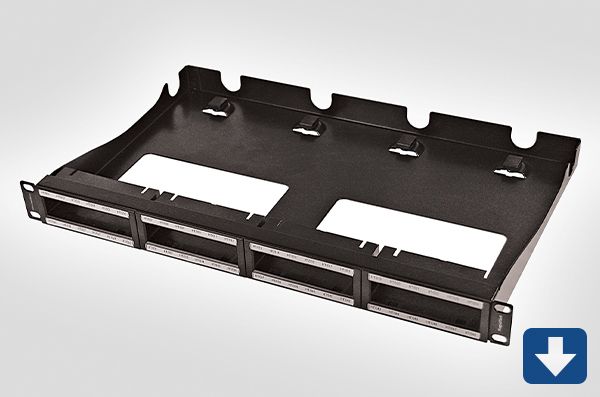

Rear Cable Management Panel

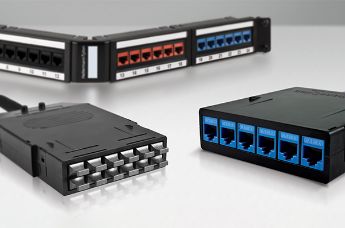

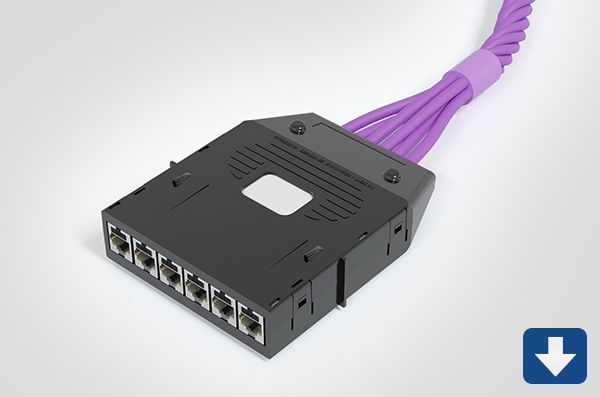

RapidNet Pre-terminated Copper

HellermannTyton's RapidNet pre-terminated copper systems offer options and flexibility to any network cabling infrastructure project. Available in Category 6A and Category 6, HellermannTyton are able to supply pre-terminated copper RapidNet in 12-port, 6-port and 4-port cassettes.

Pre-terminated copper solutions offer the installer or end user a great deal of choice and flexibility at both the cassette end and the ‘second end’.

“The network infrastructure on a project of this scale and importance is absolutely critical.” Tom Mahoney, Sky

Read about HellermannTytons project with Sky Studios Elstree RapidNet Classic Cat6A here.

6 port
The 6 port RapidNet cassette comes in a standard format with 4 cassettes fitting into the RapidNet panel. The standard panel accommodates all UTP Category 6A and Category 6 cassettes with a separate panel available for the 6 port shielded solutions. Both UTP and FTP Category 6A solutions exceed industry standards performance criteria to support a 10G network. The UTP Category 6A system is available in a range of different coloured jack variations as standard, allowing for network segregation.

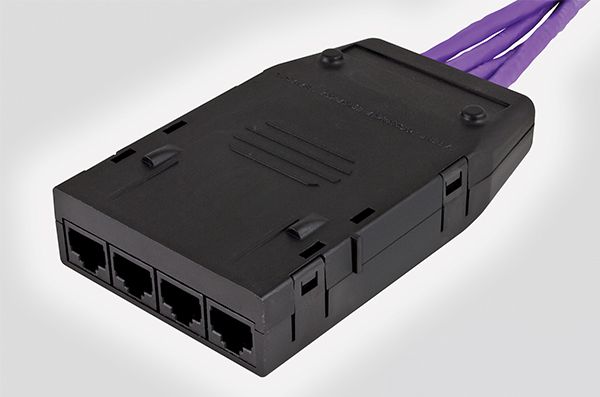

4 port
Available in Category 6, the 4 port cassette comes with its own RapidNet panel providing 24 ports in 1U of space. The 4 port cassette provides an ideal solution for work area and ‘to the desk’ applications in most commercial office and educational environments.

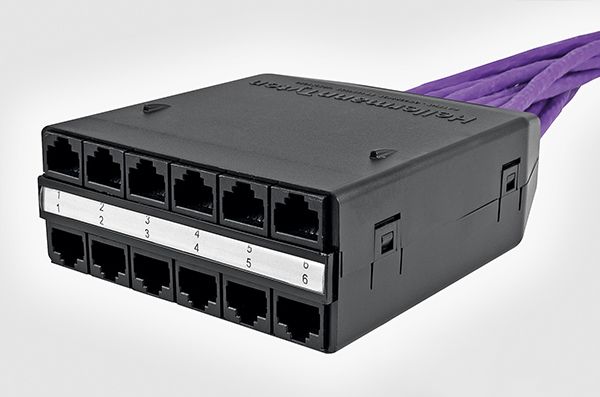

12 port
The 12 port cassette is RapidNet’s high density solution, presenting 48 ports in 1U of rack space. Available in Category 6, the 12 port cassette provides an ‘on-board’ magnified port labelling field and comes with its own RapidNet panel to accommodate the larger cassette footprint. The 12 port cassette is also compatible with the Hybrid RapidNet panel, providing a combination of copper and fibre connectivity in 1U of space.

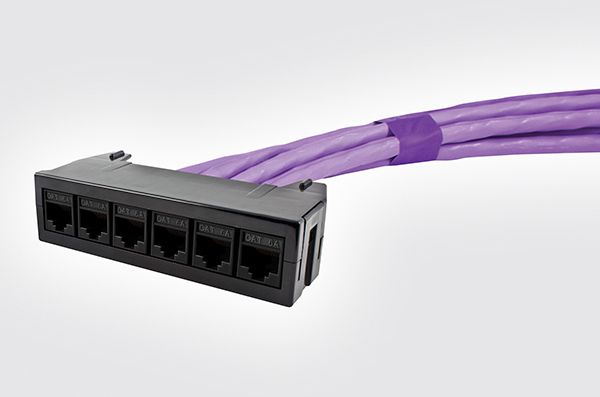

Short body
Specifically designed to be used with the angled RapidNet panel but also fully compatible with standard RapidNet panels and accessories, the Short Body RapidNet range is available in Category 6A and Category 6 providing 6 RJ45 ports per cassette or 24 ports in 1U.

Second End Options

While a RapidNet cassette to cassette assembly is most commonly used in cabinet to cabinet and data centre applications, the RapidNet range offers additional flexibility with a host of other ‘second end’ possibilities.

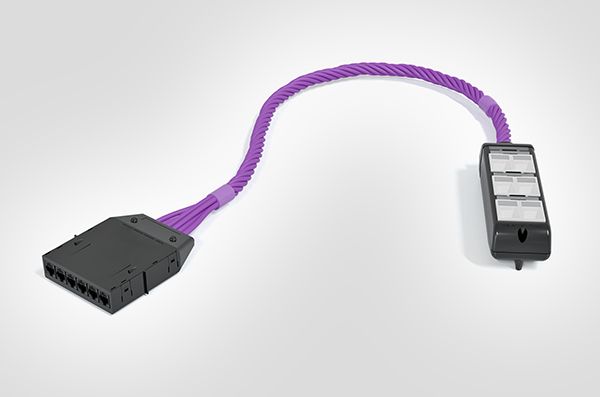

Cassette to POD
The cassette to pod option supports ‘to the desk’ and work area installations in a variety of commercial environments including offices, trading floors and schools. The pod can be mounted to the desk, snapped into a floor box or used beneath a raised floor or in the ceiling void as a consolidation point.

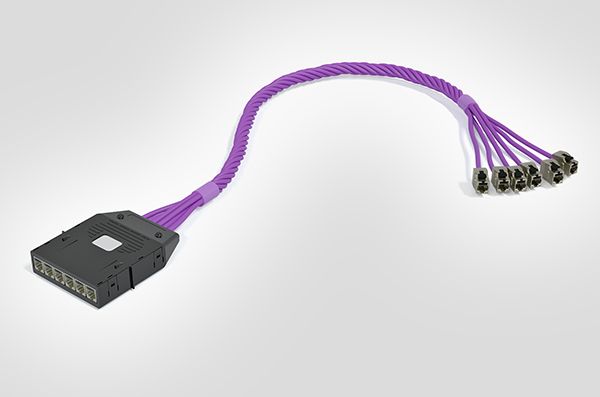

Cassette to Keystone Jack
The cassette to jack is designed for work area applications where the jacks can be easily fitted into a selection of modules that can be used in floor boxes or wall mounted in face plates. The Category 6A GST UTP keystone jacks are available in several standard colours with the same colour jack being used at the cassette end.

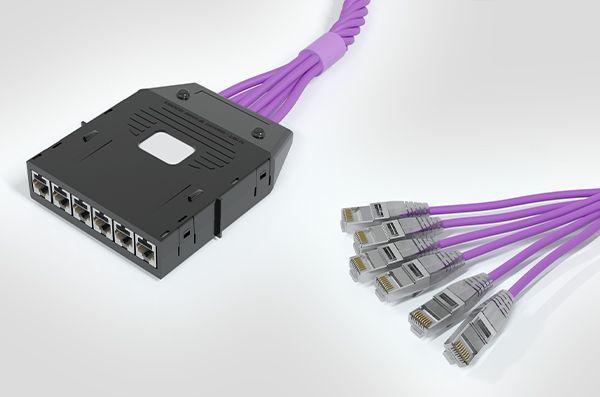

Cassette to RJ45
The cassette to RJ45 plug fan out can be used as a full cross-connect solution between cabinet and hardware, reducing the risk of damage to the ports on expensive active equipment. When used for server connectivity it simplifies the management of connections to each unit without accessing the rear of the data cabinets. The 6 RJ45 plugs are manufactured to a uniform length or can be supplied in staggered lengths to allow for effective cable management.

Cassette to Bare End
The cassette to bare end provides flexibility during installation. This option is used in projects where space between rooms is limited or lengths are uncertain at the planning stage. The bare end can then be terminated on site to a range of outlets and panels available from HellermannTyton.

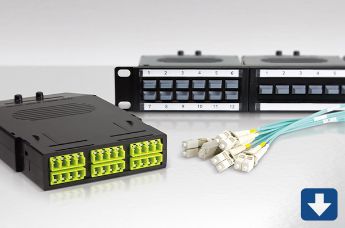

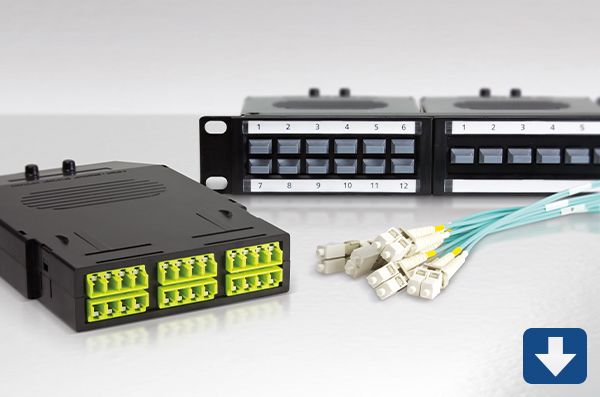

RapidNet Pre-terminated Fibre

The extensive RapidNet fibre range from HellermannTyton has developed with the increasing demands of high performance, high speed networks and data centres. Available in OM5, OM4, OM3 and OS2, RapidNet fibre provides a number of connectivity options, including MTP, LC and SC cassettes.

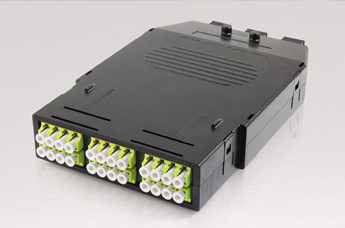

LC and SC Cassettes
The standard RapidNet LC and SC cassettes offer a range of options including single mode or multimode, 8, 12, 16 or 24 ports in LC and 6 or 12 ports in SC formats. The cassettes also provide 2 options for the rear of the cassette; a terminated cable with a strain relieving boot or with MTP connectors, to allow the use of 8, 12 or 24 core MTP backbone cables.

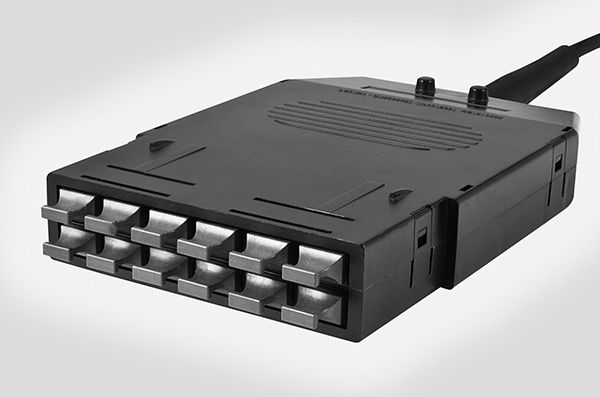

MTP Cassettes
RapidNet is available with 3, 6 or 12 MTP ports presented on the front of the cassette. The MTP connector can be supplied as either 8, 12 or 24 core with, for example, 6 x 24 core connectors or 12 x 12 core connectors, enabling a maximum of 144 fibres in a single cassette, or 576 fibres in a 1U RapidNet panel.

Second End Options

All pre-terminated fibre cassettes are manufactured with LS0H cable which is secured in the cassette with internal strain relief and a rubber boot, preventing damage to the fibre when pulled or snagged. RapidNet fibre cassettes can also be supplied with MTP connectors on the rear. For these RapidNet cassettes HellermannTyton supply a range of MTP backbone cables as well as MTP to fan out assemblies in both LC and SC formats.

The RapidNet fibre range can be manufactured with a pre-terminated fibre fan out on the ‘second end’ of the cassette. Using a protective manifold, HellermannTyton are able to supply the RapidNet cassette to fibre fan out assemblies with MTP, LC and SC connectors, allowing for high density patching or inter-connectivity with active hardware.

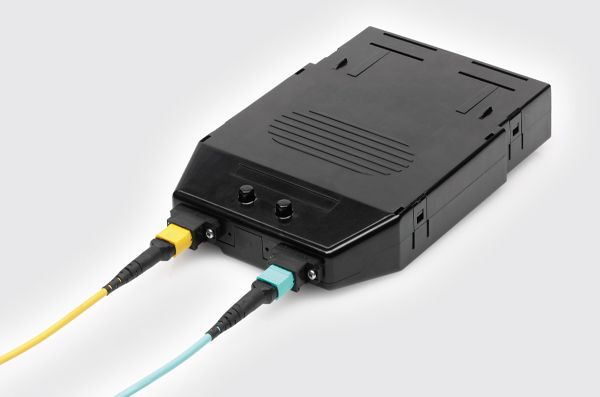

Cassette to MTP Backbone
Fibre cassettes provide 2 options for the rear of the cassette; a terminated cable with a strain relieving boot or with MTP connectors, to allow the use of 8, 12 or 24 core MTP backbone cables. MTP Back-Bone cables are pre-terminated and pre-tested ensuring the highest performance. The MTP Connector is the low loss Elite® Connector from US Conec and is compatible with all RapidNet MTP Cassettes. The MTP Back-Bone cable can be used for high density patching between two MTP ports and is particularly suited to applications where space is limited.

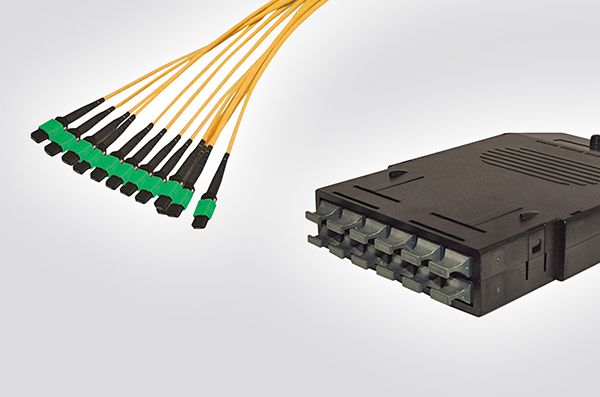

Cassette to MTP Fan Out
The Cassette to MTP fan out presents either 6 x 24 core MTP connectors or 12 x 12 core MTP connectors in the front of the cassette, terminated to a 144 core fibre cable. The fibre cable is separated out in a high quality manifold connecting to an MTP fan out to correspond with the cassette presentation of 6 or 12 MTP connectors.

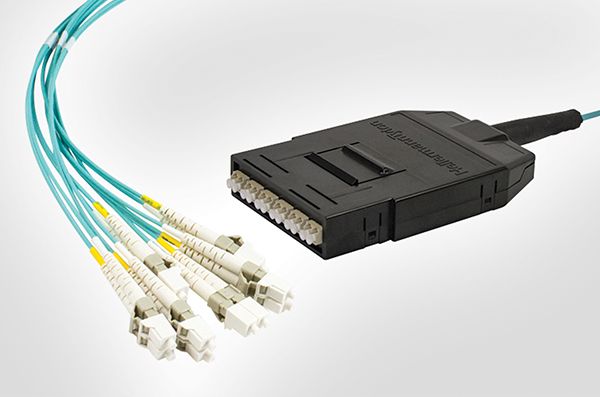

Cassette to LC or SC Fan Out
The Cassette to MTP fan out presents either 6 x 24 core MTP connectors or 12 x 12 core MTP connectors in the front of the cassette, terminated to a 144 core fibre cable. The fibre cable is separated out in a high quality manifold connecting to an MTP fan out to correspond with the cassette presentation of 6 or 12 MTP connectors.

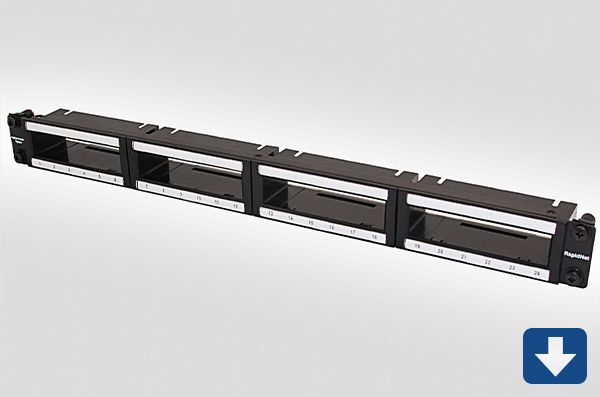

Pre-terminated Accessories

Pre-terminated Options and Accessories

The RapidNet pre-terminated system offers a great deal of connectivity flexibility across both fibre and copper ranges. To enhance this flexibility and meet the demands of installers and the various applications using pre-terminated RapidNet, HellermannTyton have developed a number of patch panel and cable management solutions that compliment the RapidNet range.

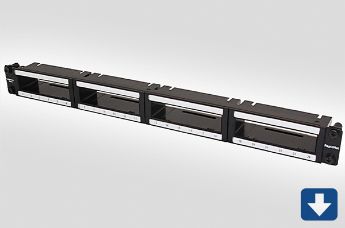

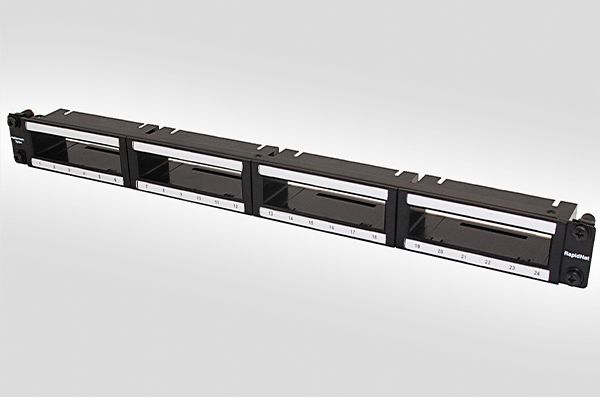

6 Port Copper/Fibre RapidNet Panel
This RapidNet patch panel accommodates four category 6 copper 6-port cassettes and the full range of MTP, LC and SC fibre cassettes. The RapidNet cassettes simply push into the panel, snapping in place with a push down clip. The panel comes with dual, magnified labelling fields.

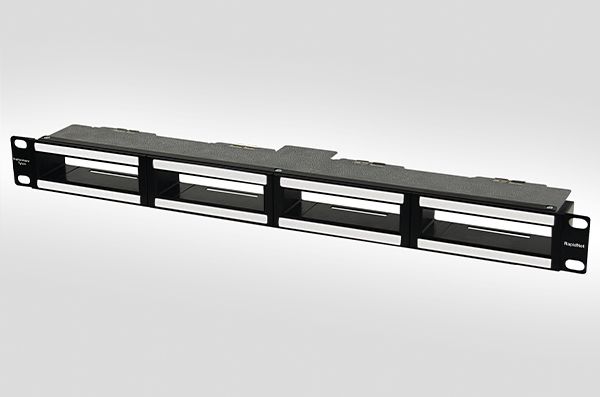

6 Port Shielded RapidNet Panel
This RapidNet patch panel accommodates four shielded Category 6A or Category 6 copper cassettes. The shielded panel is constructed with a metal shielding plate with three earthing anchor points. The RapidNet cassettes push into the panels, snapping into place with a push down clip. The RapidNet panel is supplied with dual magnified labelling fields.

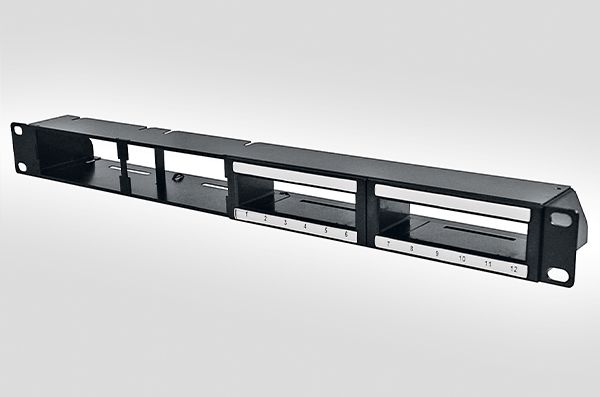

RapidNet Hybrid Panel
The 1U RapidNet Hybrid Panel provides a simple 'Mix and Match' approach for both copper and ﬁbre RapidNet. The panel offers capacity for the equivalent of 1U of ﬁbre and 1U of copper in 1U of rack space, giving a saving of 1U of space each time the panel is used.

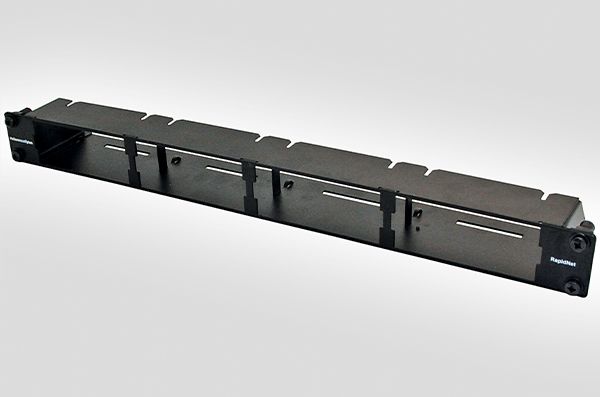

12 Port RapidNet Panel
The 12 port RapidNet patch panel accommodates four 12 port copper cassettes, with labelling fields presented on the actual cassette itself. The RapidNet cassettes simply push into the panels with a push down clip. A fully loaded panel presents 48 category 6 RJ45 ports.

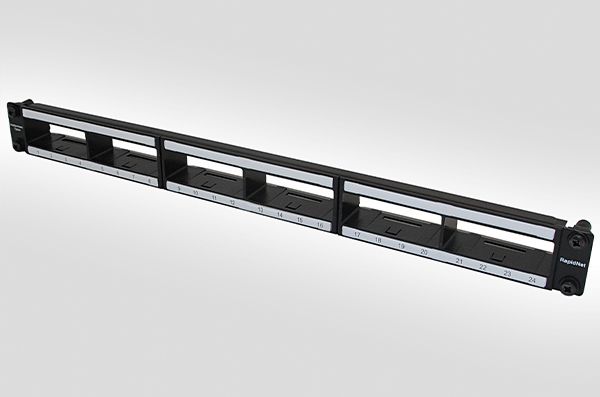

4 Port RapidNet Panel
The 4 port RapidNet patch panel accommodates six 4 port Category 6 copper cassettes. The RapidNet cassettes push into the panel, snapping in with a push down clip. The RapidNet panel comes with dual, magnified labelling fields.

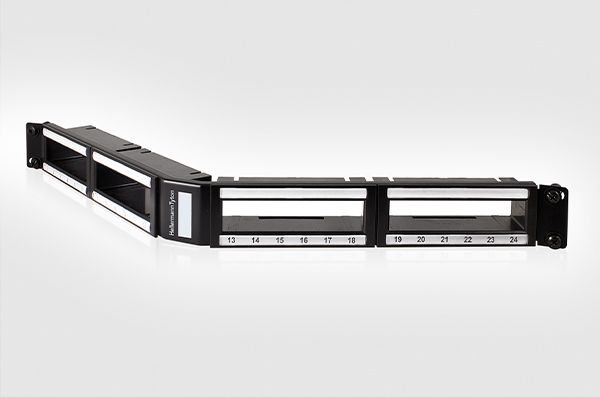

RapidNet Angled Panels
Using the short body RapidNet cassette with the angled panel offers a high density solution as it removes the need for horizontal patch cord management. Available in 1U and 2U, the angled panel reduces the bend radius for both front patch cords and rear permanent link cables.
