Clamp for Aerial Drop Cable
Art.-No. 857-40819
| ADC-CLAMP-3-4MM
|
Copied
- Simple, fast and toolless installation
- Installs directly on the pole hardware with a minimum 10mm
- diameter eye or pigtail type.
- Self-tightening cable grip
- Opening bail and integrated cable tie for direct installation
- UV Rated Thermoplastic
- Maximum tension load 1200N
- Meets the following standards:
- - EN C-20-540 Climate age test
- - NF EN 50289-3-13 (August 2003)
Show more
Show less
More products in this product group:
| Colour | Black (BK) |
| PART DESCRIPTION | ADC-CLAMP-3-4MM |
| Product Family | 3-4mm |
| Product Group | Clamp for Aerial Drop Cable |
| Short Description | Clamp for Aerial Drop Cable |
| Technical Description |

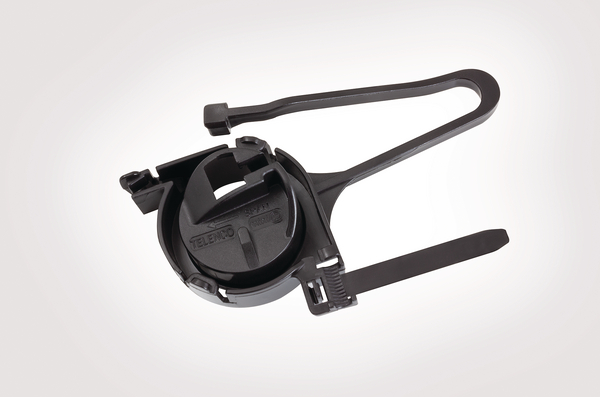

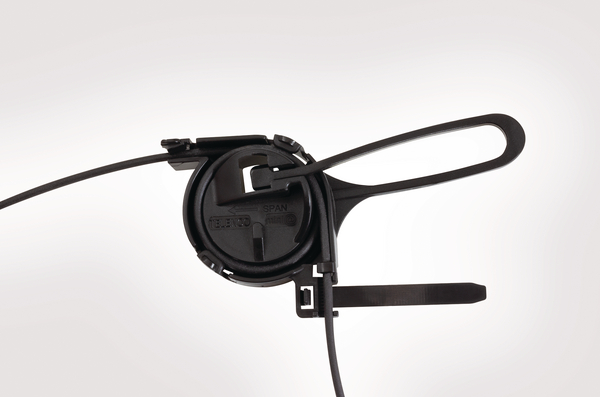

An aerial fibre optic cable clamp used for securing 3 to 4mm aerial round drop cable where spans should not exceed 70m. It has been designed to manage round optical drop cables with no strength member in their outer sheath construction. The compact clamp has a mandrel shaped body enabling the roll up and self-tightening of the cable. It includes an opening bail and integrated cable tie for direct installation onto pole fittings. The clamp can be secured onto a wide range of open or closed hardware with a minimum 10mm diameter. |
| Type | ADC-CLAMP-3-4MM |
