Clamp for Aerial Drop Cable
Art.-No. 857-41345
| ADC-CLAMP-5/35
|
Copied
- Single-piece, cost-efficient design
- Simple, fast and toolless installation
- Effective cable grip by simply sliding the wedge
- Manual adjustment of the cable sag by blocking
- the wedge backwards
- Installs directly on pole hardware with ⌀ 10mm min,
- eye or pigtail type
Show more
Show less
More products in this product group:
| Colour | Black (BK) |
| PART DESCRIPTION | ADC-CLAMP-5/35 |
| Product Family | 2.5 - 5mm |
| Product Group | Wedge Clamp for Aerial Drop Cable |
| Short Description | Clamp for Aerial Drop Cable |

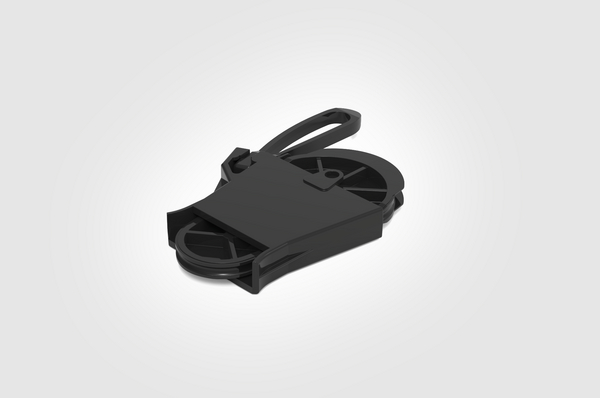

| Technical Description | 5/35 FTTH R drop wedge clamp is PIA compliant and enables the dead-ending of round optical cables deployed on distribution networks where spans do not exceed 70m. This one-piece thermoplastic clamp consists of a closed conical-shaped body, a round wedge with integrated lanyard and an opening bail. Thanks to its ruggedly engineered bail, the 5/35 FTTH R clamp is to be secured directly on pole fittings, with open or closed eye, or on pole hardware with ⌀ 10mm minimum. 5/35 FTTH R drop clamp is designed for round fibre optic cables with ⌀ 2.5 – 5 mm |
| Type | ADC-CLAMP-5/35 |
