AFN with LC SX APC Adaptors and 6 X 1:4 PLC Splitters
Art.-No. 857-01547
| AFN-9999LCRS641/BK
|
Details
Application | The AFN (Aerial Fibre Node) has been designed for deployment within the last mile of the FTTx network. This enclosure can be used within a P2P (Point to Point) or P2MP (Point to Multi Point) network with the addition of connectorised PLC splitters or pigtails and adaptors. |
Cable ∅ max | 7.2mm |
Cable ∅ min | 0.1mm |
Colour | Black (BK) |
Connector Colour | Green (GN) |
Connector Type | LC-APC |
Content |
AFN Enclosure 24 LC/APC Simplex Adaptors 6 1:4 LC/APC BE Splitters Entry/Exit Port Seals Fibre Picker Wall Mounting Kit Cable Ties Red/Green |
Material | Polycarbonate (PC) |
PART DESCRIPTION | AFN-9999LCRS641/BK |
Package Content packed in | box |
Product Description | AFN with LC SX APC Adaptors and 6 X 1:4 PLC Splitters |
Product Family | Fibre Optic External Enclosure |
Product Group | AFN - Aerial Fibre Node |
Short Description | AFN with LC SX APC Adaptors and 6 X 1:4 PLC Splitters |
Splice Capacity | 24 |

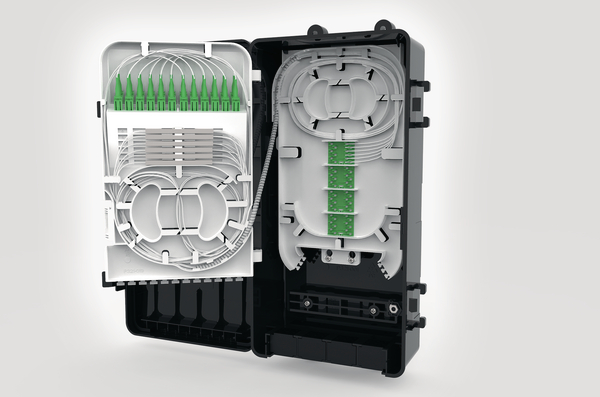

Technical Description | The AFN - Aerial Fibre Node is manufactured from UV stable black polycarbonate with a completely detachable lid which can also be snapped back in to position using the snap back hinges allowing unrestricted access to all fibre management areas. The enclosure has 3 separate management areas for inbound cable, fibre splice management and drop cable (customer connection) management. The inbound cable management area has a dedicated cable entry port which supports both cable end and mid-span applications with loop storage capacity for up to 4m of 144 core fibre cable and the entry port is sealed with a cable entry kit to maintain the IP55 rating. The fibre splice management area has capacity for a maximum of 24 3A splices and maintains positive fibre management (30mm minimum bend radius) throughout. The tray has a crossover facility which allows for alternative routing requirements and a fibre storage capacity of 1.5m for 250µm fibre. The drop cable management area presents 24 LC APC Simplex adaptors for connection to industry standard pre-terminated drop cables and a 6 X 1:4 PLC splitters. The drop cable management area cover prevents access to the network cables and splicing area and the adaptors are angled and spaced to allow for inspection prior to connection. Twelve anchor guides are provided for securing the drop cables (maximum diameter 4.2mm) and an integral seal maintains the IP55 rating. |
Type | AFN-9999LCRS641/BK |
Variant | Outdoor FTTx Enclosures |
