28/03/2024

Category 6 Unshielded Dca Cable
Art.-No. 851-05099 | CA076 DCA Details

  • Exceeds Category 6 performance standards
  • CPR Euroclass rating: Dca, S2, d2, a2
  • Suitable for Dca and Eca specified installations
  • Metre marked for accurate measuring
  • Supplied in sturdy boxes of 305m
Show more
Cable ∅ max 6mm
Colour Violet (VT)
Pack Cont. 305m
Package Content packed in box
PART DESCRIPTION CA076 DCA
Performance Category Category 6 (Class E)

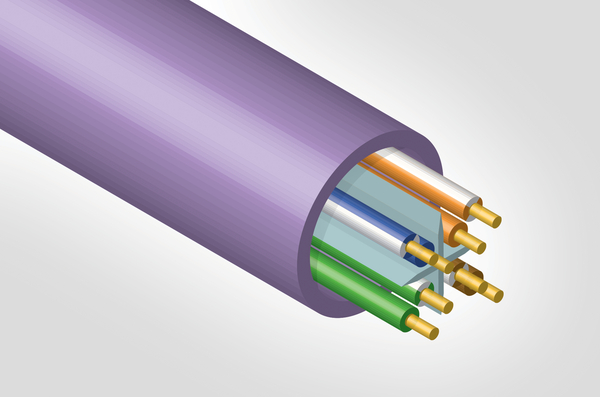

Product Description Category 6 U/UTP Cable from HellermannTyton is supplied in boxes of 305m and Conforms to CPR Euroclass rating Dca, S2, d2, a2. The cable is marked at 1m intervals for accurate measuring.
Product Family Unshielded 305m
Product Group CAT6 U/UTP Cable Dca
Short Description Category 6 Unshielded Dca Cable

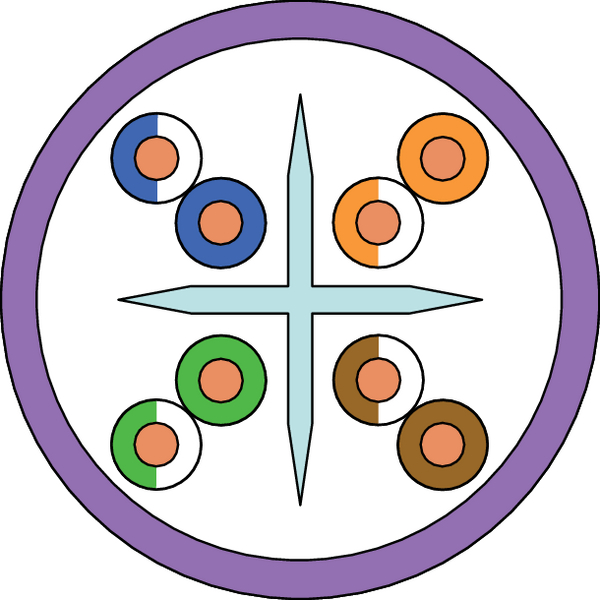

Technical Description The Category 6 Cable is constructed as a U/UTP Cable and exceeds the relevant performance requirements of ISO/IEC 11801-2 and TIA/ANSI 568-C.2 EN50173, IEC 61156-5, EN 50288-10-1. The LSHF-FR sheath conforms with fire rating IEC 60332-1, 60332-3-24, 60754-2 and 61034. The copper conductor is AWG 23 and the cable has an nominal overall diameter of 6mm. This cable complies with the requirements within the Construction Products regulations EN50575:2014+A1:2016 - Power, control and communication cables. Cables for general applications in construction works subject to reaction to fire requirements.
Length (L) 305m
