CCE with 1 x SC SX PC Adaptor
Art.-No. 857-01436 | CCE-A11121SX1/BK Details

  • 1 x SC Simplex Adaptor
  • Fibre Management for 4 x 3A splices
  • Integral positive fibre management and storage capacity
  • 6 inbound/outbound access points (2 x 6.0-8.5mm and 1 x 2.5 - 6.5mm)
  • Through the wall capability
  • Loop through facility
  • Tamper-proof fitting - captive screw and nut
  • IP55 Rated
Show more
Application The Customer Connection Enclosure (CCE) has been designed to be used as an external building entry point. The closure can be wall mounted providing a fibre termination and external network test point. The CCE has been designed to be the same size as a 'Brick Blow-Out Cover' to cover any unslightly damage caused by drilling.
Adapter Capacity 2
Cable ∅ max 8.5mm
Cable ∅ min 2.5mm
Colour Black (BK)
Connector Colour Blue (BU)
Connector Type SC
Content 1 x SC Simplex Adaptor
Cable Entry Kit 6.0 - 8.5mm/2.5 - 6.5mm
Mechanical Fixing Kit
Wall Mounting Kit
Laser Label
Installed Adapters 1
Material Acrylonitrile Butadiene Styrene, UV-stabilised (ABSUV)
PART DESCRIPTION CCE-A11121SX1/BK
Pack Cont. 1pc.
Package Content packed in EA
Pigtail Cable Capacity 0
Product Family Fibre Optic External Enclosure
Product Group Customer Connection Enclosure
Short Description CCE with 1 x SC SX PC Adaptor
Splice Capacity 4

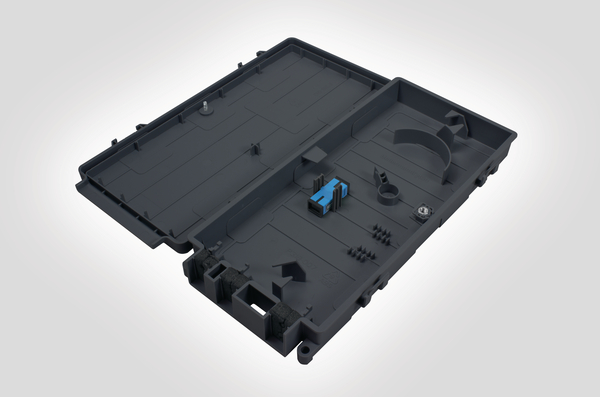

Technical Description The Customer Connection Enclosure (CCE) is supplied with 1 x SC Simplex Adaptor. The closure is manufactured from UV stable ABS with a hinged lid which locks in the open position to allow for quick and clear access to the internal fibre. The closure has 6 entry/exit ports at the bottom of the closure which are suitable for cables and ducts up to a maximum diameter of 8.5mm. A loop through facility allows for single fibre elements to be removed and spliced whilst the remaining fibres can be fed on to the next connection point. A single port in the rear of the closure allows for fibre to be passed through the wall into the customer premises. Mechanical fixing is provided to secure all incoming/outgoing cables/blown fibre ducts and to provide strain relief where necessary. Internal positive fibre management and fibre retention clips maintain a minimum 30mm bend radius throughout for up to a maximum of 50m of 1.1mm diameter cable.
Type CCE-A11121SX1/BK
Variant Outdoor FTTx Enclosures
Depth (D) 37mm
Height (H) 263mm
Width (W) 130mm
Country of Origin GB
GTIN-13 / EAN 5022660162541
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
UNSPSC Key 43223338
