CCP with 1 LC DX APC Adaptor & 2 LC APC Pigtails
Art.-No. 857-01110
| CCPA-M111AP/BK-0
|
Copied
- 1 x LC/APC Duplex Adaptor and 2 x LC/APC 900μm Pigtails 1m
- Fibre management for 2 x 3A or 2 x ANT splices
- Integral positive fibre management and fibre storage capacity
- Separate inbound/outbound access points
- Cable entry seal 4.0 - 6.0mm
- Fully detachable snap on lid
- IP68/IK08 Rated
More products in this product group:
| Application | The Customer Connection Point closure has been designed to be used as an external building entry point. The closure can be wall/facade mounted or put in to a buried chamber (located at the property boundary or just outside the point of access) providing an external building entry point and network test point. |
| Cable ⌀ max | 6.0mm |
| Cable ⌀ min | 4.0mm |
| Colour | Black (BK) |
| Connector Colour | Green (GN) |
| Connector Type | LC-APC |
| Content |
1 x LC/APC Duplex Adaptor 2 x LC/APC 900μm Pigtails 1m Cable Entry Kit 4.0 - 6.0mm Breather Membrane Laser Label |
| Installed Adapters | 1 |
| Material | Polycarbonate (PC) |
| PART DESCRIPTION | CCPA-M111AP/BK-0 |
| Package Content packed in | box |
| Pigtail Cable Capacity | 2 |
| Product Description | 1 LC DX APC Adaptor & 2 LC APC Pigtails. |
| Product Family | Fibre Optic External Enclosure |
| Product Group | Customer Connection Point |
| Short Description | CCP with 1 LC DX APC Adaptor & 2 LC APC Pigtails |
| Technical Description |

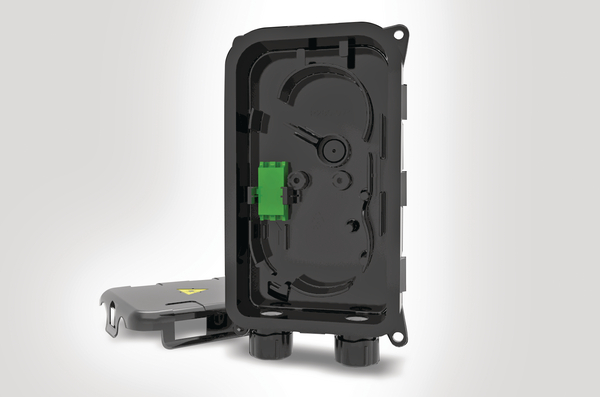

The Customer Connection Point (CCP) is manufactured from VO and UV stable black polycarbonate and has a fully detachable snap on lid. The closure has 2 separate cable access points which are sealed with a silicon cable entry kit (cable diameter range 4.6mm - 5.6mm) to maintain the IP68 rating. A gortex breather membrane is fitted to the lid to prevent condensation forming in the base of the closure. The CCP can also be surface mounted to the wall with an optional sealed rear cable entry/exit point enabling the drop cable to pass directly into the premises. The unit is supplied with 1 x LC/APC Duplex and 2 x LC/APC 900μm Pigtails 1m and provides splice management for 2 x 3A or 2 x ANT splices. Internal fibre management features ensure that a 30mm minimum bend radius is maintained within the closure and provides fibre storage capacity for any excess fibre. |
| Type | CCPA-M111AP/BK-0 |
| Variant | Outdoor FTTx Enclosures |
