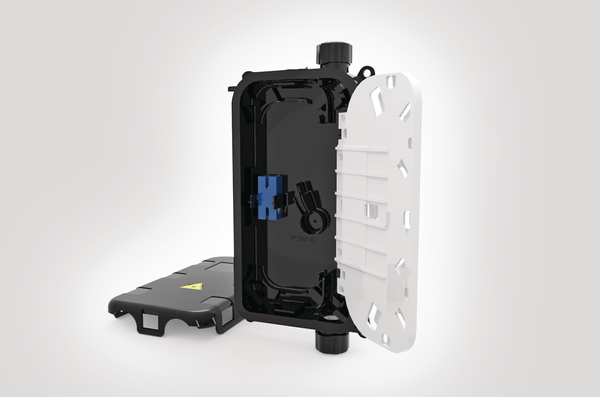

2 Inline Port CCPXT with tray, 1 x SC PC simplex adaptor and 1 x SC PC 900μm pigtail
Art.-No. 857-01963 | CCPXT-X1X1XX1SP0011X/BK Details

Application The CCPXT 2 Port Inline has been designed to be used as an external building entry point. The enclosure can be wall/facade mounted or placed in to a buried chamber (located at the property boundary or just outside the point of access) providing an external building entry point and network test point.
Cable ∅ max 6.0mm
Cable ∅ min 4.0mm
Colour Black (BK)
Content 1 x 2 Port Inline CCPXT Enclosure
1 x Splice Tray with 3A Splice Bridge
1 x SC PC Simplex Adaptor
1 x SC PC 900μm Pigtail 1m
2 x 4.0 - 6.0mm Cable Entry Seals
Material Polycarbonate, UV-stabilised (PCUV)
PART DESCRIPTION CCPXT-X1X1XX1SP0011X/BK
Package Content packed in box
Port count 2
Product Family Fibre Optic External Enclosure
Product Group CCPXT - Customer Connection Point
Short Description 2 Inline Port CCPXT with tray, 1 x SC PC simplex adaptor and 1 x SC PC 900μm pigtail
Splice Capacity 13
Technical Description The 2 Port Inline CCPXT is fitted with a splice tray with a 3A splice bridge (maximum 12 x 3A splices) and supplied with 1 x SC PC Simplex Adaptor and a 1m pigtail. Each cable access point is sealed with a cable entry kit to maintain the IP68 rating. Internal fibre management features ensure that a 30mm minimum bend radius is maintained within the closure and provides storage capacity for any excess fibre. The base of the CCPXT has wall mounting points in each corner and the lid snaps in to place using lid retaining clips. The closure also has a tamperproof lock mount can be used to provide additional security if required.
Type CCPXT-X1X1XX1SP0011X/BK
Depth (D) 28.5mm
Height (H) 188mm
Width (W) 94mm
Country of Origin GB
GTIN-13 / EAN 5022660173523
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
