CCPXXL - Customer Connection Point
Art.-No. 857-03264
| CCPXXL-M111A/BK
|
Copied
- Maximum 2 Customer Connections

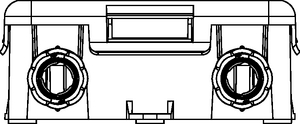

- Entry/Exit Port fitted with compressions seal

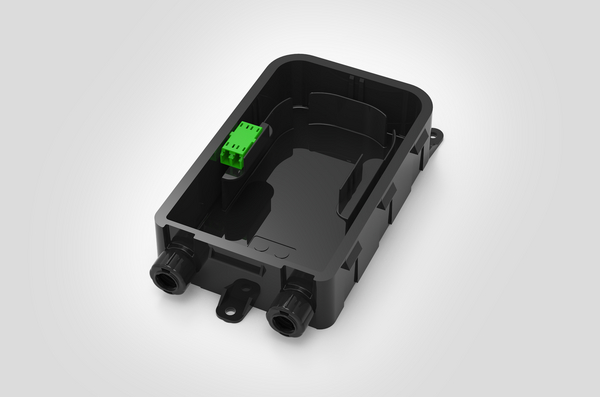

- Pre-loaded with LC/APC Duplex Adaptor

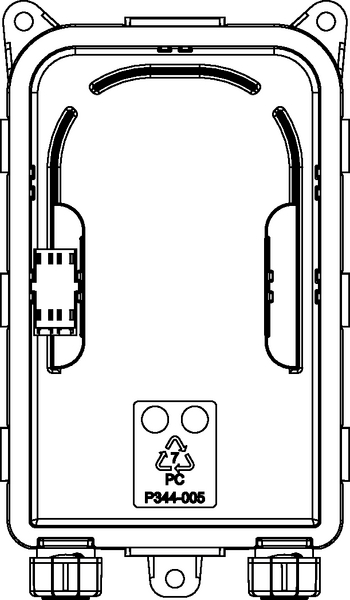

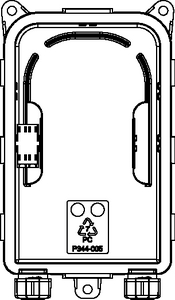

- Positive fibre management (30mm minimum bend radius)
- Maximum 25m Blown Fibre Unit (BFU) storage capacity
- Gortex membrance to prevent moisture condensation

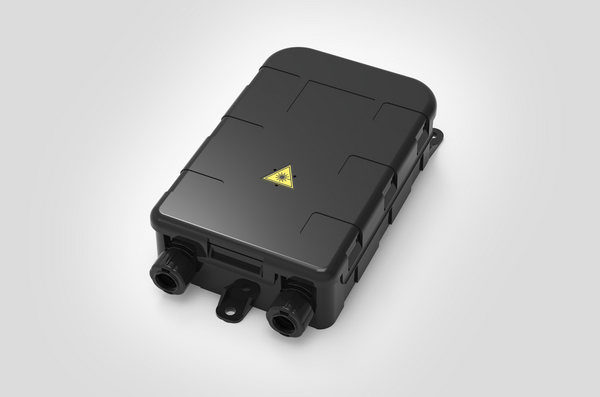

- Fully detachable snap-on lid
Show more
Show less
More products in this product group:
| Application | The CCPXXL has been designed to be used as an external building entry point where additional storage capacity is required for excess fibre. The enclosure can be wall/facade mounted or placed in to a buried chamber (located at the property boundary or just outside the point of access) providing an external building entry point and network test point. |
| Cable ⌀ max | 6.0mm |
| Cable ⌀ min | 4.0mm |
| Colour | Black (BK) |
| Connector Type | LC-APC |
| Content |
1 x CCPXXL Enclosure 1 x LC/APC Duplex Adaptor 2 x 4.0 - 6.0mm Cable Entry Seals Gortex Breather Membrane |
| Material | Polycarbonate (PC) |
| PART DESCRIPTION | CCPXXL-M111A/BK |
| Package Content packed in | box |
| Port count | 2 |
| Product Family | Fibre Optic External Enclosure |
| Product Group | CCPXXL - Customer Connection Point |
| Splice Capacity | 0 |
| Technical Description |

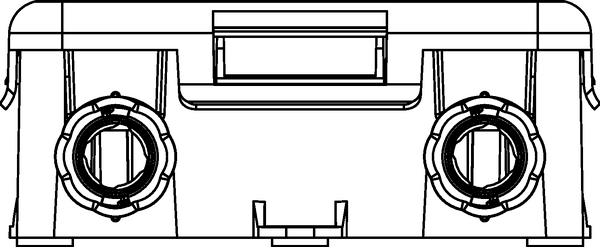

The CCPXXL-M111A/BK has 2 cable entry/exit ports and is supplied with a single LC/APC Duplex adaptor. Each port is sealed with a 4.0 - 6.0mm compression seal suitable for use with HellermannTyton duct allowing for a Blown Fibre Unit (BFU) to be blown directly in to the closure. The compact design of the closure means that it can be housed within a small subterranean chamber (TobyBox300). The closure is IP68/IK08 rated and supplied with a gortex membrane to prevent the build of internal moisute within the closure. The internal fibre management features ensure that a 30mm minimum bend radius is maintained throughout and provides storage for a maximum of 25m of BFU. The fully removable snap-on lid enables quick clear access to the internal fibre for ease of customer connection. The closure is manufactured from polycarbonate and has provision on the lid for a moulded customer logo. |
| Type | CCPXXL-M111A/BK |
| Weight/Unit | 0.136kg |
