CWB in Grey with 1 x LC/APC DX Adaptor
Art.-No. 857-02422 | CWB-GY Details

  • Maximum 4 Customer Connections
  • 6 Entry/Exit Ports at the base max. 8mm
  • 2 Entry/Exit Ports at the rear max. 6.4mm
  • Accommodation for 2 LC Duplex/SC Simplex Adaptors
  • Maximum 4 x 3A splices
  • IP54
  • Storage for excess fibre
  • Tamperproof
Show more
Application The Customer Wall Box (CWB) has been designed as a Building Entry Point (BEP) to provide a fibre termination and demarcation point external to the connected premise in a Fibre to the Home (FTTH) network.
Colour Grey (GY)
Content CWB Enclosure - Grey
Fibre Management Tray
1 x LC/APC DX Adaptor
2 x 3.0-8.0MM Entry/Exit Port Seals
2 x 6.4mm grommets
Wall Mounting Kit
Cable Ties Red
Material Polycarbonate, UV-stabilised (PCUV)
PART DESCRIPTION CWB-GY
Pack Cont. 48
Package Content packed in box
Product Family Fibre Optic External Enclosure
Product Group CWB - Customer Wall Box
Short Description CWB in Grey with 1 x LC/APC DX Adaptor
Splice Capacity 4

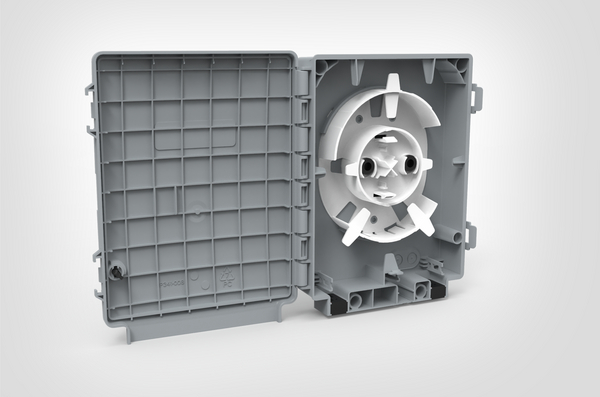

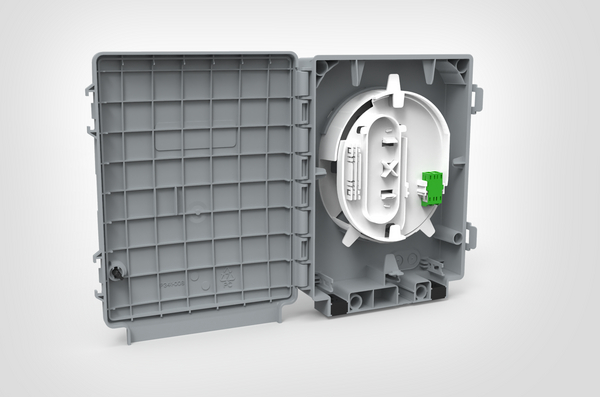

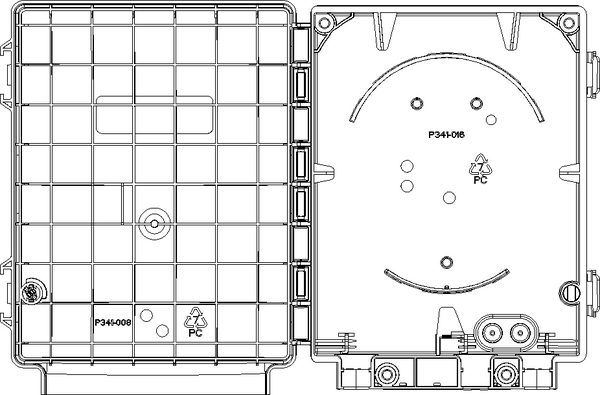

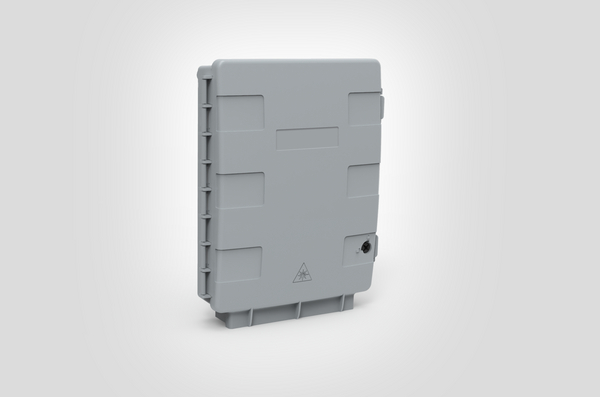

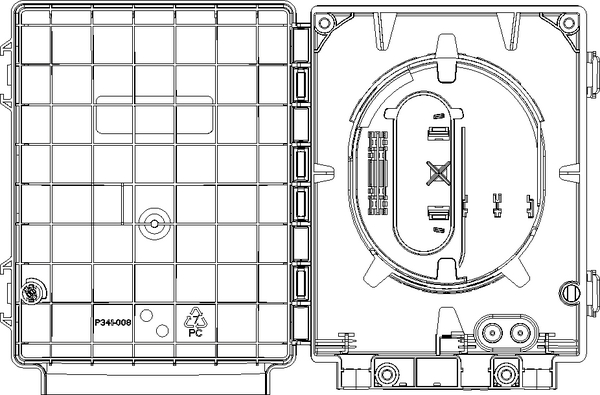

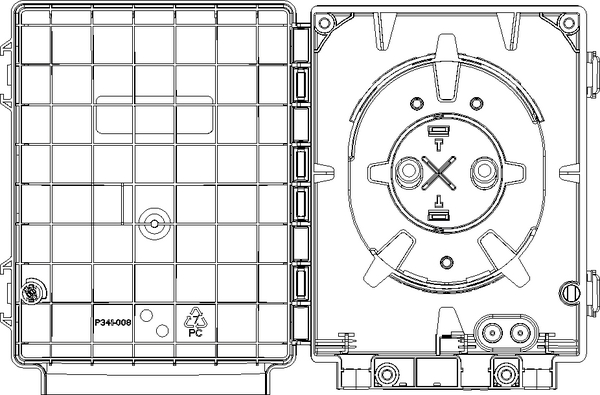

Technical Description The CWB is an IP54/IK07 rated enclosure manufactured from UV stable black polycarbonate. The enclosure is fitted with a tamper-proof lock and a 55 x 15mm inset position on the front cover that allows for a customer logo to be moulded. The closure has a total of 8 entry points, 6 in the bottom and 2 in the rear, which will manage cable/ducts up to a maximum diameter of 8mm. Mechanical fixing is provided to secure all incoming/outgoing cables/blown fibre ducts and to provide strain relief where necessary. A fibre storage module allows for the management and storage of up to 30m of a blowable fibre unit (nominal diameter 1.2mm) or 10m of aerial drop cable (nominal diameter 3mm). A dedicated customer drop tray houses a maximum of 2 x LC Duplex or SC Simplex adaptors (1 x LC/APC DX Adaptor provided) and has been specifically moulded to secure 3A splices. Two types of seals are available for different cable OD (3.0-8.0mm seal and 10.0mm seal).
Type CWB-GY

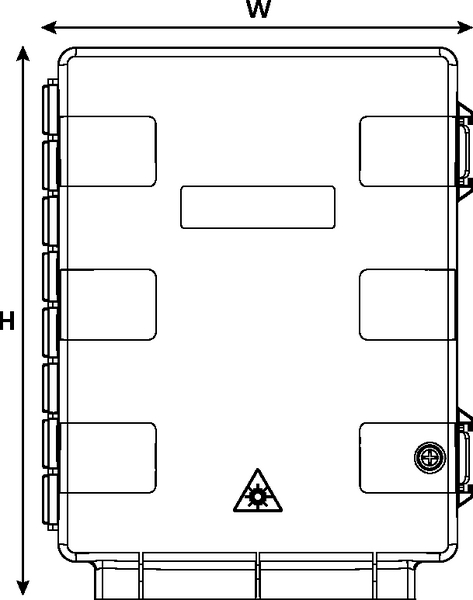

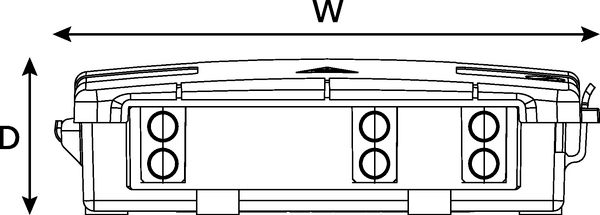

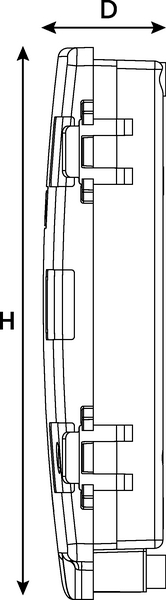

Depth (D) 44mm
Height (H) 198mm
Width (W) 154mm
Country of Origin CN
GTIN-13 / EAN 5022660182945
ETIM 7.0 Key EC002067
ETIM 8.0 Key EC002067
ETIM 9.0 Key EC002067
