Ductlok R port 7mm


Art.-No. 857-50252

| DUCTLOK-RPORT-7MM-10

 |

Copied

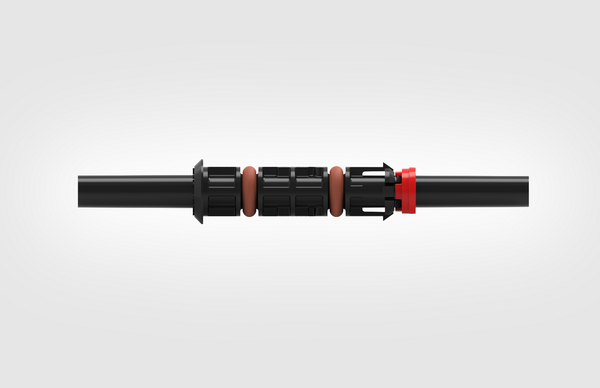

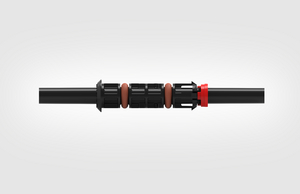

Ductlok R Series for 7mm Duct.

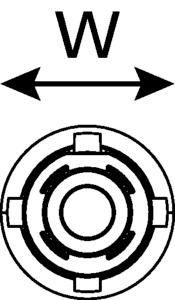

Ductlok R-Port.
Ductlok R-Port.
Ductlok R Series for 7mm Duct.

    • Quick and simple installation
    • Suitable for use with 7mm duct
    • Allows closure to be pre-tubed for later connection
    • Compatible the HellermannTyton FDN, R Port CFN, FRBU and FST dome closures
    Add to watchlist
    Downloads
    Application The R Port 7mm DuctLok is a mechanical seal designed to be used with the range of HellermannTyton dome closures. The Ductlok provides a seal for 7mm duct.
    Colour Black (BK)
    Content 10 x DUCTLOK-RPORT-7MM
    PART DESCRIPTION DUCTLOK-RPORT-7MM-10
    Product Group Ductlok R port 7mm
    Short Description Ductlok R port 7mm
    Technical Description HellermannTyton’s R Port Ductlok mechanical seal enables fast safe installation for 7mm duct, providing a highly repeatable and consistent seal between the duct and the closure port with excellent non-leak performance.
    Type DUCTLOK-RPORT-7MM-10
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 4031026808727
