MDU S1 with unloaded LC Drop Management Area
Art.-No. 857-01783 | MDU-S1-04LC Details

  • Maximum capacity: 12 LC Simplex Adaptors
  • 4 Inbound/12 Outbound ports
  • Separation of inbound fibre from connectorised drop cables
  • Positive fibre management to maintain consistent 30mm minimum bend
  • PLC splitter accommodation (60mm x 7mm x 4mm - max. 3)
  • Supports 3A and ANT splice protector types
  • IP55 and IK08 rating

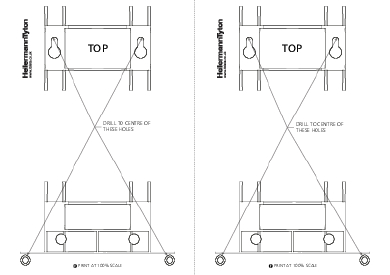

  • Pole or building/facade mounted
Show more
Application Designed for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Pont (P2P) or Point to Multi Point (P2MP) network with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors.
Cable ∅ max 16mm
Colour Grey RAL 7035 (RAL7035)
Content Fibre Facade Enclosure
Fibre Splice Tray and Management System
Incoming Cable Seal - Maximum Cable Diameter 16mm
Drop Cable Seals - Maximum Cable Diameter 8mm
Material Polycarbonate (PC)
PART DESCRIPTION MDU-S1-04LC
Product Family Fibre Optic External/Internal Enclosure
Product Group S1 Series MDU/MBU Enclosures
Short Description MDU S1 with unloaded LC Drop Management Area
Splice Capacity 24
Technical Description A 241 x 161 x 72mm (H x W x D) enclosure manufactured from UV stable light grey (RAL7035) polycarbonate with an IP55, IK08 and V0 rating. The enclosure has a completely detachable lid which can also be snapped back in to position using the snap back hinges allowing unrestricted access to all fibre management areas. The enclosure has 3 separate management areas for inbound cable, fibre splice management and drop cable (customer connection) management. The inbound cable management area has a dedicated cable entry port which supports both cable end and mid-span applications with loop storage capacity for up to 1.5m* of excess fibre and the entry port is sealed with a cable entry kit to maintain the IP55 rating. The fibre splice management area has capacity for a maximum of 12 x 3A or 24 ANT splices and maintains positive fibre management (30mm minimum bend radius) throughout. The tray has a crossover facility which allows for alternative routing requirements and a fibre storage capacity of 1.5m for 250µm fibre and 1.0m of 900µm fibre. The drop cable management area accommodates 12 LC Simplex adaptors for connection to industry standard pre-terminated drop cables and a maximum of 3 PLC splitters (60mm x 7mm x 4mm) can be fitted on the inside of the management area. The drop cable management area cover prevents access to the network cables and splicing area and the adaptors are angled and spaced to allow for inspection prior to connection. Twelve anchor guides are provided for securing the drop cables (maximum diameter 8.0mm) and an integral seal maintains the IP55 rating.
Depth (D) 71.6mm
Height (H) 241mm
Width (W) 154mm
Country of Origin GB
GTIN-13 / EAN 5022660171697
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
