05/10/2024

FFE with 12 LC APC SX Adaptors
Art.-No. 857-01818 | FFE12-04LCRPXX1/BK Details

Application The Fibre Facade Enclosure has been designed to provide a Fibre Connection Point. The closure can be building/facade or pole mounted and provides 8 or 12 SC or LC Simplex customer connection points.
Adapter Capacity 12
Cable ∅ max 16mm
Cable ∅ min 8.1mm
Colour Black (BK)
Connector Type LC-APC Simplex
Content Fibre Facade Enclosure
Fibre Splice Tray and Management System
12 x LC APC Simplex Adaptors and Pigtails
Incoming Cable Seal - Maximum Cable Diameter 16mm
Drop Cable Seals - Maximum Cable Diameter 8mm
Material Polycarbonate, UV-stabilised (PCUV)
PART DESCRIPTION FFE12-04LCRPXX1/BK
Pack Cont. 1
Package Content packed in box
Pigtail Cable Capacity 12
Product Family Fibre Optic External Enclosure
Product Group Fibre Facade Enclosure
Short Description FFE with 12 LC APC SX Adaptors
Splice Capacity 24

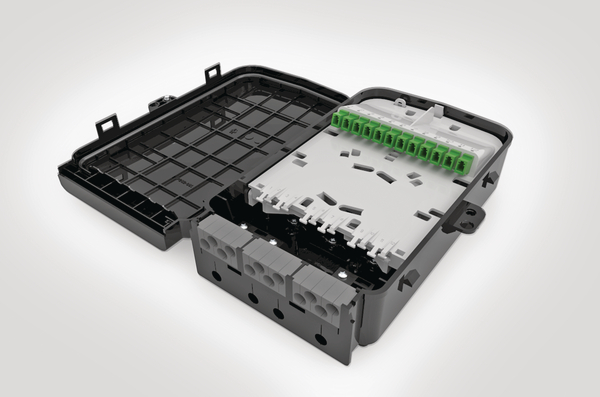

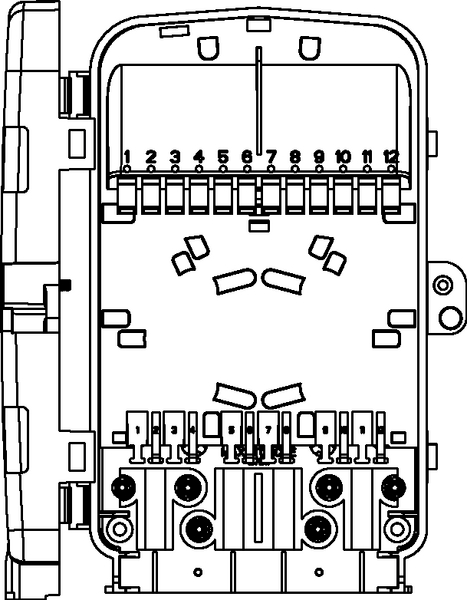

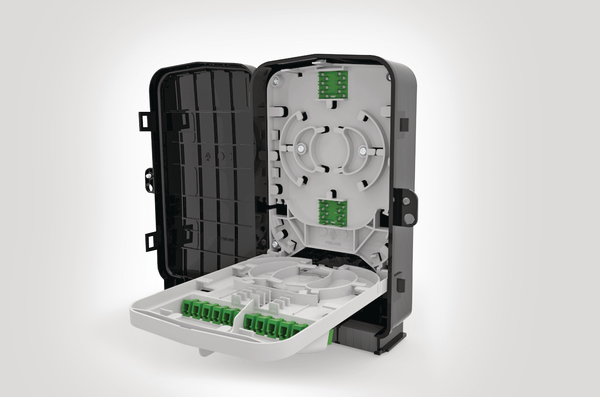

Technical Description The Fibre Facade Enclosure (FFE) is manufactured from UV stable black polycarbonate with a completely detachable lid which can also be snapped back in to position using the snap back hinges allowing unrestricted access to all fibre management areas. The enclosure has 3 separate management areas for inbound cable, fibre splice management and drop cable (customer connection) management. The inbound cable management area has a dedicated cable entry port which supports both cable end and mid-span applications with loop storage capacity for up to 1.5m* of excess fibre and the entry port is sealed with a cable entry kit to maintain the IP55 rating. The fibre splice management area has capacity for a maximum of 12 x 3A or 24 ANT splices and maintains positive fibre management (30mm minimum bend radius) throughout. The tray has a crossover facility which allows for alternative routing requirements and a fibre storage capacity of 1.5m for 250µm fibre and 1.0m of 900µm fibre. The drop cable management area presents 12 LC APC Simplex adaptors for connection to industry standard pre-terminated drop cables and a maximum of 3 PLC splitter (60mm x 7mm x 4mm) can be fitted on the inside of the management area. The drop cable management area cover prevents access to the network cables and splicing area and the adaptors are angled and spaced to allow for inspection prior to connection. Anchor guides are provided for securing the drop cables (maximum diameter 8.0mm) and an integral seal maintains the IP55 rating.
Trunk Cable Port Quantity/Size 4x 8-16 mm
Type FFE12-04LCRPXX1/BK
Depth (D) 71.6mm
Height (H) 241mm
Width (W) 161mm
CE Certification No
CSA Certified No
ROHS compliant No
Country of Origin GB
GTIN-13 / EAN 5022660171543
ETIM 7.0 Key EC001124
ETIM 8.0 Key EC001124
ETIM 9.0 Key EC001124
