MTP to MTP Fan Out


Art.-No. 855-32192

| FLWH4M4-MFMF6M-10.0M

 |

Copied

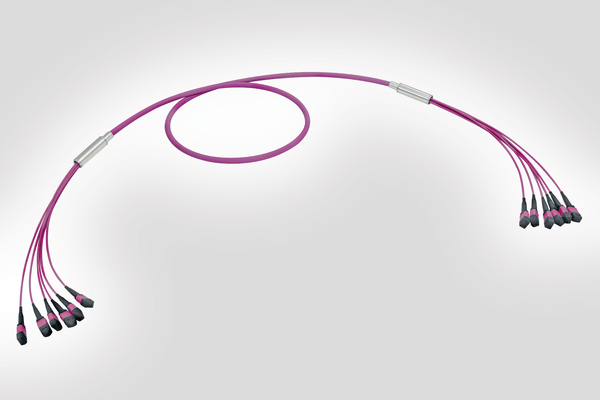

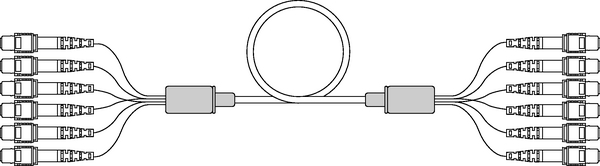

6 x 24 Fibre MTP to 6 x 24 Fibre MTP Fan Out
6 x 24 Fibre MTP Fan Out

    • High performance low loss Elite® Connectors from US Conec
    • Compatible with all MTP RapidNet Cassettes
    • Available in OM4 and OM5
    • Pre-tested with test results supplied
    • Female MTP Connectors
    Add to watchlist
    Application RapidNet fan out to fan out cables remove localised patching at both ends, saving space in the cabinets and reducing optical losses in the link. These cables are offered in various configurations and are particularly suited to applications where the active equipment or hardware at each end is located either in the same cabinet or row.
    Cable Configuration 24 Core
    Colour Magenta (MG)
    Connector Colour Magenta (MG)
    Connector Type MTP
    PART DESCRIPTION FLWH4M4-MFMF6M-10.0M
    Package Content 10m
    Performance Category OM4 Multimode
    Product Description The MTP to MTP Fan Out is designed to provide a high density inter-connect which uses minimum space making it an ideal solution for patching active hardware in data centres where space is at a premium.
    The Fan Out cable is a multi-core cable that has a smaller diameter than the standard fibre patch lead and therefore takes up less space in the trays and pathways.
    Product Family 24 Fibre MTP Fan Out Cable
    Product Group MTP to MTP Fan Out
    Technical Description US Conec MTP Connectors provide quick and simple connection for 24 fibres in a single housing. The Elite® low loss Connector ensures the optical alignment through patented high precision pins and floating ferrule and conforms to IEC 61754-7 and TIA 604-5. NB. Part numbers shown are for 10m length, other lengths are available.
    Type FLWH4M4-MFMF6M-10.0M
    Length (L) 10m
    Optical Performance Multimode
    Country of Origin GB
    GTIN-13 / EAN 5022660161094
    ETIM 7.0 Key EC000034
    ETIM 8.0 Key EC000034
    ETIM 9.0 Key EC000034
