FRBU IP9 with 8 SC/APC IP9 Adaptors and 1m Pigtails
Art.-No. 857-02782
| FRBCT-MXXIA21T8-8XPT
|
Copied
- 8 SC/APC IP9 Connections
- SC/APC 1m pigtails
- Maximum splice capacity 48 3A (double stacked)

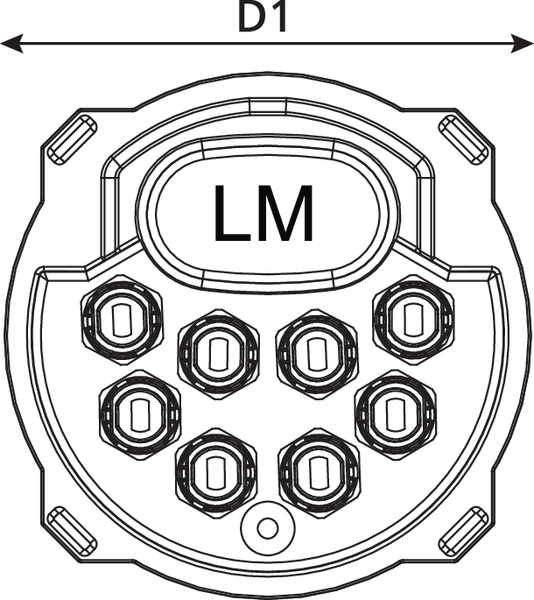

- 8 IP9 ports and 1 oval port
- Fibre storage basket for mid-span applications
- 2 x Hellapon Small trays
- Positive fibre management to ensure consistent 30mm bend radius throughout
- Cablelok compatible for the LM port
Show more
Show less
More products in this product group:
| Colour | Black (BK) |
| Content |
IP9 SC/APC Connectors (8) SC/APC 1m Pigtails (8) FRBU IP9 Base M Length Cover Quick Release Clamp Sealing 'O' Ring Tray Support Frame Anchor Fixing Kit (2) Hellapon Small Tray 3A (2) |
| Material | Polypropylene (PP) |
| Method of Sealing | Cablelok |
| PART DESCRIPTION | FRBCT-MXXIA21T8-8XPT |
| Package Content packed in | box |
| Port count | 8 |
| Product Family | M Length with 8 SC/APC IP9 Adaptors |
| Product Group | FRBU IP9 Connectorised |
| Qty Trays | 2 |
| Short Description | FRBU IP9 with 8 SC/APC IP9 Adaptors and 1m Pigtails |
| Splice Capacity | 48 |
| Technical Description |

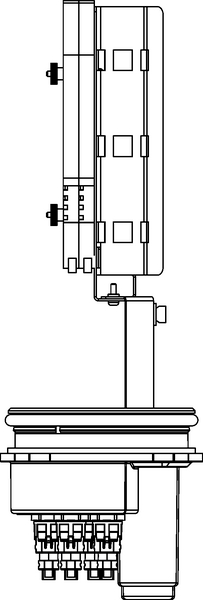

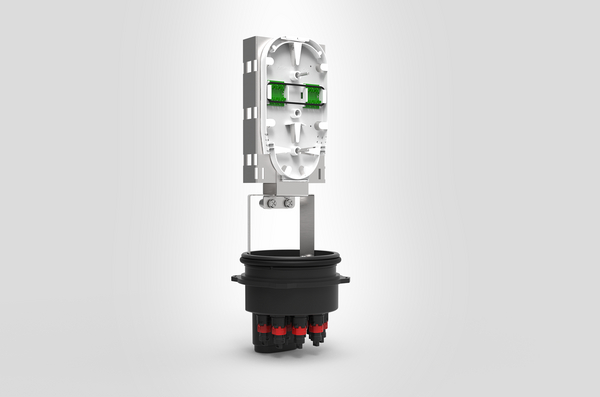

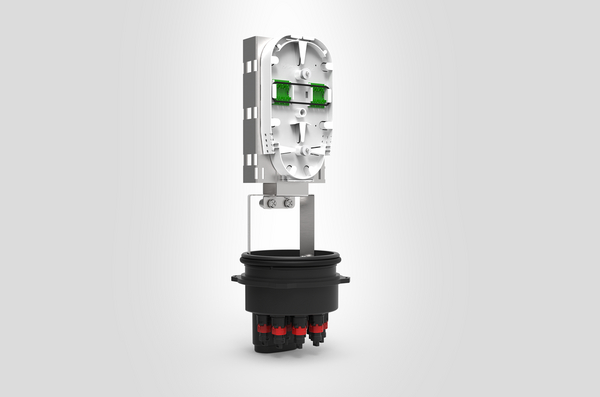

The IP9 Hardened Connector M length closure is an IP68 dome closure manufactured from UV stable polypropylene with a base configuration of 8 IP9 ports and 1 oval port. The IP9 ports are configured with SC/APC simplex adaptors and the oval port accommodates a cable diameter range of 4.0mm to 15.0mm (LM Port) when using cablelok mechanical seals. The closure mounting system is manufactured from Grade 304 stainless steel and supports 2 Hellapon Small splice trays and a fibre storage basket. The Hellapon Small trays are fitted with 3A splice bridges and the closure is supplied with 8 1m SC/APC pigtails. The base has an integrated closure mounting point which can be used with the FRBU moulded mounting brackets for mounting on a wall, pole or Mobra arm and allows the cover to be removed and the closure to stay in place during installation or maintenance. |
| Type | FRBCT-MXXIA21T8-8XPT |
| Type of Tray | Hellapon Small |
| Variant | Outdoor Enclosure |
