12/10/2024

G-Wrap Seal 400mm
Art.-No. 857-50247 | G-WRAP-400MM Details

Cable ∅ max 25mm
Cable ∅ min 15mm
Colour Black (BK)
PART DESCRIPTION G-WRAP-400MM
Pack Cont. 1pc.
Product Family Direct Buried/Branch off seal
Product Group G-Wrap Seal
Short Description G-Wrap Seal 400mm

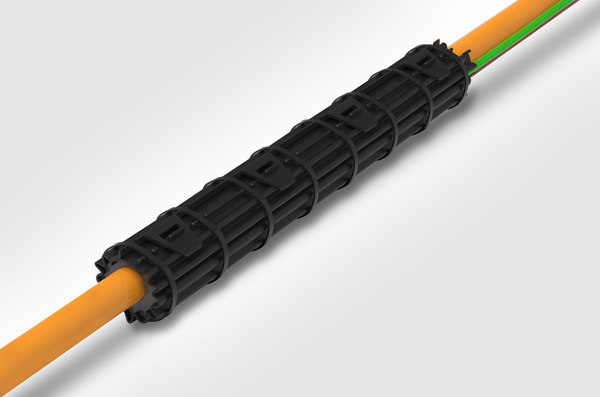

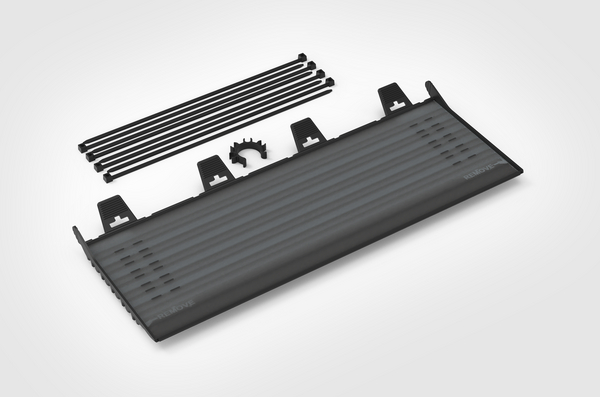

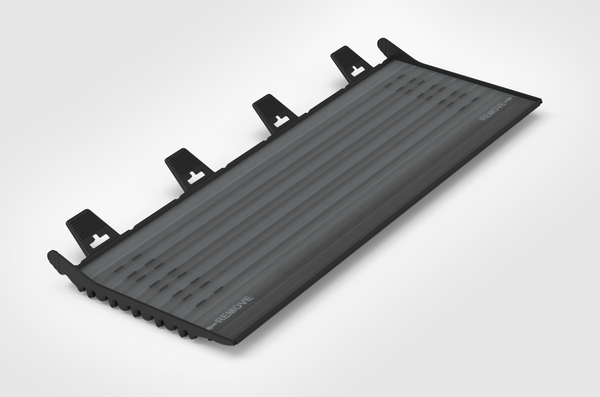

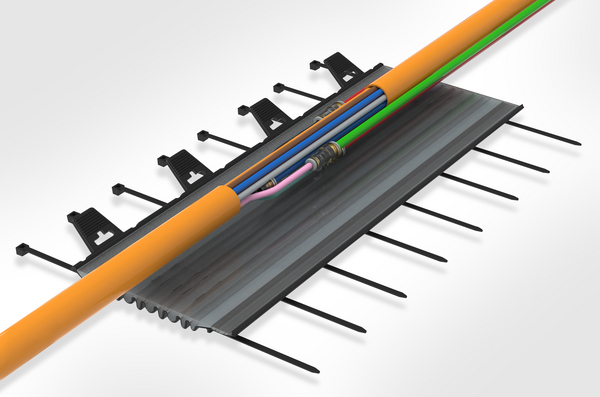

Technical Description The G-WRAP-400MM Seal from HellermannTyton has been designed to seal ducting in any stage of the network. The G-WRAP-400MM is suitable for use with HellermannTyton direct buried and PIA multiduct within a diameter range of 15mm to 25mm. The G-WRAP-400MM can also be used with a multi-duct bundle for branching joints where single duct(s) is taken from the bundle and routed to a customer connection point or another fibre connection point within the network.
Type G-WRAP-400MM

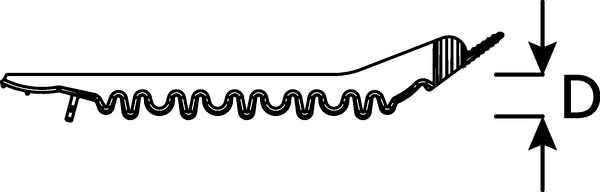

Depth (D) 15mm

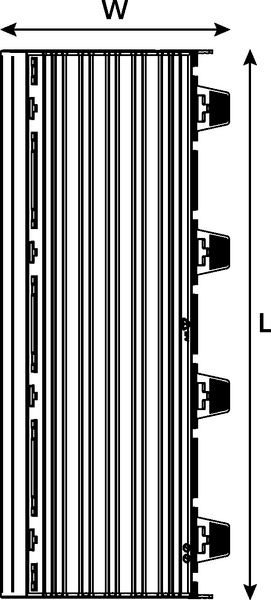

Length (L) 410mm
Width (W) 172mm
