CAT6 UTP1U 24 Port PCB Panel (A) – Component Compliant
Art.-No. 853-45054 | HTC-C6U-PP241U/BK/A |

Copied
Moulded Facia Cat 6 Unshielded Patch Panel

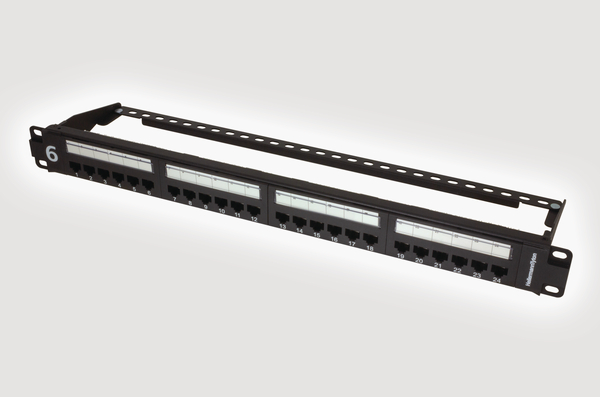

Moulded Facia Cat 6 Unshielded Patch Panel with Rear Cable Management

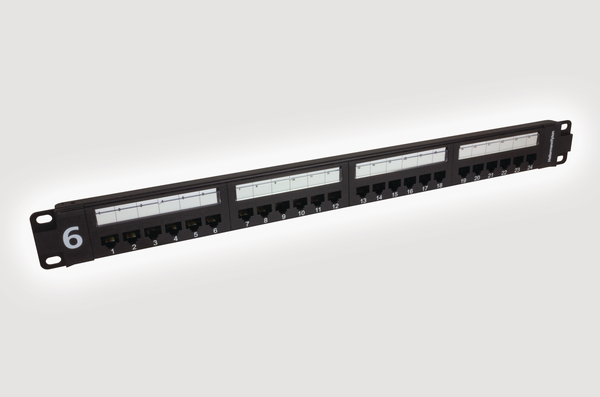

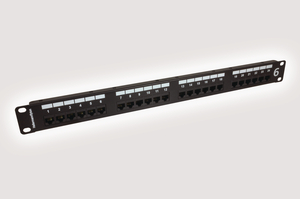

HTC Series Moulded Facia Patch Panel (front view)
HTC Series Moulded Facia Patch Panel (top view)
HTC Series Moulded Facia Patch Panel (rear view)

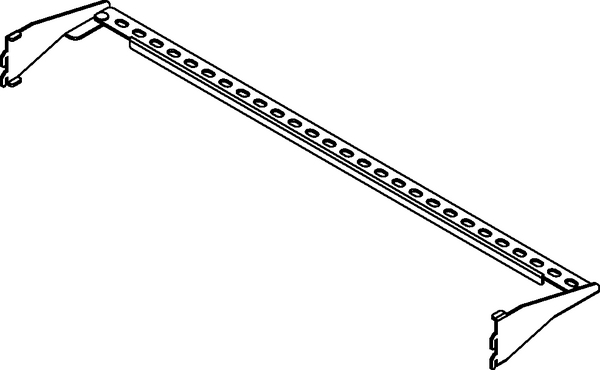

Rear Cable Management

    • 1U 24 ports
    • 3rd Party Certified for component compliance and POE++
    • Steel frame and ABS facia
    • Dual use IDC for Krone and 110 insertion tools
    • Integral Labelling fields
    • Includes rear cable manager, mounting fixings, mini-zip ties and instructions
    • Plastic free packaging
    Add to watchlist
    Downloads
    PART DESCRIPTION HTC-C6U-PP241U/BK/A
    Performance Category Category 6 (Class E)
    Product Description The HTC Series Category 6 Patch Panel is designed to support Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 155 Mb/s ATM, Token Ring 4/16, voice/data systems and Voice over Internet Protocol (VoIP) systems running over a Category 6 cabling system and is backwards compatible with legacy Category 5e, Category 5 and voice network infrastructures.
    Product Family Panel A – 1U 24 Ports – Moulded Facia
    Product Group HTC Series CAT6 Moulded Facia Patch Panel
    Short Description CAT6 UTP1U 24 Port PCB Panel (A) – Component Compliant
    Type HTC-C6U-PP241U/BK/A
    Depth (D) 31mm
    Height (H) 44mm
    Height, Units 1U
    Width (W) 480mm
    Country of Origin GB
    Dimensions W x H x D 480 mm x 44 mm x 31 mm
    GTIN-13 / EAN 5022660175862
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
    Cat6A & Cat6 Connectivity Cat6A & Cat6 Connectivity

    Cat6A & Cat6 Connectivity

    HellermannTyton offer an extensive range of connectivity solutions to meet the demands of any installation project. HellermannTyton provide a full end to end solution in Category 6A and Category 6 formats.

    Cat6A & Cat6 Connectivity >
