31/10/2025

GigaDuct Express Waterfall Trumpet, 100-300mm
Art.-No. 181-00429 | LG-SMXXTX-YL |

Copied

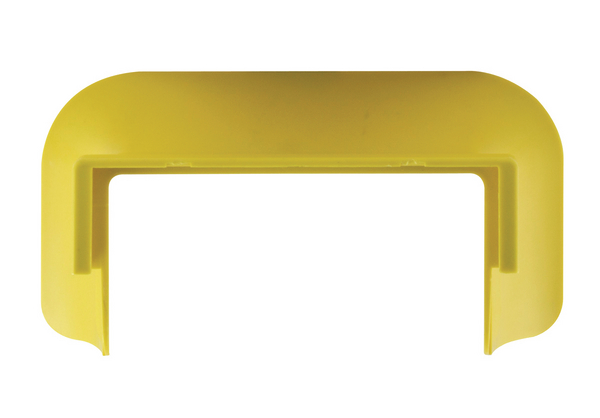

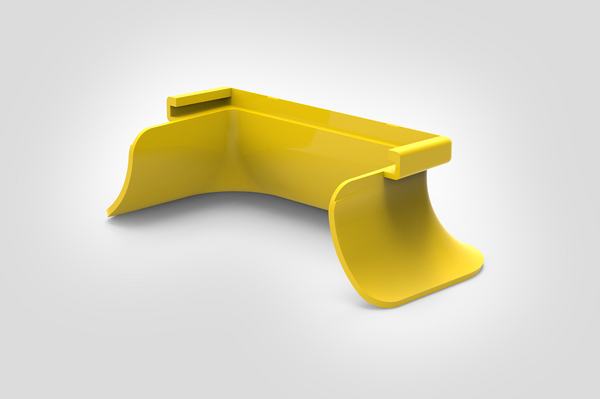

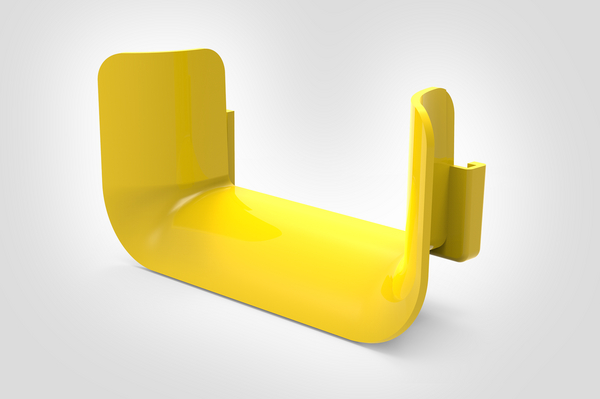

Trumpet for Outlet Opening.

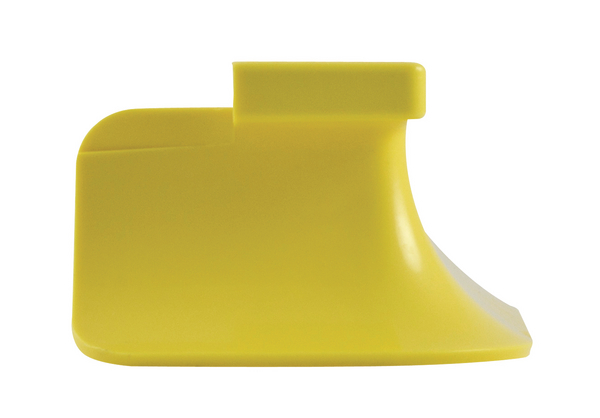

Side view of Trumpet for Outlet Opening

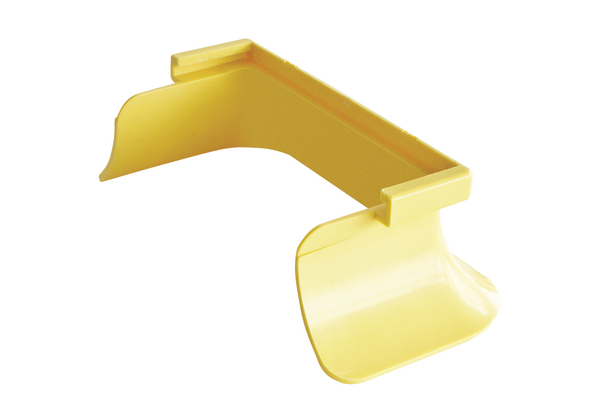

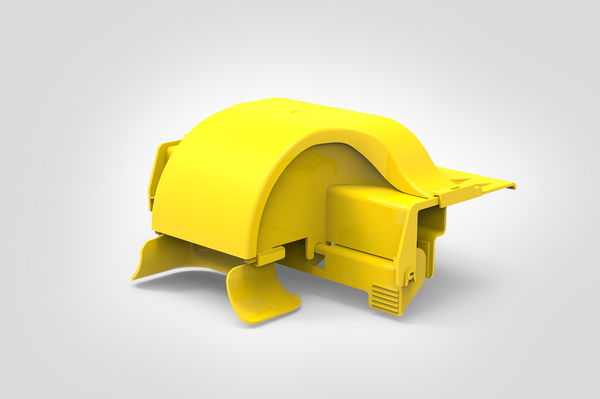

Express Waterfall Outlet with Trumpet.

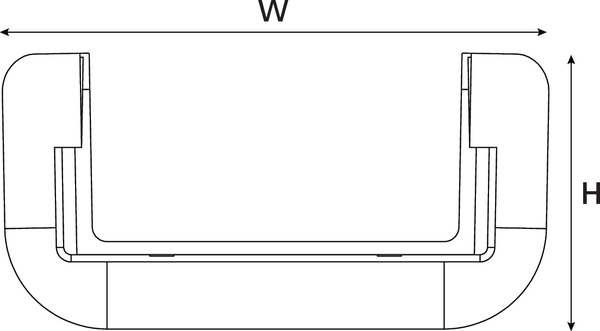

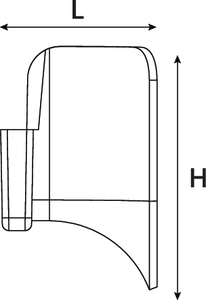

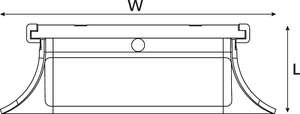

Outlet Trumpet.

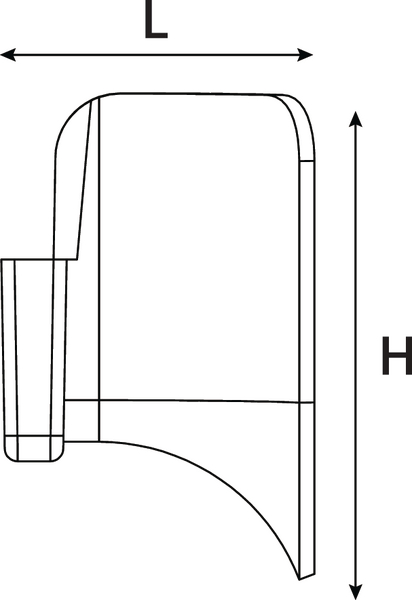

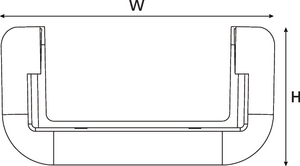

Outlet Trumpet.

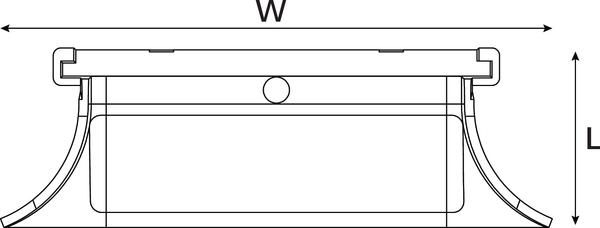

Outlet Trumpet.

    • For use with 100mm, 200mm and 300mm Express Waterfall Outlet
    • Protects cables by maintaining proper bend radius, preventing micro bends and macro bends that degrade performance
    • Supports professional cable management of existing fibre cables
    • Maintains attractive aesthetics by enclosing cables throughout the facility
    Add to watchlist
    Downloads CAD-Download
    Application Express Waterfall Trumpet maintains proper bend radius of fibre exiting the Express Waterfall Outlet.
    Colour Yellow (YE)
    PART DESCRIPTION LG-SMXXTX-YL
    Product Family Outlet Adaptors
    Product Group Express Waterfall
    Short Description GigaDuct Express Waterfall Trumpet, 100-300mm
    Technical Description The outlet trumpet attaches to the Express Waterfall Outlet, helping the exiting cable to meet bend radius requirements.
    Type LG-SMXXTX-YL
    Height (H) 75mm
    Length (L) 48mm
    Width (W) 147mm
    Halogen-free Yes
    Limited Fire Hazard Yes
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Dimensions W x H x D 147 mm x 75 mm x
    GTIN-13 / EAN 4031026497655
