MDU S5 8mm Tri-Tool


Art.-No. 857-40534

| LOCK-S5-TTG

 |

Copied

    • Chrome finish
    • 8mm triangular drive (industry standard)
    • Suitable for use with MDU-S5
    Add to watchlist
    Downloads

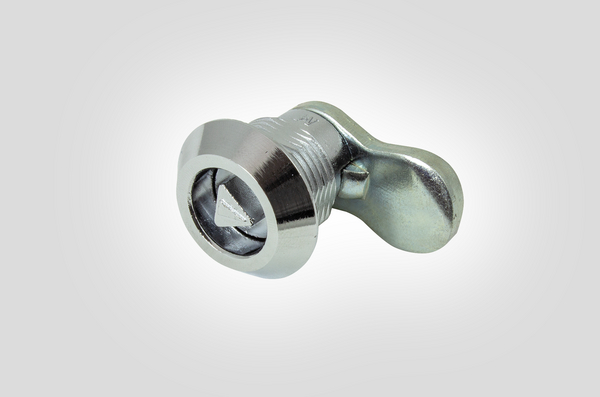

    Application A 8mm tri-drive cam lock suitable for use with the MDU-S5. The lock can be installed prior to despatch or can be retro fitted after installation.
    Content Lock
    Fittings
    PART DESCRIPTION LOCK-S5-TTG
    Package Content 1pc.
    Package Content packed in bag
    Product Description 1/4 turnTri Key lock for the MDU - S5.
    Product Family Fibre Optic Enclosure Accessories
    Product Group MDU S5 8mm Tri-Tool
    Technical Description An 8mm industry standard Triangular drive (tri-drive) cam lock which is suitable for use with the MDU S5 wall box. The lock has a chrome plated finish an is supplied with 30mm flat cam and all fixings. Key supplied separately.
    Type LOCK-S5-TTG
    UV-Stabilised No
    ELV compliant (Article 4 - 2) YES
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660166204
    Packaging 1 - Height (m) 0.03m
    Packaging 1 - Length (m) 0.15m
    Packaging 1 - Volume (m³) 0.00045m³
    Packaging 1 - Weight (kg) 0.082kg
    Packaging 1 - Width (m) 0.10m
    ETIM 7.0 Key EC002609
    ETIM 8.0 Key EC002609
    ETIM 9.0 Key EC002609
    UNSPSC Key 43223338
