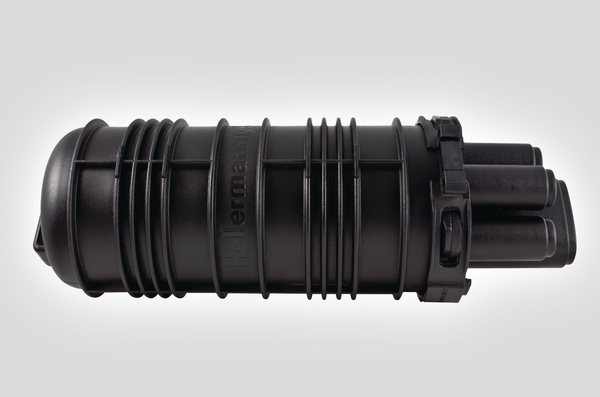

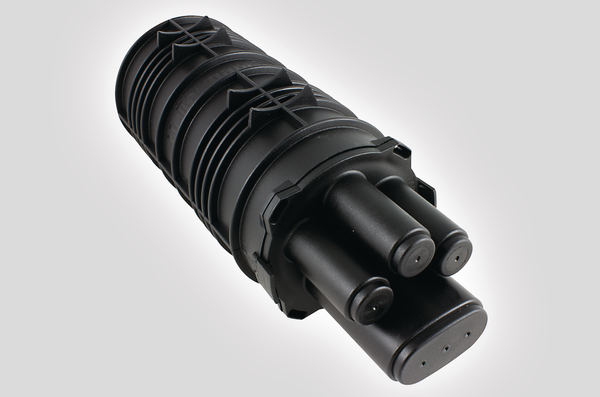

MRBU 30 Pair Closure

Art.-No. 857-10051

| MRBTB-AXXFXXX

|

Maximum 30 pair cable capacity
Cover length of 310mm
4 port base configuration which offers 3 round ports and 1 oval port
Cablelok compatible for all port sizes
Quick release cover

Add to watchlist

Distributors near you

Downloads

More products in this product group:

MRBU 30 Pair Closure

Base Data

Content	MRBU 4 Port Base A-Length Cover Quick Release Clamp Sealing 'O' Ring Desiccant Cable Ties
Cover Type	A
Method of Sealing	Cablelok, Heatshrink
PART DESCRIPTION	MRBTB-AXXFXXX
Package Content packed in	box
Port	LM, B
Port count	4
Product Group	MRBU 30 Pair Closure
Technical Description	The MRBU closure is supplied with a polypropylene base and base configuration of 3 round ports and 1 oval port which cover a cable diameter of 4.8 - 16.5mm when using Cablelok mechanical seals and 6.0 - 22.0mm when using heatshrink. The cover diameter and length and 110 x 310mm and each closure has a maximum capacity of 30 copper pairs.
Type	MRBTB-AXXFXXX

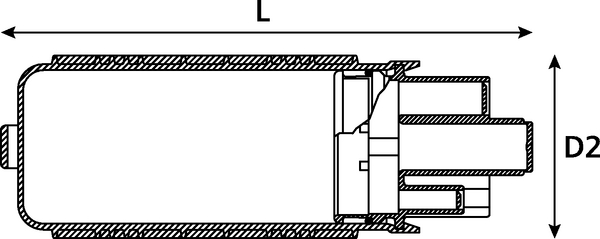

Product Dimensions

Length (mm)	310mm
Width D1	110mm
Width D2	110mm

Specifications

ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660114861
Packaging 1 - Height (m)	0.15m
Packaging 1 - Length (m)	0.55m
Packaging 1 - Qty	1
Packaging 1 - Type	box
Packaging 1 - Volume (m³)	0.012375m³
Packaging 1 - Weight (kg)	0.5kg
Packaging 1 - Width (m)	0.15m

More Information

ETIM 7.0 Key	EC003517
ETIM 8.0 Key	EC003517
ETIM 9.0 Key	EC003517
