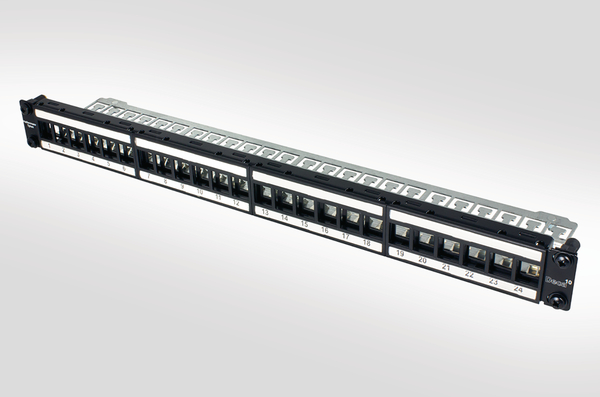

Modular Shielded 24 Port Panel : PP24G6A-PA1URS-FD.XX

1U FlatArticle number: 853-55000


  • Shielded 24 ports
  • Flat 1U presentation
  • Integral rear management bar
  • Dual labelling fields
  • Accepts HT Connectivity shielded keystone jacks
  • Supplied with Rack Snaps, earth cable & cable ties
Colour Black (BK)
Local order number PP24G6A-PA1URS-FD.XX
Pack Cont. 1pc.
Performance Category Modular
Port count 24
Product Family 1U Flat
Product Group Modular Shielded 24 Port Panel
Short Description 1U 24 Port Shielded Keystone Patch Panel
Technical Description Manufactured from black powder coated mild steel and galvanised integral rear management bar. The rear management bar bonds each keystone jack to earth eliminating opportunities for alien cross talk. Each panel is designed to accept HellermannTyton Connectivity's shielded keystone jacks which are avilable in CAT6A and CAT6. (For CAT5e applications we recommend using the CAT6 shielded jack) They are supplied as standard unloaded but include rack snaps, 2.5mm earth cable and cable ties.

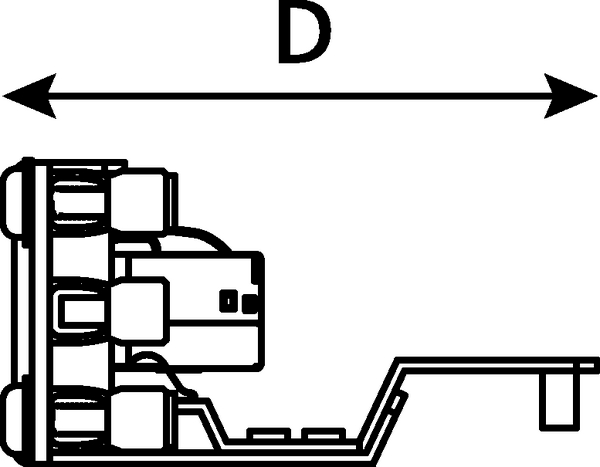

Depth (D) 85.0mm
Height (H) 44.0mm
Height, Units 1U
Width (W) 483.0mm
Dimensions W x H x D 483.0 mm x 44.0 mm x 85.0 mm
GTIN-13 / EAN 5022660993190
UNSPSC Key 39121444
