FTTH Customer Connection Point (CCP)

View in 3D

View this product in our interactive viewer

You can spin around (swipe or click and hold left hand mouse button), zoom in (pinch fingers or rollerball on your mouse) and open the lid/tray by clicking on the top navigation buttons.

Introduction

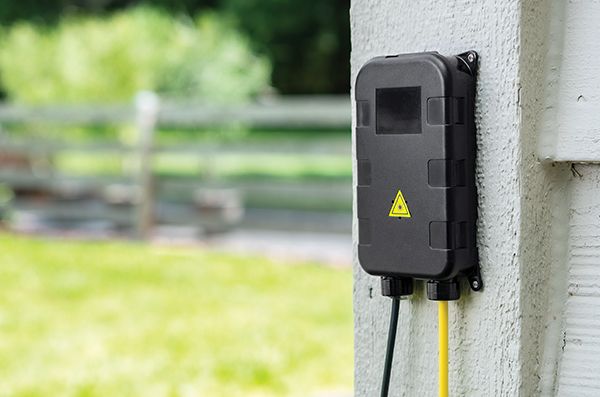

Compact design with IP68 sealing performance

Compact design with IP68 sealing performance

The Customer Connection Point (CCP) is a Building Entry Point (BEP) which provides a fibre termination and network demarcation point external to the connected premise in a Fibre to the Home (FTTH) network. It also presents a network test point outside of the customer location.

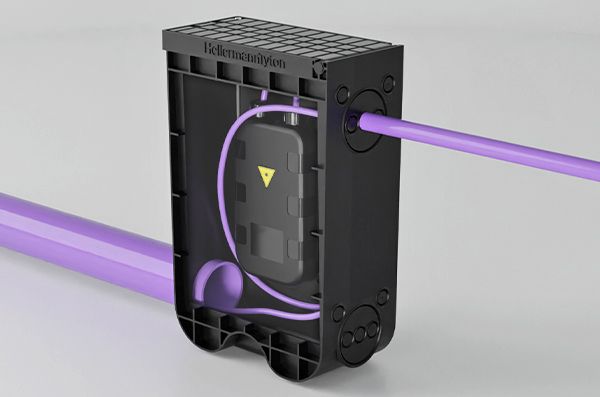

It’s high (IP68) sealing performance and a compact design allows it to be housed in a small subterranean access chamber (eg: “Toby Box”) or wall/facade mounted whilst protecting the fibre connection point from water and dirt. Incoming and outgoing cables are sealed at the base of the CCP using a quick twist lock sealing mechanism. A vent gauze breather membrane prevents internal condensation. The CCP can also be surface mounted to the wall with an optional sealed rear cable entry/exit point enabling the drop cable to pass directly into the premises.

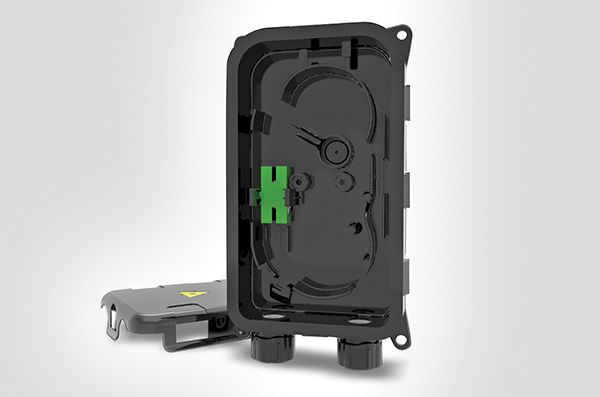

Features and Benefits

Features and Benefits

Features and Benefits:

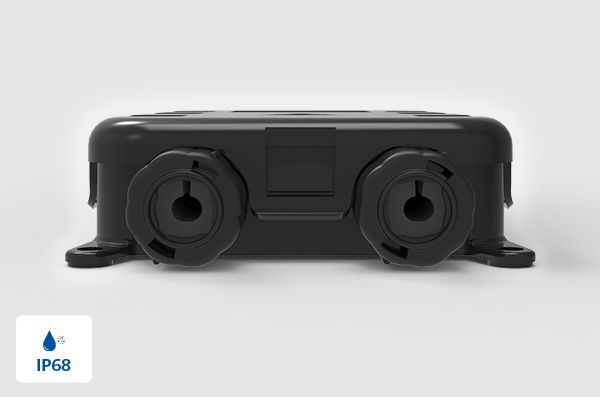

  • IP68 sealing gives a high level of performance to prevent dirt and moisture ingress

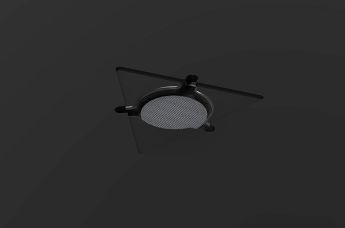

  • Optional vent gauze feature to prevent moisture condensation
  • 3 sealed cable entry points, two at the base and one in the rear of the enclosure

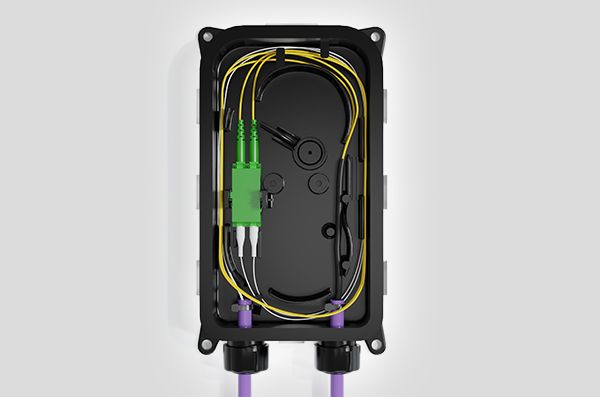

  • Positive fibre management to enable the use of both G652D or G657 single mode fibre types
  • Bend radius managed through-the wall port with IP55 environmental sealing
  • Minimum fibre bend radius of 30mm throughout

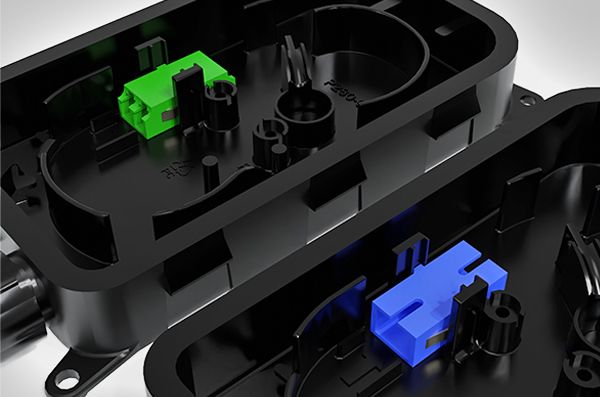

  • Mounting for 2 off SC SX or LC DX connections
  • Splice protector storage for 3A or ANT sleeves
  • Mechanical fixing for cable strength member
