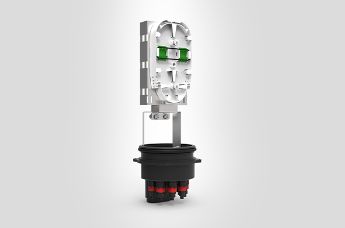

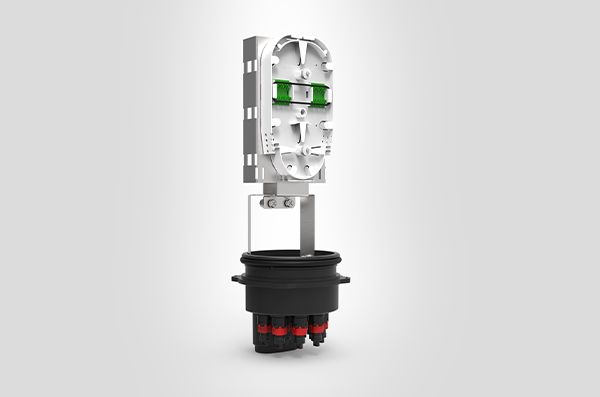

FRBU IP9

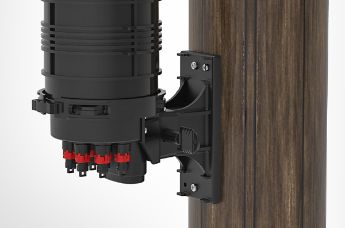

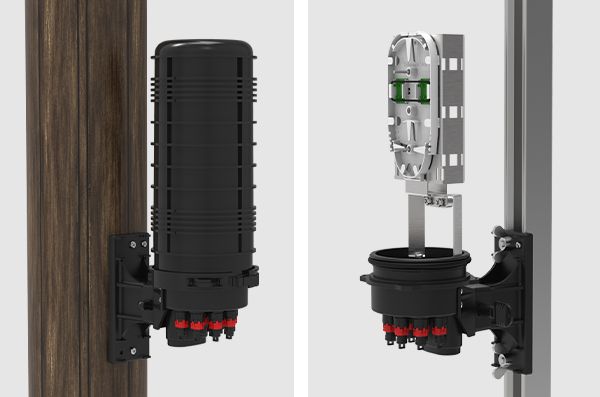

A robust, IP68-rated closure built for harsh environments. With 8 IP9 SC/APC ports and 1 flexible oval port, it's designed to handle a variety of fibre connections. Stainless steel mounting and integrated splice trays offer easy installation and maintenance.

• Superior Protection: Shield your network from harsh conditions with our IP68 rated enclosure
• Scalable Connectivity: Easily expand your network with our flexible port configuration
• Simplified Deployment: Quick and easy installation with pre-installed components
• Optimised Performance: Enhance network performance with built-in PLC splitters
• Streamlined Maintenance and Troubleshooting: Organised splice tray management simplifies troubleshooting and maintenance tasks

Features and benefits:

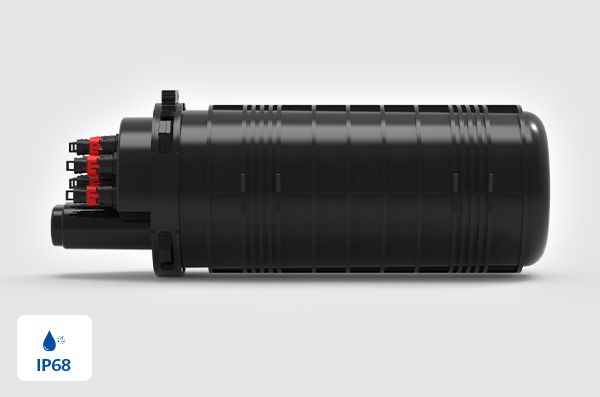

• Manufactured to IP68 – BS EN 50411-1-2-4-2012

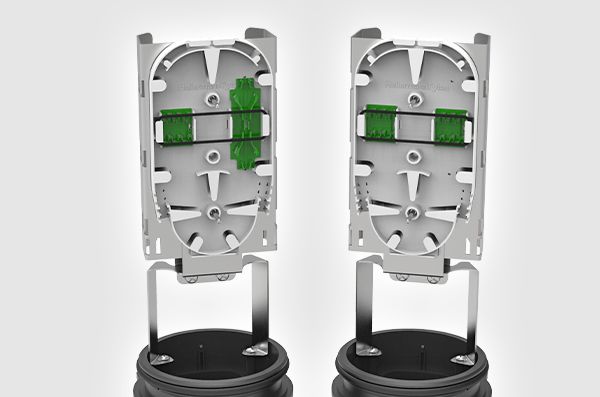

• Available in P2P and P2MP configurations
• P2MP configurations supplied with 1:4 or 1:8 bare end to SC/APC pre-connectorised PLC splitters
• Compliant with IEC 61753 and 61300-3-34
• 8 SC/APC hardened connector ports
• 1 oval port for loop through applications
• Maximum 24 splices per tray (double stacked)
• Fitted with 2 Hellapon Small splice trays
• Quick release cover

View in 3D

You can spin around (swipe or click and hold left hand mouse button), zoom in (pinch fingers or rollerball on your mouse) and change various features by clicking on the top navigation buttons.

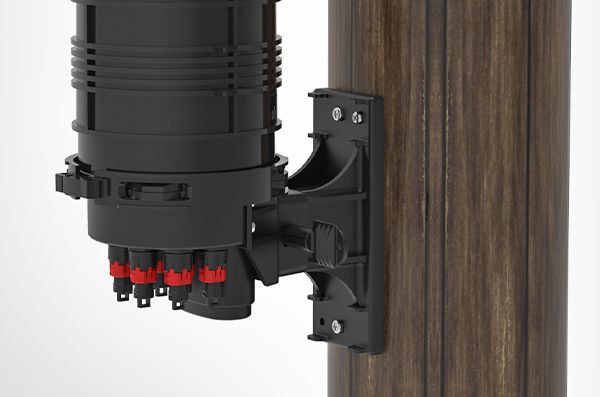

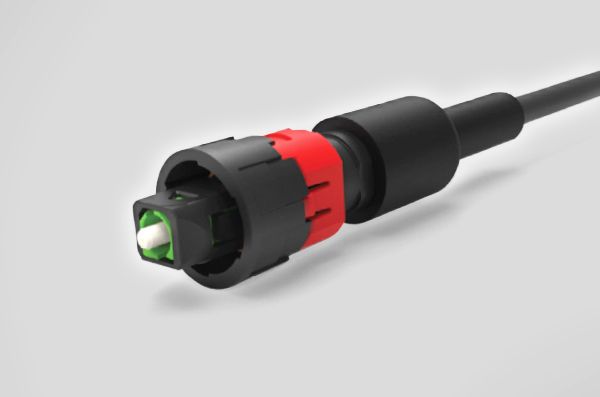

Ideal for aerial fibre optic networks, IP9 connectors are ruggedised, outdoor-rated connectors built to withstand challenging environments. Their small footprint, IP68 rating, and bayonet-style locking make them a reliable choice for demanding deployments.

Purpose:

• They are specifically designed for applications like FTTH (Fibre to the Home) and FTTA (Fibre to the Antenna), which require reliable connections in outdoor settings.
• They are built to withstand environmental factors such as dust and water.

Key Features:

• IP68 Rating: This signifies a high level of protection against dust and water ingress.
• Ruggedised Design: They are designed to withstand significant pull force, enhancing their durability.
• Small Footprint: They are designed to save space, which is valuable in many installations.
• Varied Configurations: IP9 connectors are available in various fibre configurations, including SC, SN, and MPO, allowing for flexibility in network design.

Applications:

These connectors are used in outdoor fibre optic deployments, including: telecommunications networks, 5G infrastructure and broadband installations.
