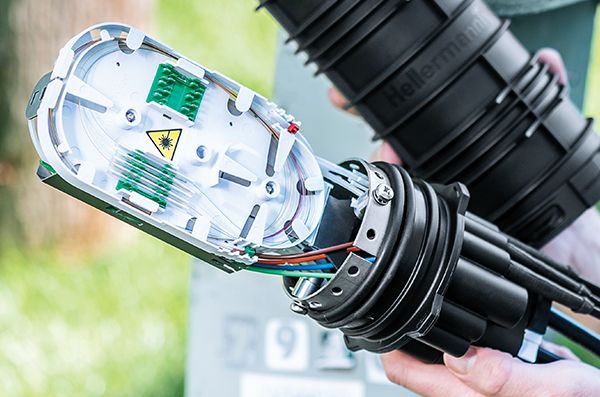

FST Dome Closure

The FST fibre splice closure distributes fibre directly to individual buildings or properties. The FST is HellermannTyton’s smallest fibre closures (310mm) that is often deployed in rural and less built up locations with fewer buildings to connect.

FST Base Types:

• 4 Port
• 13 Port

The FST closure is supplied with a Polypropylene base. With base configurations of either 12 or 3 round ports and 1 oval port, the FST accommodates a cable diameter range of 1.7 – 16.5mm when using Cablelok mechanical seals and 6.0 – 22.0mm when using heatshrink (4 port only).

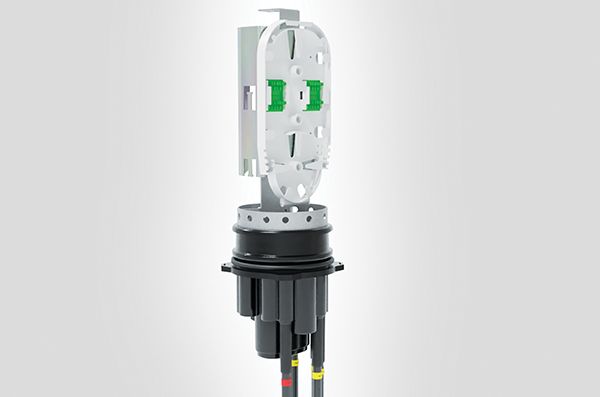

The mounting system is manufactured from Grade 304 stainless steel and can accommodate a maximum of 3 Hellapon Small trays or 1 Hellapon Small tray and basket, giving a maximum of 36 fibre splices based on 12 splices per tray. The FST closure can be supplied with splice trays offering either 3A or ANT splice bridges.

The fibre basket provides space for the storage of fibre loops within the closure.

The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.

• Smallest dome closure in the range at 310mm
• Maximum 36 fibre splice capacity
• 12 or 3 round ports and 1 oval port
• Accommodates Hellapon Small trays
• Fibre storage basket for loop through applications (Hellapon Small 1 tray version only)
• Maximum 12 splices per tray
• 3A and ANT splice options available
• Splitter accommodation
• Cablelok compatible for all port sizes
• Quick release cover
