G-WRAP-400

View in 3D

You can spin around (swipe or click and hold left hand mouse button), zoom in (pinch fingers or rollerball on your mouse) and change various features by clicking on the top navigation buttons.

Introduction

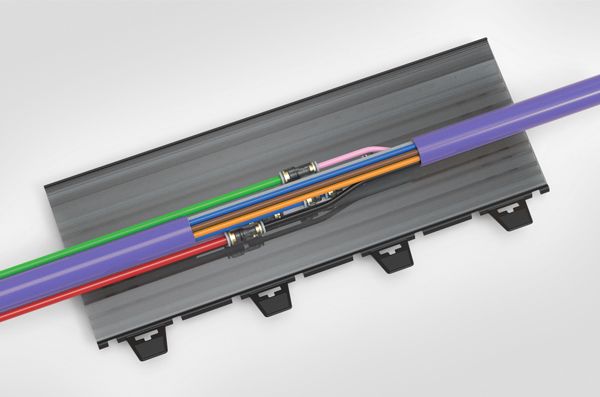

More about the G-WRAP-400

The G-WRAP-400 Seal from HellermannTyton has been designed to seal ducting in any stage of the network. The G-WRAP-400 is suitable for use with HellermannTyton direct buried and PIA multi-duct within a diameter range of 15mm to 25mm.

The G-WRAP-400 can be used with a multi-duct bundle for branching joints where single duct(s) is taken from the bundle and routed to a customer connection point or another fibre connection point within the network.

It's built-in gel layer helps provide a full seal around the duct bundle enclosed inside the wrap closure. The G-Wrap is then fastened using it's 4 buckle straps and the 8 cable ties supplied with G-Wrap. Once secured the G-Wrap offers an excellent IP68 seal protecting the bundled duct from water, dust and dirt.

Features and benefits

  • Gel layer provides IP68 seal
  • 410mm long
  • Low profile
  • Suitable for multi-duct diameters 15mm – 25mm
  • Quick & easy installation
  • Re-openable & re-useable
  • UV stable
  • Supplied with 8 x HellermannTyton Cable Ties and Branch Spacer Ring
  • Installation temperature range -30°C to 60°C

Features at a glance

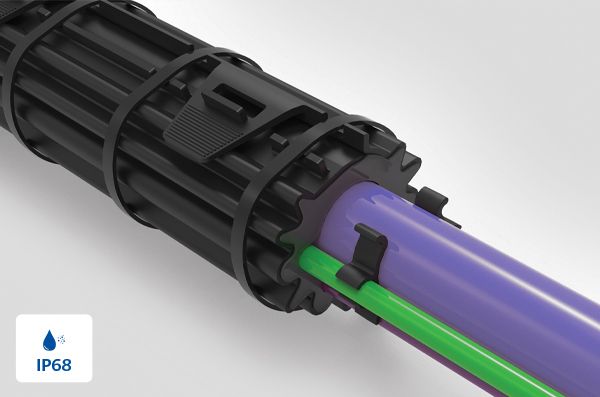

IP Rating 68

IP Rating 68

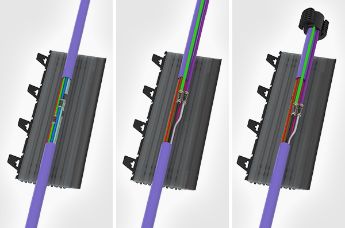

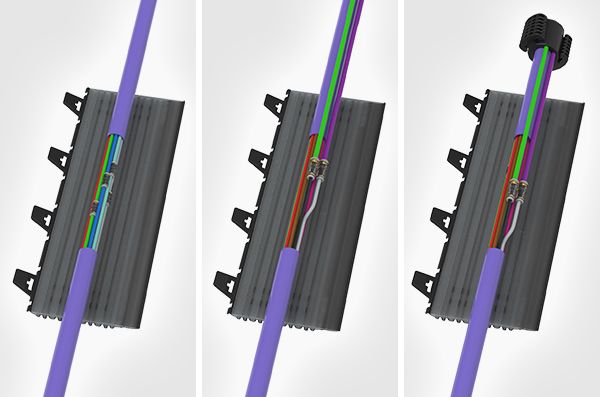

Multiple Connection Types: Straight Joint, Branch Window Cut and Drop off

Multiple Connection Types: Straight Joint, Branch Window Cut and Drop off

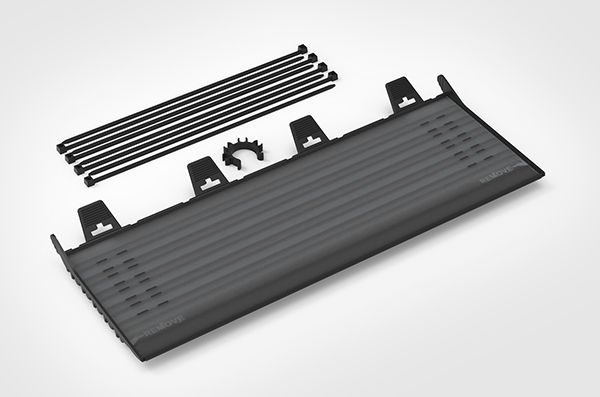

Complete Kit  includes cable ties and branch spacer ring.

Complete Kit includes cable ties and branch spacer ring.

Video

G-Wrap-400 Gel Duct Seal
