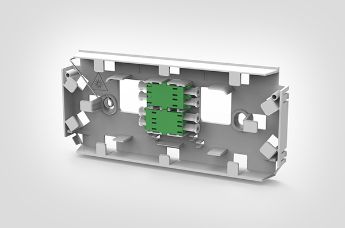

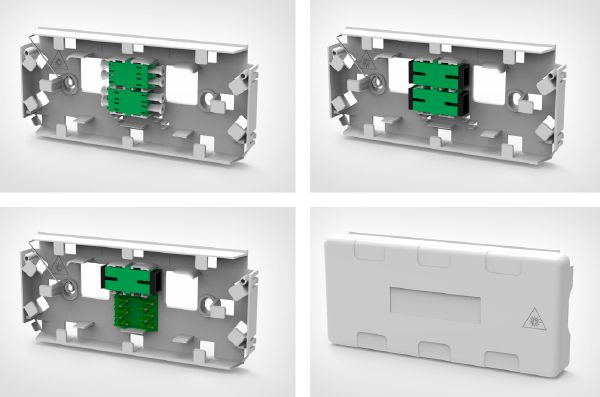

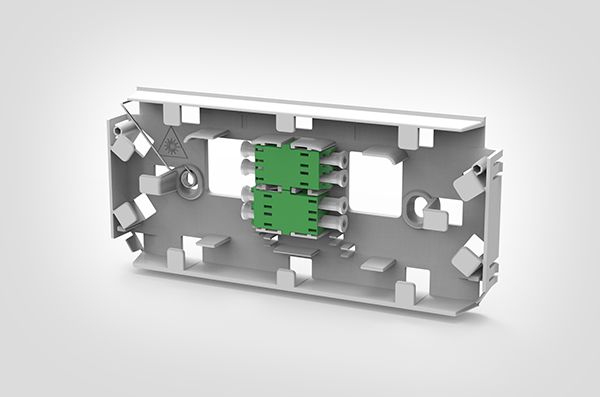

Internal Corridor Box (ICB)

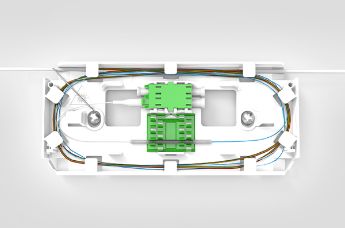

The ICB provides a connection point within the MDU environment. The enclosure allows a multi-fibre cable up to 2.8mm or internal duct up to 5.0mm (maximum outer diameter) to be routed along a corridor. Up to 2m of cable can be stored inside the box (or 3m if stripped back fibre).

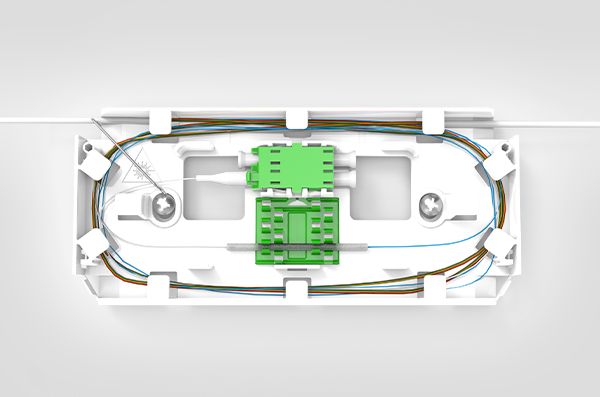

The midspan capability allows one fibre to be dropped off at each customer location allowing the remainder of the cable to feed additional customer connections.

• Max. 4 customer connections
• Up to 12 x 3A / ANT splices
• Small, low-profile design
• Easy installation

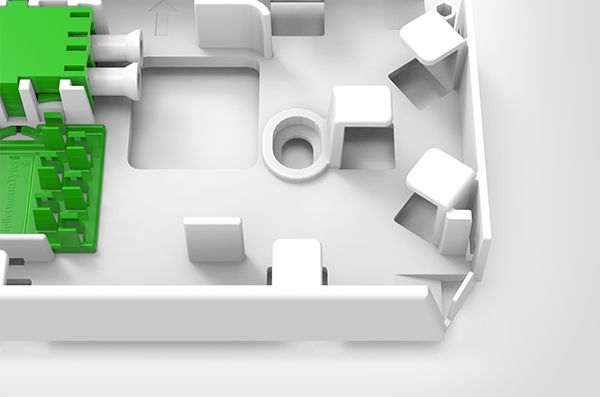

• Simple to use knockouts on each corner for diverting cables to desirable positions
• IP20 and IK07 rating

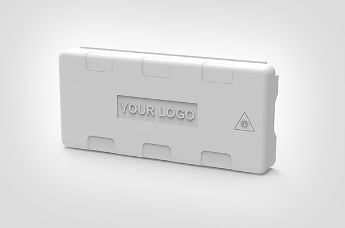

• Clipped on cover
• UL-94 V0 rating
• 66 x 144 x 15mm (HxWxD)

View in 3D

You can spin around (swipe or click and hold left hand mouse button), zoom in (pinch fingers or rollerball on your mouse) and change various features by clicking on the top navigation buttons.
