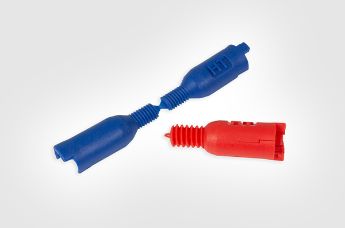

Rod End Caps

View in 3D

You can spin around (swipe or click and hold left hand mouse button), zoom in (pinch fingers or rollerball on your mouse) and change various features by clicking on the top navigation buttons.

Introduction

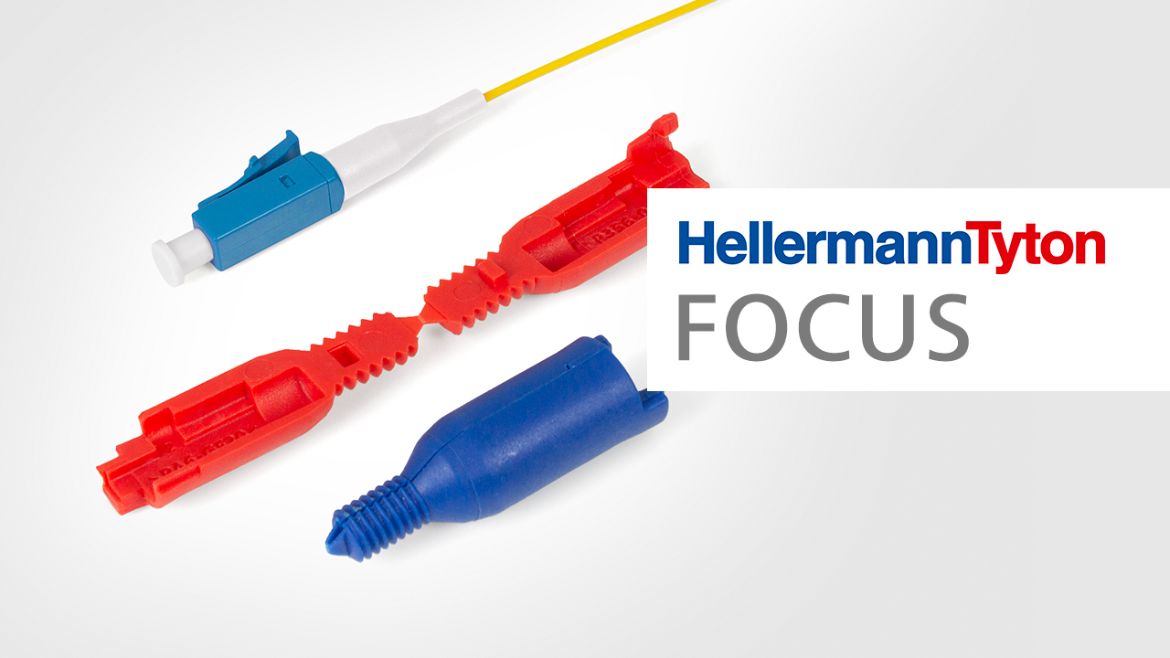

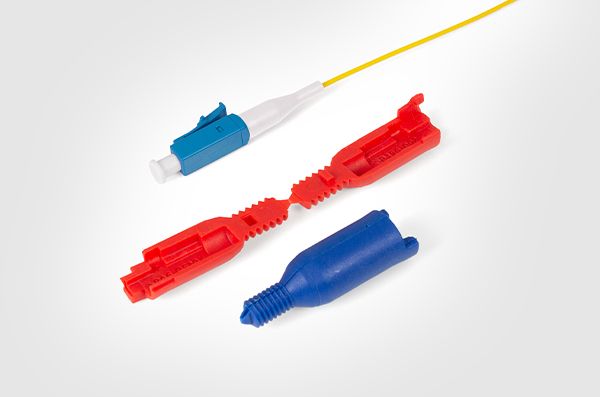

More about the Rod End Caps

The cable rod end cap for LC connectors has been designed to cover the entire LC connector and allows the fibre installer to pass fibre cables through any wall cavity safely, preventing the connector from damage or dust.

This clever attachment complements other cable rod accessories used for cable installations and delivers an ideal solution for professional fibre optic installations. The cable rod end cap is manufactured from glass filled nylon and is available in two versions to fit two types of threads: 1/4” – 20 UNC and M5 x 0.8 making it compatible with most cable rods including HellermannTyton’s Cable Scout range.

The maximum pull-out force is 80N. Tensile load of cable will be specified by the cable manufacturer.

The cable rod end cap initially has been designed as a disposable accessory but if it remains in good condition after the first use, it can be used again up to 3-4 times.

Cable rod end caps for SC connector will be available upon request.

Features and benefits:

  • Designed to protect the LC connector whilst pushing it through walls
  • Fits at the end of the most standard cable rods (two versions)
  • Quick and easy to use
  • Supplied in a pack of 25



Features at a glance

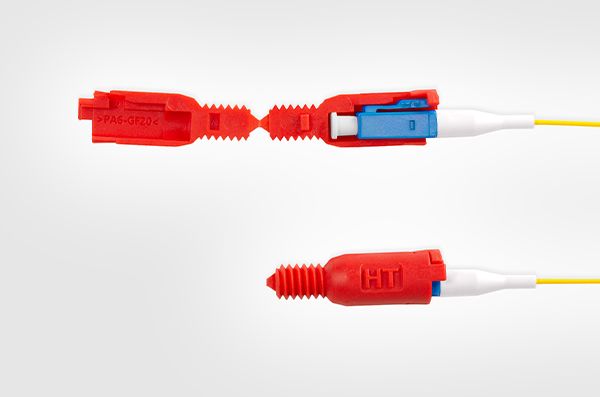

Designed to protect the LC connector

Designed to protect the LC connectors

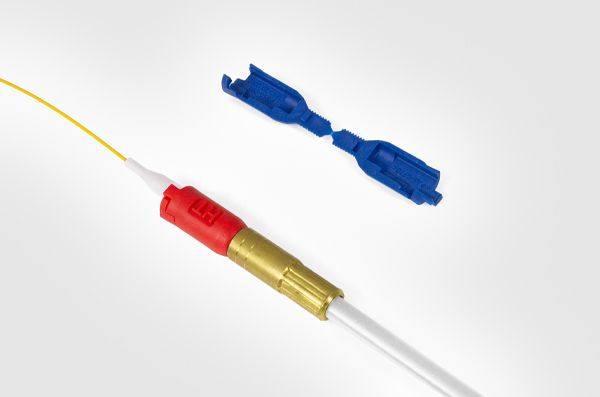

Fits cable rod sizes 1/4” 20 UNC and M5 x 0.8

Fits common cable rod sizes
1/4” 20 UNC and M5 x 0.8

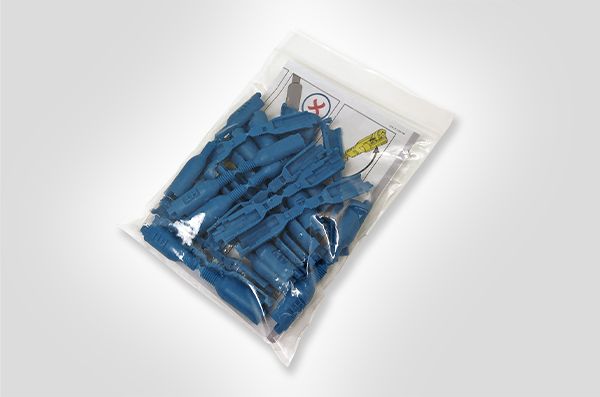

Supplied in a pack of 25

Supplied in a pack of 25
