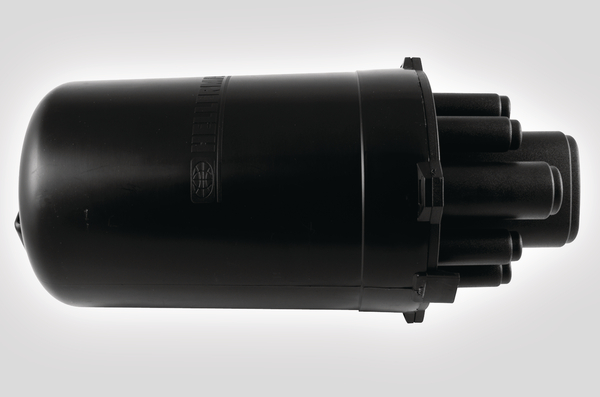

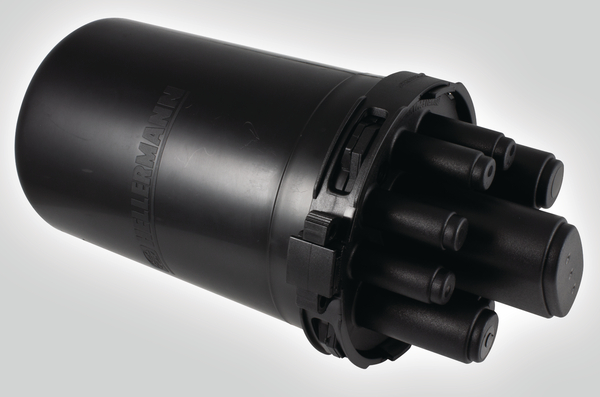

RBU 50 Pair Closure

Art.-No. 857-10050

| RBUTB-AXXEXXX

|

Maximum 50 pair cable capacity
Cover length of 269mm

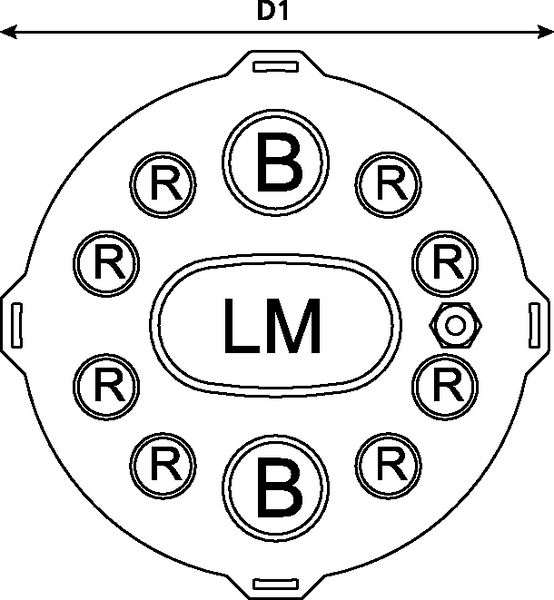

Single base configuration 11 ports (10 round ports and 1 oval port)
Cablelok compatible for all port sizes
Quick release cover

Add to watchlist

Distributors near you

Downloads

More products in this product group:

RBU 50 Pair Closure

Base Data

Content	RBU 11 Port Base A-Length Cover Quick Release Clamp Sealing 'O' Ring Desiccant Cable Ties
Cover Type	RBU
Method of Sealing	Cablelok, Heatshrink
PART DESCRIPTION	RBUTB-AXXEXXX
Package Content packed in	box
Port	LM, B, R
Port count	11
Product Group	RBU 50 Pair Closure
Technical Description	The RBU closure is supplied with a Polypropylene base. A single configuration of 10 round ports and 1 oval port which covers a cable diameter of 1.7 - 16.5mm for the 11 port base when using Cablelok mechanical seals and 6.0 - 22.0mm for the 11 port base when using heatshrink (R ports excluded). The cover diameter and length are 130 x 269mm and the closure has a maximum capacity of 50 copper pairs.
Type	RBUTB-AXXEXXX

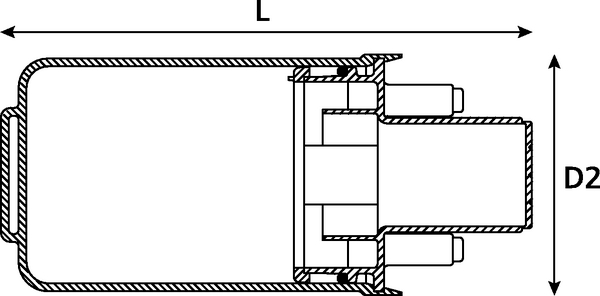

Product Dimensions

Length (mm)	269mm
Width D1	130mm
Width D2	130mm

Specifications

ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660114854
Packaging 1 - Height (m)	0.15m
Packaging 1 - Length (m)	0.55m
Packaging 1 - Qty	1
Packaging 1 - Type	box
Packaging 1 - Volume (m³)	0.012375m³
Packaging 1 - Weight (kg)	0.5kg
Packaging 1 - Width (m)	0.15m

More Information

ETIM 7.0 Key	EC003517
ETIM 8.0 Key	EC003517
ETIM 9.0 Key	EC003517
