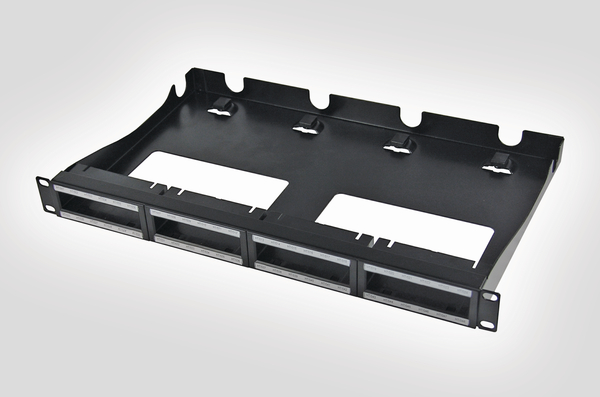

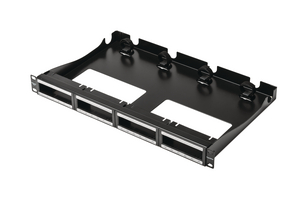

1U Rear Cable Management Panel with Cage Nuts
Art.-No. 859-30048 | RNA6UXX-PB1UCN-XX.XX Details

  • Accommodates 4 standard RapidNet Cassettes
  • Dual label fields with magnifying lenses
  • Supported rear cables
  • Multiple cable fixing locations
  • Multiple rear entry points
  • Vertical cable protection
Show more
Colour Black (BK)
PART DESCRIPTION RNA6UXX-PB1UCN-XX.XX
Pack Cont. 1pc.
Product Description HellermannTyton's RapidNet Panel with rear cable management provides support and protection for MTP backbone and fibre cables within a cabinet or patching frame. The panel can also be used with the RapidNet direct terminated fibre solution, RapidNet MTP VHD or UTP copper RapidNet Cassettes, providing additional rear cable management and enabling a 'mix and match' approach between copper and fibre. A range of fixing points are provided in the rear of the panel to secure cables and provide strain relief for the MTP connectors and adapters. 25mm conduit (available as kits) then supports and protects the cables from the panel to the horizontal cable routes. Multiple rear entry points are provided for the conduit tubing to enable maximum flexibility.
Product Family 1U Rear Cable Management Panel
Product Group RapidNet Accessories
Short Description 1U Rear Cable Management Panel with Cage Nuts
Technical Description The RapidNet panel is manufactured from 1.5mm matt black powder coated mild steel making it rigid and robust. The panel is supplied with Cage Nuts as standard, panels can also be supplied with Rack Snaps, screw fixings or without fixings if required. The panel has dual labelling fields with a magnifying lens which can be customised through Alpha Label software at www.htdata.co.uk.
Type RNA6UXX-PB1UCN-XX.XX

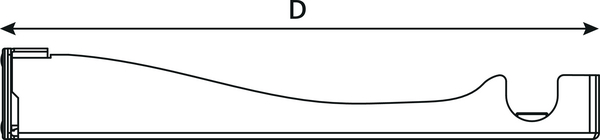

Depth (D) 289mm
Height (H) 44mm
Width (W) 483mm
Country of Origin GB

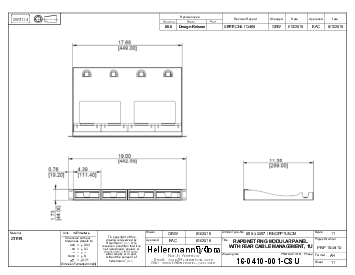

Dimensions W x H x D 483 mm x 44 mm x 289 mm
GTIN-13 / EAN 5022660103568
UNSPSC Key 43223309
