04/11/2024

RapidNet 1U 6 Port Cassette Angled Panel with Cage Nuts
Art.-No. 859-30059 | RNA6UXX-PE1UCN Details

Colour Black (BK)
PART DESCRIPTION RNA6UXX-PE1UCN
Package Content packed in box
Port count 24
Product Description The 1U 24 port panel accommodates four 6 port short body Category 6A, Category 6, Category 5e cassettes and the full range of Fibre Fanout Modules. The angled design of the panel removes the need for the use of front cable management increasing capacity by up to 50%. The panel offers dual labelling for each cassette and a central labelling for U identification and is supplied with Cage Nut fixings as standard. The RapidNet short body cassettes and fibre fanout modules simply push into the panels, snapping in with a push down clip. A fully loaded panel presents 24 Category 6A, Categroy 6 or Category 5e RJ45 ports. An optional rear cable manager is also available.
Product Family Angled 6 Port 1U RapidNet Panel
Product Group RapidNet Accessories
Short Description RapidNet 1U 6 Port Cassette Angled Panel with Cage Nuts
Technical Description The RapidNet Angled panel is manufactured from 1.6mm powder coated mild steel making it rigid and robust. The panel has a matt black finish and is screen printed with port numbers 1 to 24 as well as clear port identification labelling areas for easy user identification which can be customised through Alpha Label software at www.htdata.co.uk. The panels is supplied with Cage Nuts as standard, panels can also be supplied with Rack Snaps, screw fixings or without fixings if required
Type RNA6UXX-PE1UCN

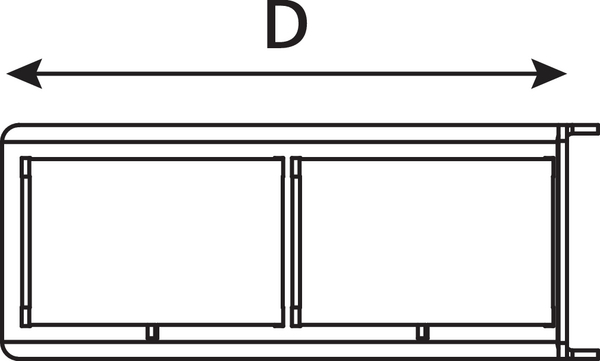

Depth (D) 106mm
Height (H) 44mm
Width (W) 482mm
Country of Origin GB
Dimensions W x H x D 482 mm x 44 mm x 106 mm
GTIN-13 / EAN 5022660128660
