31/10/2025

RapidNet 12 LC Fibre Adaptors Mounting Module
Art.-No. 859-21912 | RNAFD12-LCDBG |

Copied

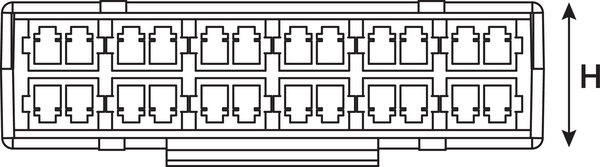

24 LC Fibre Adaptor Mounting Module (front view)
24 LC Fibre Adaptor Mounting Module (side view)

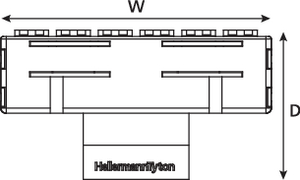

24 LC Fibre Adaptor Mounting Module (top view)

    • Ideal for installations with limited access or restricted space
    • Allows ruggedised fan outs to be presented in RapidNet Panels
    • Fits into a standard RapidNet Panel
    • Maximum of 96 fibres in 1U of Space
    Add to watchlist
    Colour Beige (BGE)
    Connector Colour Beige (BGE)
    Connector Type LC, LC Duplex
    PART DESCRIPTION RNAFD12-LCDBG
    Package Content packed in bag
    Performance Category Multimode
    Port count 12
    Product Description The RapidNet Fibre Adaptor Mounting Module has been designed to allow the RapidNet solution to be used in areas with limited access or restricted space where a RapidNet Cassette cannot be used.
    The module is pre-loaded with adaptors which allows ruggedised fan outs to be presented in RapidNet panels and offering a maximum of 24 fibres in a single adaptor which equates to 96 fibres in 1U of space.
    Product Family 24 Core LC Cassette
    Product Group LC Fibre Adaptor Mounting Module
    Short Description RapidNet 12 LC Fibre Adaptors Mounting Module
    Technical Description The LC Fibre Adaptor Mounting Module is supplied in a 12 hole configuration fitted with single mode or multimode LC adaptors.
    The LC Fibre Adaptor Mounting Module is suitable for use with HellermannTyton Cassette to Fan Out, Fan Out to Fan Out and MTP Trunk/Backbone cables. All HellermannTyton fan out cables are supplied in a protective nylon sock to prevent damage during installation.
    The mounting module can be used in any RapidNet panel; however it is recommended that it is used with the Distribution Chassis or Rear Cable Management Panel as both panels offer rear cable management for the fan out cable, providing cable protection inside the rack or cabinet.
    NB: Part numbers are given for the standard LC connectors, other colour options for the Keyed LC adaptor and 6 hole configuration are available on request.
    All fibre adaptors and connectors comply with the latest published version of IEC874-14 ensuring interoperability.
    Type RNAFD12-LCDBG
    Depth (D) 60mm
    Height (H) 27mm
    Width (W) 102mm
    Optical Performance Multimode
    Country of Origin GB
    Dimensions W x H x D 102 mm x 27 mm x 60 mm
    GTIN-13 / EAN 5022660119576
