Out Of Rack - 1U Space/2U RapidNet
Art.-No. 854-20025 | RNAORC2 |

Copied

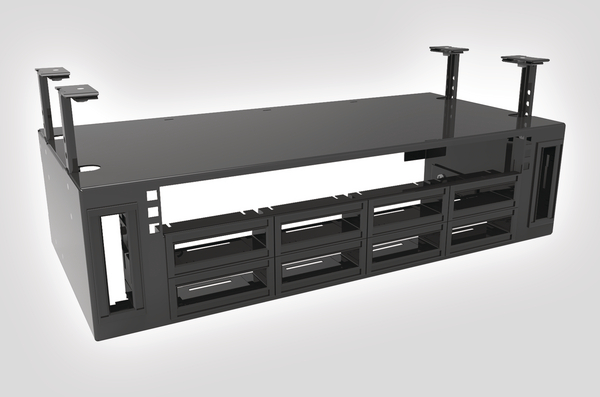

Out of Rack with 1U of space and 2U of RapidNet Connectivity

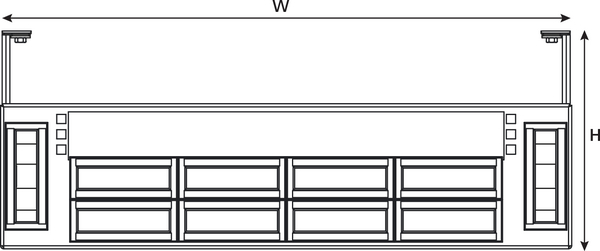

Out of Rack with 2U of RapidNet and 1U of Rackspace (front view)

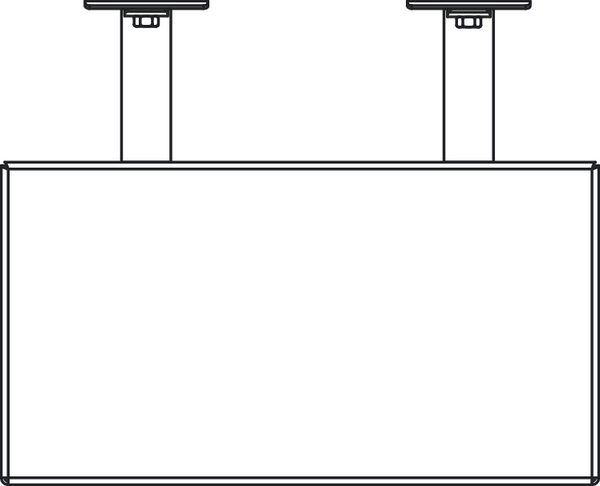

Out of Rack (side view)

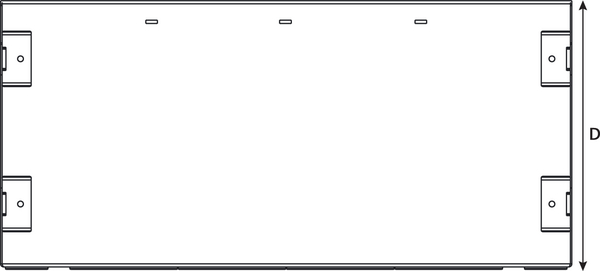

Out of Rack (top view)

    • 2U RapidNet Ready
    • 2 Zero U Cassette Locations
    • Maximum capacity 60 Copper Ports or 1440 Fibres
    • 600mm width for the narrowest server rack
    • Fits any 50mm pitch basket tray
    • Vertical cable management into the rack or cabinet
    Add to watchlist
    Downloads
    Colour Black (BK)
    Local order number RNAORC2
    PART DESCRIPTION RNAORC2
    Product Description This Out of Rack configuration provides 2½U of space which will accommodate 6 port UTP copper and fibre RapidNet cassettes providing a maximum capacity of 60 copper ports of 1440 fibres (when using RapidNet MTP VHD) or a combination of both.
    The remaining 1U of space can be used to accommodate a 1U switch or other active equipment.
    Out of Rack accessories are available on request and include gland/conduit kits, basket trays and mini patch leads.
    Product Family Out Of Rack - 1U Space/2U RapidNet
    Product Group Cable Management Accessories
    Short Description Out Of Rack - 1U Space/2U RapidNet
    Technical Description This Out of Rack is manufactured from black powder coated mild steel and is designed to house the majority of network patching and connectivity above the rack or cabinet.
    Type RNAORC2
    Depth (D) 278mm
    Height (H) 225mm
    Width (W) 590mm
    Country of Origin GB
    Dimensions W x H x D 590 mm x 225 mm x 278 mm
    GTIN-13 / EAN 5022660106088
    ETIM 7.0 Key EC000022
    ETIM 8.0 Key EC000022
    ETIM 9.0 Key EC000022
