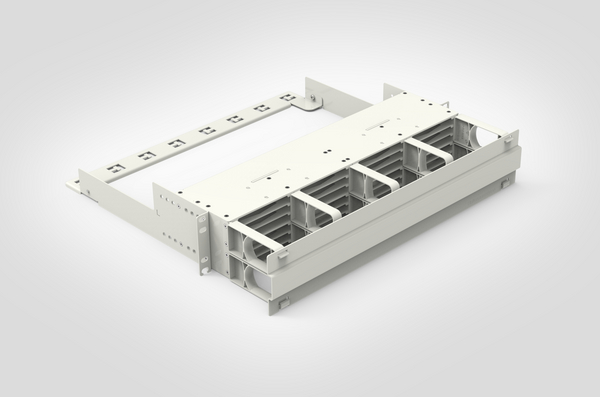

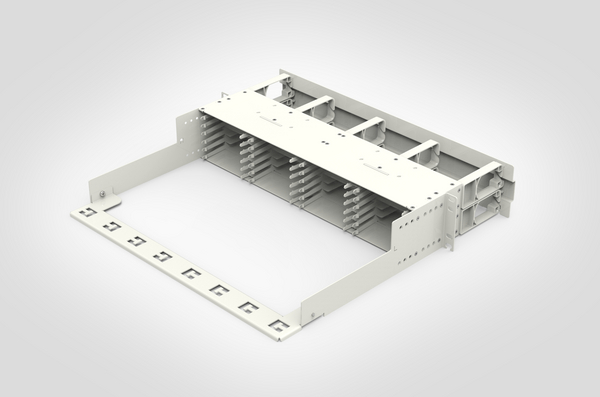

RN Ultra 2U 19" Panel Housing For Ultra12 Cassettes - White
Art.-No. 859-30077 | RNU2U12WH Details

  • High fibre density: LC 144F, CS 216F, SN 288F per U
  • Rear-loading cassettes
  • Integrated rear cable management
  • Integrated front patchcord management rings
  • Adjustable mounting brackets
  • Patching field swing down cover
  • Identification label matrix
  • 19” Mounting profile
  • Signal White RAL 9003
  • Fast, one person installation
Show more
Application High Density Fibre System, Data centre, AI, Enterprise, Co-Location, Hyperscale.
Colour White (WH)
PART DESCRIPTION RNU2U12WH
Performance Category Modular
Product Description 2U 19" Panel Housing to support RapidNet Ultra12 cassettes. Avaialable in RAL 9003 Signal White.
Product Family 2U 19"Rack Mountable for Ultra12 Cassettes
Product Group Data Centre High Density Fibre Panel Housing
Short Description RN Ultra 2U 19" Panel Housing For Ultra12 Cassettes - White
Technical Description 19” panel housings available in 1U, 2U, 3U & 4U heights for ULTRA12 cassette footprints. Each housing comes standard with integrated rear cable management support for managing and anchoring incoming cables, conduit or breakout manifolds. Adjustable side mounting brackets allow the panel to be recessed. Integrated front patchcord management rings support high density patching by helping to maintain correct bend radius, directing cables naturally into vertical management and remove the need for additional horizontal management. The pivoting door woth port I.D. matrix maintains protection for the patching field and offers a clean look. The door swings down and can be fully removed. The 19” panel housing comes pre-assembled with mounting kit and rear manager to fit onsite.
Type RNU2U12WH
Height, Units 2U
Halogen-free Yes
ROHS compliant Yes
Specifications
Country of Origin GB
GTIN-13 / EAN 5022660198809
Minimum Order Quantity 1
ETIM 9.0 Key EC001130
