02/11/2024

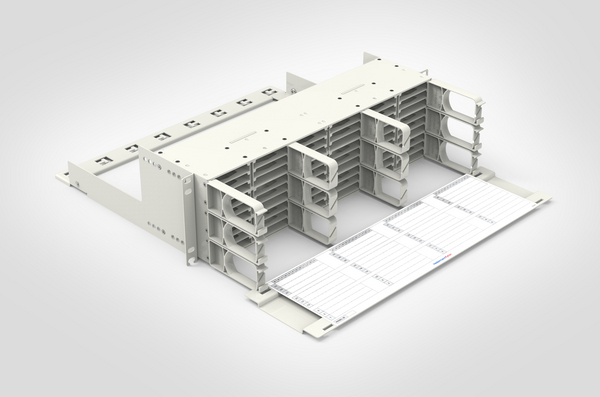

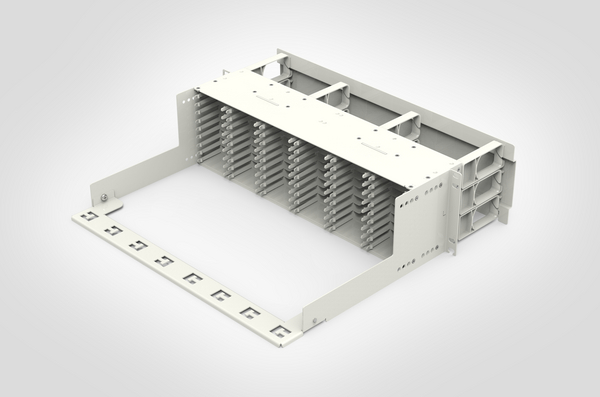

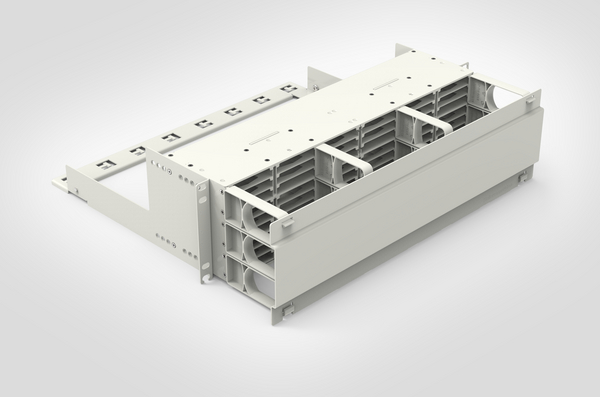

RapidNet Ultra 3U 19" Panel Housing For Ultra8 Cassettes - White
Art.-No. 859-30074 | RNU3U8WH Details

  • High fibre density: LC 432F, CS 648F, SN 864F per U
  • Rear-loading cassettes
  • Integrated rear cable management
  • Integrated front patchcord management rings
  • Adjustable mounting brackets
  • Patching field swing down cover
  • Identification label matrix
  • 19” Mounting profile
  • Signal White RAL 9003
  • Fast, one person installation
Show more
Application High Density Fibre System, Data centre, AI, Enterprise, Co-Location, Hyperscale.
Colour White (WH)
Density high
PART DESCRIPTION RNU3U8WH
Package Content packed in EA
Performance Category Modular
Product Description 19" Panel Housing to support RapidNet Ultra8 cassettes. Available in RAL 9003 Signal White.
Product Family 19" Rack Mountable for Ultra8 Cassettes
Product Group Data Centre High Density Fibre Panel Housing
Short Description RapidNet Ultra 3U 19" Panel Housing For Ultra8 Cassettes - White
Technical Description 3U 19” panel housings for ULTRA8 cassette footprints. Each housing comes standard with integrated rear cable management support for managing and anchoring incoming cables, conduit or breakout manifolds. Adjustable side mounting brackets allow the panel to be recessed. Integrated front patchcord management rings support high density patching by helping to maintain correct bend radius, directing cables naturally into vertical management and remove the need for additional horizontal management. The pivoting door with port I.D. matrix maintains protection for the patching field and offers a clean look. The door swings down and can be fully removed. The 19” panel housing comes pre-assembled with mounting kit and rear manager to fit onsite.
Type RNU3U8WH
Variant Modular Panels
Depth (D) 450mm
Height (H) 133.5mm
Height, Units 3U
Length (L) 450mm
Width (W) 483mm
Halogen-free Yes
ROHS compliant Yes
Specifications
Country of Origin GB

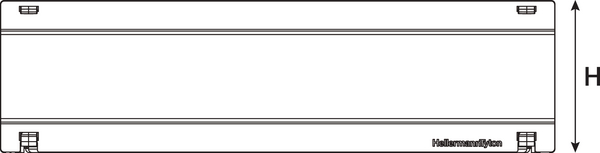

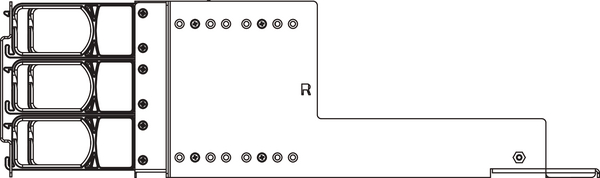

Dimensions W x H x D 483 mm x 133.5 mm x 450 mm
GTIN-13 / EAN 5022660197918
Minimum Order Quantity 1
Packaging 1 - Type box
ETIM 9.0 Key EC001130
