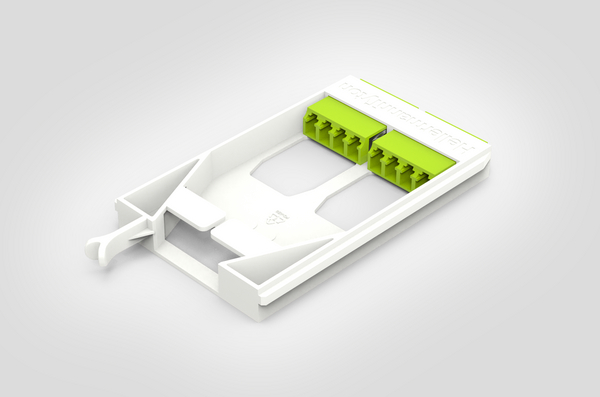

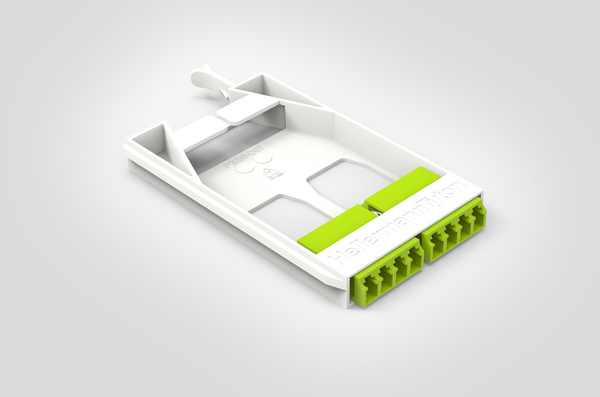

RapidNet Ultra8 AMC - Adaptor Mounting Cassette - LC Multimode OM5
Art.-No. 859-24113 | RNUAMC8-LCL Details

  • High fibre density: LC 8F, CS 12F, SN 16F, MTP12 48F, MTP16 64F per cassette
  • Pre-loaded with adaptors
  • Ideal for managing patching fields and fan-out cables
  • Rapid deployment of ultra high density fibre applications
  • Rear loading mounting hardware
  • Effortless plug & play system
  • Signal white RAL 9003
  • UL94 V0 compliant
Show more
Application High Density Fibre System, Data centre, AI, Enterprise, Co-Location, Hyperscale.
Colour Light Green (LTGN), White (WH)
Connector Colour Light Green (LTGN)
Connector Type LC
PART DESCRIPTION RNUAMC8-LCL
Package Content packed in EA
Performance Category Multimode, OM5 Multimode
Port count 8
Product Description RapidNet Ultra8 AMC - Adaptor Mounting Cassette - LC Multimode OM5
Product Family Ultra8 Adaptor Mounting Cassette
Product Group Data Centre High Density Fibre System - Adaptor Mounting Cassette
Short Description RapidNet Ultra8 AMC - Adaptor Mounting Cassette - LC Multimode OM5
Technical Description RapidNet ULTRA8 AMC - Adaptor Mounting Cassettes are designed to facilitate patch through requirements. Each cassette is pre-loaded with either LC, CS, SN or MTP adaptors and are compatible with RapidNet ULTRA fanout cable assembled and Uniboot patchcords. AMC cassettes can be rear loaded into RapidNet ULTRA Panel Housing. The compact design allows for a ultra high density installations to be realised, maximizing critical connectivity real estate.
Type RNUAMC8-LCL
Variant Modular Fiber Adapter Plate

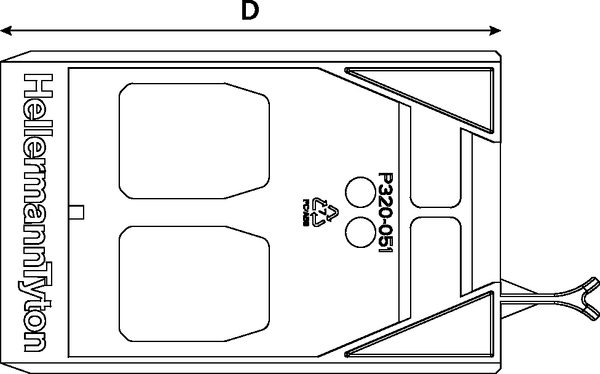

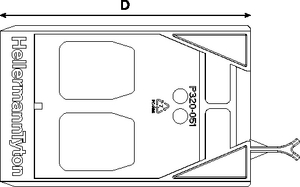

Depth (D) 100mm
Height (H) 12mm

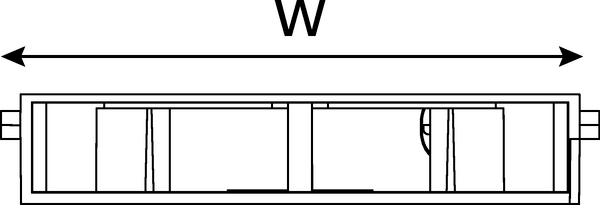

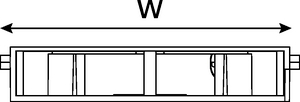

Width (W) 64.5mm
Halogen-free Yes
Optical Performance Multimode
ROHS compliant Yes
Specifications
Country of Origin GB
Dimensions W x H x D 64.5 mm x 12 mm x 100 mm
GTIN-13 / EAN 5022660197321
ETIM 9.0 Key EC001130
