Connectorised PON Street Cabinet : SCSXGYA1CAB0001-MXE01P06B-1681

Fibre Optic External EnclosureArticle number: 857-01209


  • 48 Port Point of Connection (expandable to 96)
  • Duct support bracket for 48 drops (expandable to 96)
  • LC Simplex (UPC/APC) presentation
  • Positive fibre management throughout
  • 900µm fibre routing and management
  • Modular construction allows for build and grow network
  • Quick and easy installation of additional trays/drop patch modules
  • Fibre storage basket for loop through applications
Colour Grey (GY)
Connector Type LC
Product Family Fibre Optic External Enclosure
Product Group Connectorised PON Street Cabinet
Qty Trays 9

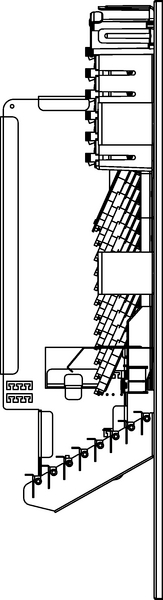

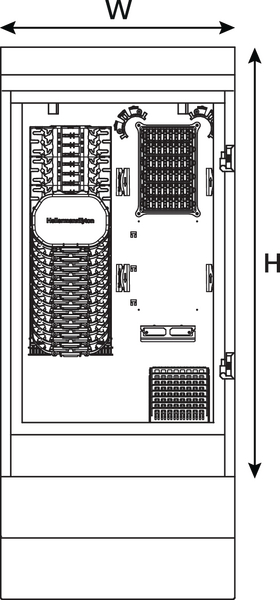

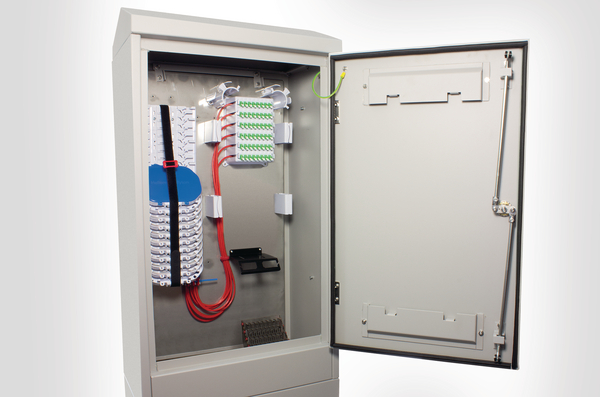

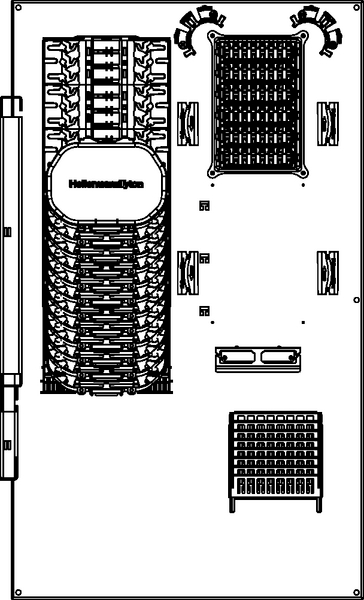

Technical Description A modular and flexible fibre management system housed within a stainless steel powder coated street cabinet 535 x 998 x 315mm (WxHxD). (Riser supplied separately). The fibre management system offers 48 LC Simplex connections (expandable up to 96) in a point to multipoint design with positive fibre management for both 250µm and 900µm fibre. Additional loop storage is provided for installations with loop through applications. The cabinet is supplied with 6 1 x 8 splitter assemblies, 3 fibre splice trays, 6 drop patch modules, a drop patch modules holder, drop cable manager and a customer drop management bracket to accommodate 48 8mm blown duct tubes. Each splitter assembly consists of a pre-assembled fibre splice tray with a single pre-installed 1 x 8 splitter and 1 3A splice bridge. The splitter is pre-connectorised with 8 LC Simplex 900µm output fibres. These are routed to an 8 port LC Simplex drop patch module and connected to 8 LC Simplex adaptors. The additional trays are fitted with 2 splice bridges to accommodate a maximum of 16 3A splices.
Type of Tray Versatile Routing ME

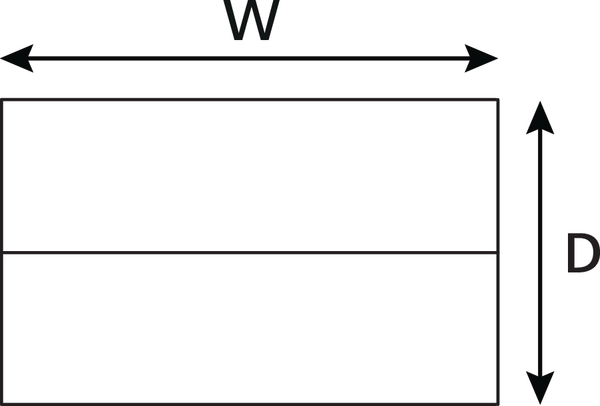

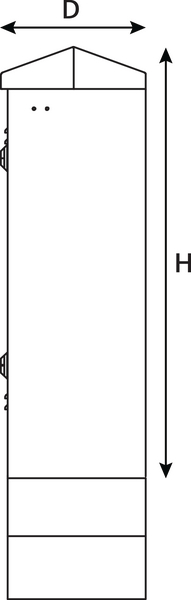

Depth (D) 315mm

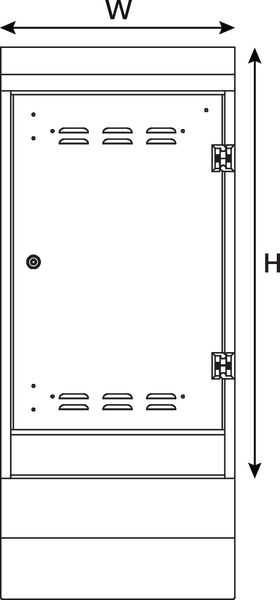

Height (H) 985mm
Width (W) 535mm
Material Stainless Steel (SS)
GTIN-13 / EAN 5022660156755
