20/09/2024

SP-G SpeedPipe Ground 12/8MM
Art.-No. 872-00067 | SP-G-12/8MM-3921-PE-HD-VT |  Details

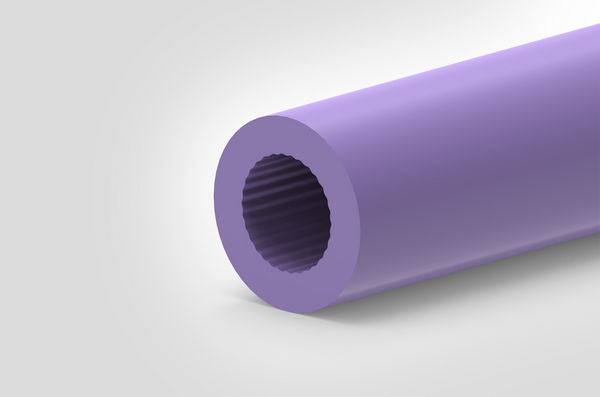

SpeedPipe 12/8mm in Purple

    Add to watchlist
    Downloads
    Application Suitable for the extension or construction of passive infrastructure in fibre optic networks speedpipe ground is suitable for direct burying in all FTTx networks as well as for branching-off from existing duct routes.
    Cable ∅ max 6.8mm
    Cable ∅ min 3mm
    Colour Purple (PE)
    Local order number 3921
    Material Polyethylene, high density (PE-HD)
    PART DESCRIPTION SP-G-12/8MM-3921-PE-HD-VT
    Pack Cont. 2000m
    Package Content packed in drum
    Product Description The 12/8mm Speedpipe Ground (SP-G) is a thick walled duct manufactured from high quality HDPE material suitable for direct buried applications. The duct is manufactured to a high specification with sliding ribs and a low friction liner (LFL) which provides the optimum air cushion between the fibre optic cable and the duct during the blowing process. The tight manufacturing specification and high apex pressure resistance helps our speedpipe retain its round shape and enables consistent results when blowing in fibre optic cables, even after decades of use in its application.
    Product Family Direct Buried/Thick Walled/HDPE
    Product Group SP-G SpeedPipe Ground
    Short Description SP-G SpeedPipe Ground 12/8MM
    Type SP-G-12/8MM-3921
    Length (L) 2000mm
    Wall (WT) 2mm
    Weight/Unit 0.060kg

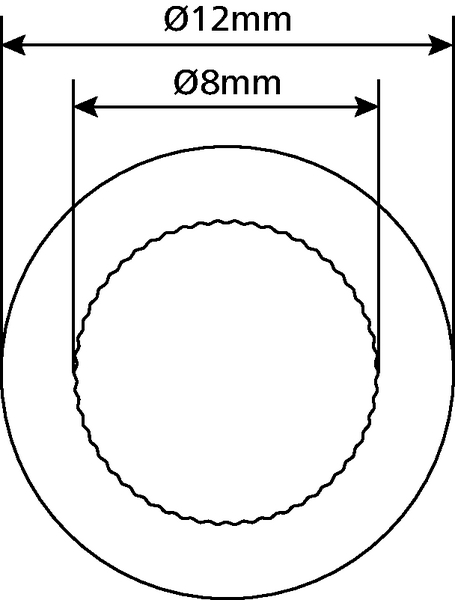

    ∅ 8mm
    ∅ 12mm
    Country of Origin DE
    GTIN-13 / EAN 4031051018504
    Packaging 1 - Height (m) 1.2m
    Packaging 1 - Length (m) 1.2m
    Packaging 1 - Qty 2000
    Packaging 1 - Type drum
    Packaging 1 - Volume (m³) 0.52704m³
    Packaging 1 - Weight (kg) 143kg
    Packaging 1 - Width (m) 0.366m
    Packaging 2 - Length (m) 1.2m
    Packaging 2 - Qty 6000
    Packaging 2 - Type pallet
    Packaging 2 - Weight (kg) 445kg
    Packaging 2 - Width (m) 1.2m
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
