3F Tubefix
Art.-No. 857-40288 | TF-3F-BL25 |

Copied

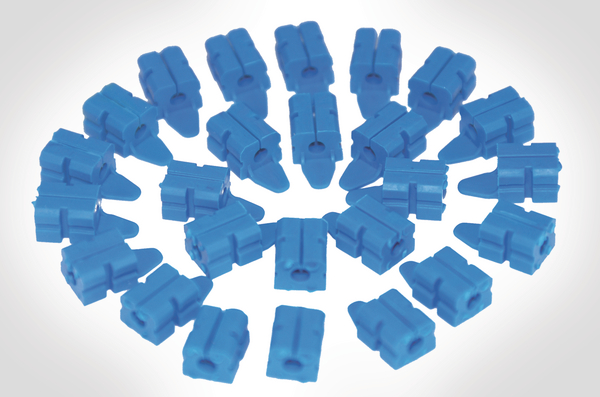

Tubefix in Blue (25 pk)

    • Easy to fit by hand
    • Used for securing transportation tubing to splice trays
    • Two options for outer diameter tube sizes of 4mm and 3mm
    • Ribbon fibre option for 8 or 12 fibre ribbon cable
    • 4 way tubefix option available for tubes with an outer diameter of 1.9mm
    Add to watchlist
    Downloads
    Colour Blue (BU)
    Material Thermoplastic Elastomer (TPV)
    PART DESCRIPTION TF-3F-BL25
    Package Content 25pcs.
    Package Content packed in bag
    Product Description 3F Tubefix Blue
    Product Family Closure Base Accessories
    Product Group 3F Tubefix
    Technical Description Tubefix is used to secure transportation tubing to trays. Tubefix is available in two sizes 3F which accepts a maximum tube outer diameter of 4mm and 8F which accepts a maximum tube outer diameter of 3mm. A 4 way 11F tubefix option is available which accepts an outer tube diameter of 1.9mm and can be used to secure tubing to splitter units and connector plates. The ribbon tubefix accepts 8 or 12 fibre ribbon cable and is suitable for use with the HellermannTyton Ribbon Fibre Trays.
    Type TF-3F-BL25
    ⌀ 2.8mm
    ⌀ 4.0mm
    ⌀ (D2) 2.8mm
    Height (H2) 6.0mm
    Length (L) 14.34mm
    Outside ⌀ (OD) 4.0mm
    Width (W) 7.4mm
    ELV compliant (Article 4 - 2) YES
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660114687
    Packaging 1 - Weight (kg) 0.009kg
    Packaging 2 - Height (m) 0.125m
    Packaging 2 - Width (m) 0.125m
    ETIM 7.0 Key EC002609
    ETIM 8.0 Key EC002609
    ETIM 9.0 Key EC002609
    UNSPSC Key 43223338
