12/12/2024

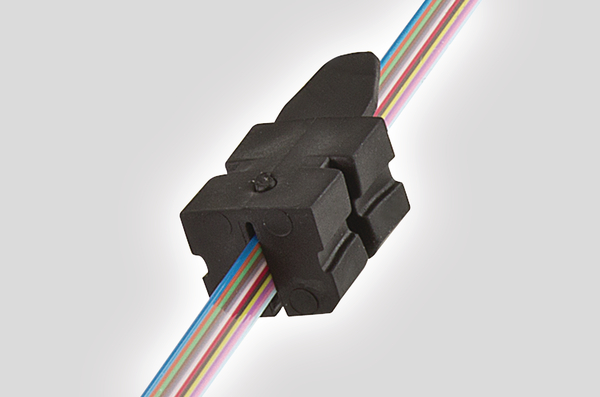

Ribbon Fibre Tubefix
Art.-No. 857-40359 | TF-RIB-BK-25 Details

  • Easy to fit by hand
  • Used for securing transportation tubing to splice trays
  • Two options for outer diameter tube sizes of 4mm and 3mm
  • Ribbon fibre option for 8 or 12 fibre ribbon cable
  • 4 way tubefix option available for tubes with an outer diameter of 1.9mm
Show more
Colour Black (BK)
Material Thermoplastic Elastomer (TPE)
PART DESCRIPTION TF-RIB-BK-25
Pack Cont. 25pcs.
Package Content packed in bag
Product Description 8/12 Ribbon Fibre Tubefix
Product Family Closure Base Accessories
Product Group Ribbon Fibre Tubefix
Technical Description Tubefix is used to secure transportation tubing to trays. Tubefix is available in two sizes 3F which accepts a maximum tube outer diameter of 4mm and 8F which accepts a maximum tube outer diameter of 3mm. A 4 way 11F tubefix option is available which accepts an outer tube diameter of 1.9mm and can be used to secure tubing to splitter units and connector plates. The ribbon tubefix accepts 8 or 12 fibre ribbon cable and is suitable for use with the HellermannTyton Ribbon Fibre Trays.
Type TF-RIB-BK-25
Height (H) 6.00mm
Height (H2) 5.25mm
Length (L) 14.34mm
Width (W) 7.4mm
ELV compliant (Article 4 - 2) YES
Country of Origin GB
GTIN-13 / EAN 5022660134197
ETIM 7.0 Key EC002609
ETIM 8.0 Key EC002609
ETIM 9.0 Key EC002609
UNSPSC Key 43223338
