SE-B-IR Splice Trays with Splitter Splice Bridges
Art.-No. 857-40342 | TRAY-BK-SE-B-IR-RB/3A-06 Details

  • Positive fibre management minimum bend radius 30mm
  • 2 fibre entry ports
  • Supplied with heatshrink (3A) and splitter/3A bridge inserts
  • Black tray colour provides high contrast to standard fibre management trays
  • Maximum splice capacity of 14 fibres (heatshrink/3A)
Show more
Colour Black (BK)

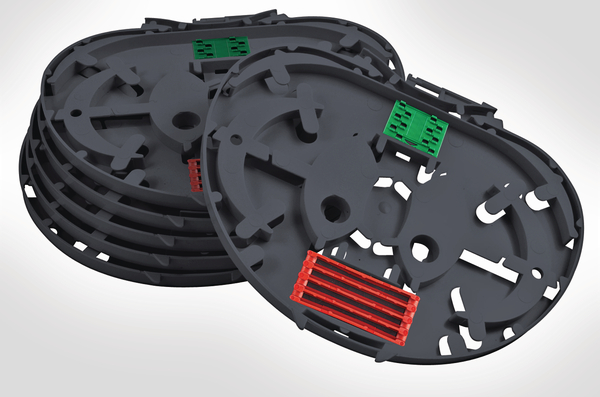

Content 6 x IE Single Element Splitter Trays, 6 x Mechnical/Ribbon and 6 x Heatshrink (3A) Splice Protector Holders
Material Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION TRAY-BK-SE-B-IR-RB/3A-06
Pack Cont. 6pcs.
Package Content packed in bag
Product Family IR Single Element Splitter SE-B
Product Group Integrated Routing Fibre Optic Splice Tray
Qty Trays 6
Short Description SE-B-IR Splice Trays with Splitter Splice Bridges

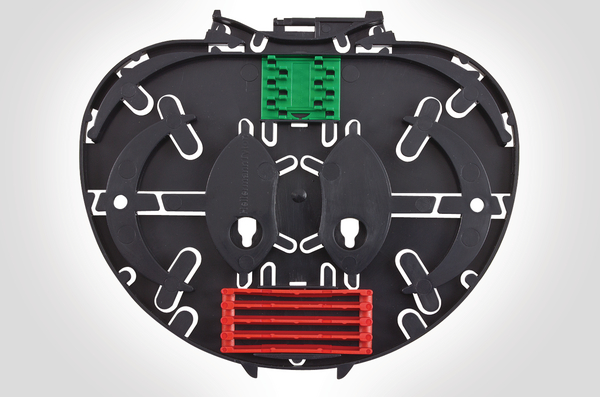

Technical Description The Integrated Routing (IR) single element splitter tray is manufactured from black ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 148 x 125 x 7mm. The IR single element splitter tray is supplied with an optical splitter/3A splice bridge at the front, which will accommodate 2 x 60 x 7 x 4mm optical splitters, and a 3A heatshrink (3A) bridge at the rear. The maximum splice capacity of the tray is 14 fibres based on 14 double stacked heatshrink (3A) splice protectors up to 60mm long. The IR single element splitter trays is suitable for use in the UFC-IR, FDN-IR and FML-IR closures.
Type TRAY-BK-SE-B-IR-RB/3A-06
Type of Tray IR SE/BK

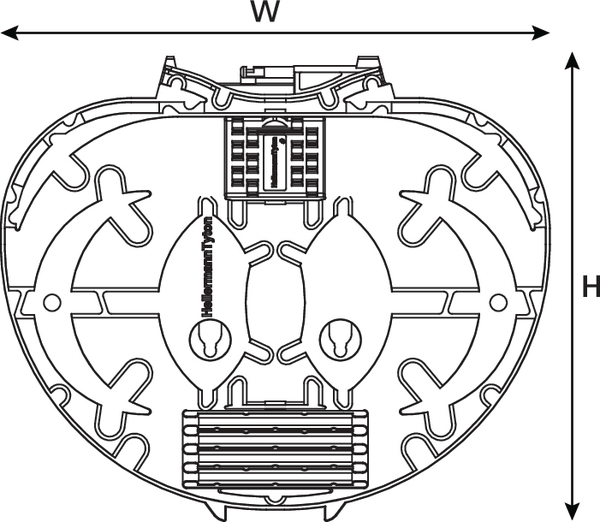

Depth (D) 7mm
Height (H) 125mm
Width (W) 148mm
Hazardous Goods No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660126345
Packaging 1 - Height (m) 0.95m
Packaging 1 - Length (m) 0.28m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0
Packaging 1 - Weight (kg) 0.3kg
ETIM 7.0 Key EC000762
ETIM 8.0 Key EC000762
ETIM 9.0 Key EC000762
UNSPSC Key 43223337
