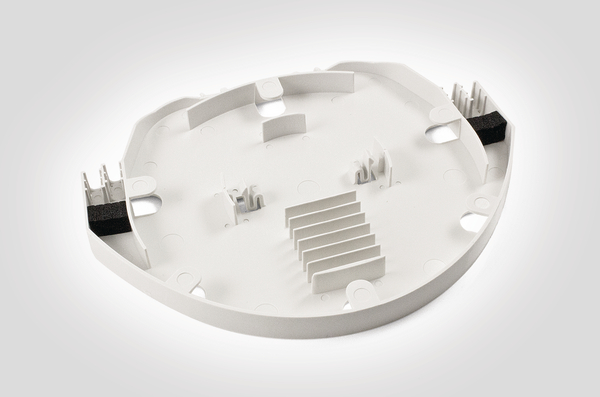

Multi-Ribbon Tubed Fibre Optic Splice Tray
Art.-No. 857-40345
| TRAY-MR-TB-03
|
Copied
- Positive fibre management minimum bend radius 35mm
- 4 fibre entry ports
- Moulded splice holder fins for 8 or 12 fibre ribbon cable or 3A (heatshrink) splice protectors
- Maximum splice capacity of 12 (8 or 12 fibre) ribbon cable or 36 fibres (3A)
More products in this product group:
| Colour | White (WH) |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| PART DESCRIPTION | TRAY-MR-TB-03 |
| Package Content packed in | bag |
| Product Family | Multi-Ribbon |
| Product Group | Tubed Fibre Optic Splice Tray |

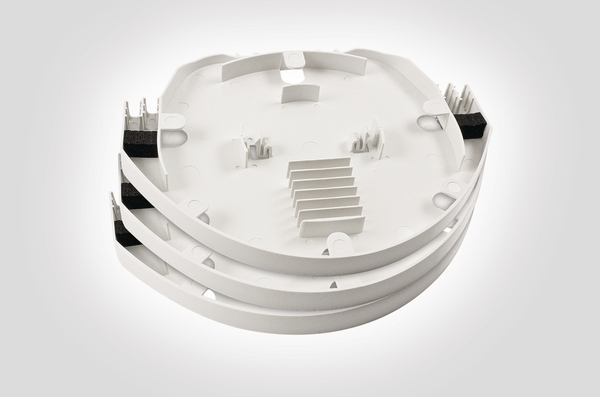

| Qty Trays | 3 |
| Short Description | Multi-Ribbon Tubed Fibre Optic Splice Tray |

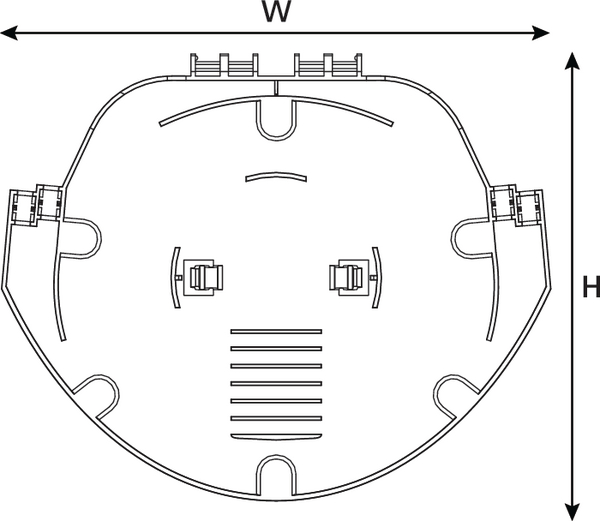

| Technical Description | The Multi-Ribbon tray is an elliptical tray designed for high fibre count multiple applications which is manufactured from ABS and finished to a high specification to eliminate the risk of snagging and microbends. All retaining tabs have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 182 x 148 x 14mm. Each Multi-Ribbon tray accepts 12 x 12 or 8 fibre ribbon cable or 36 x 3A (heatshrink) splice protectors and is suitable for use with the UFC and FDN tubed closures. |
| Type | TRAY-MR-TB-03 |
| Type of Tray | Multi-Ribbon |
