Hellipse NZDF SC Splice Trays with Moulded Splice Holder Fins
Art.-No. 857-40280 | TRAY-NZDF-SC-1-06 | Details

Distributors near you

More products in this product group:

Content	3 x Hellipse NZDF SC-1A Heatshrink (3A) moulded splice protector holders, 3 x Hellipse NZDF SC-1B moulded Crimp (ANT) splice protector holders
PART DESCRIPTION	TRAY-NZDF-SC-1-06
Package Content packed in	bag
Product Family	Hellipse NZDF SC-1
Product Group	Tubed Fibre Optic Splice Tray
Qty Trays	6
Short Description	Hellipse NZDF SC Splice Trays with Moulded Splice Holder Fins

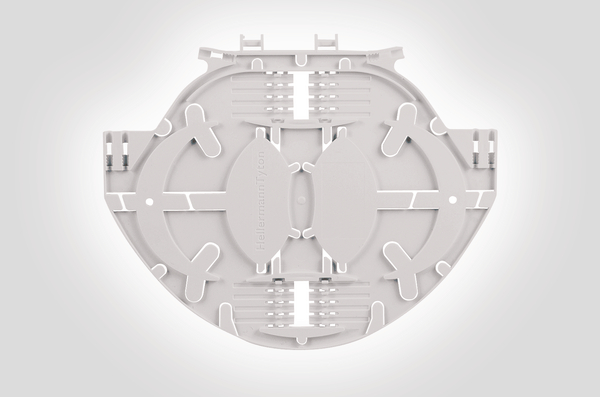

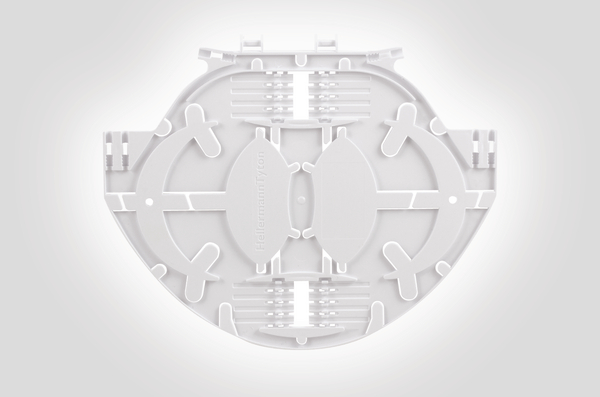

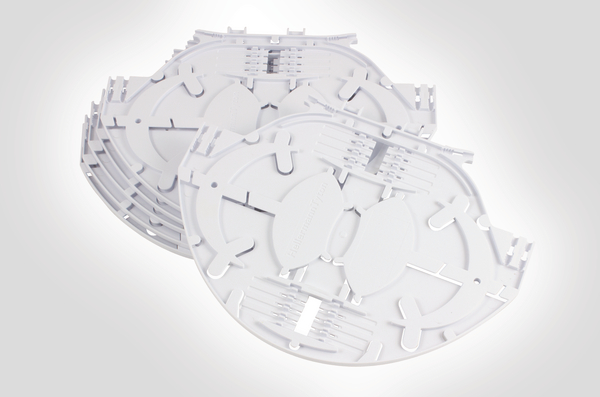

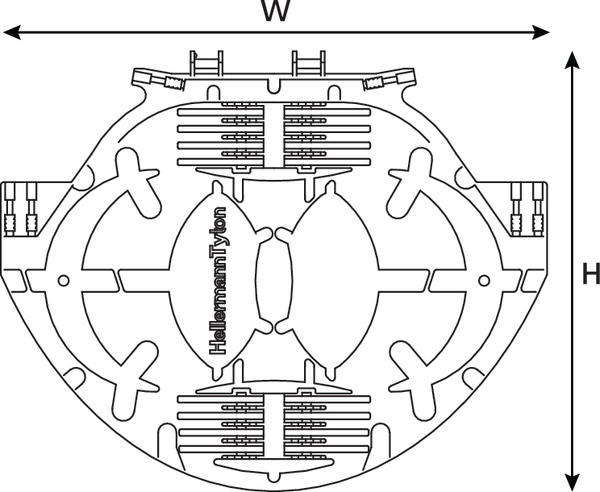

Technical Description	The Hellipse NZDF SC-1 pack consists of the 3 x NZDF SC-1A (white) and 3 x NZDF SC-1B (grey) which are elliptical trays designed for single circuit applications. Both trays are manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the trays have radius edges and rounded corners where fibre may pass. The overall dimensions of the trays are 184 x148 x 3.5mm. The NZDF SC-1 trays accept 8 x 3A (heatshrink) or 8 x ANT splice protectors. The NZDF SC-1 tray pack is suitable for use in the UFC, FDN or FML tubed closures.
Type	TRAY-NZDF-SC-1-06
Type of Tray	Hellipse NZDF SC-1
