Hellipse NZDF SE-A Splice Trays with ANT Splice Bridges

Art.-No. 857-40272

| TRAY-NZDF-SE-A-ANT-06

|

Hellipse NZDF SE-A Tray with ANT splice bridges (6 pk)

Hellipse NZDF SE-A Tray with no inserts (6 pk)

Hellipse NZDF SE-A Tray with 3a splice bridges (6 pk)

Positive fibre management - minimum bend radius 37.5mm
10 fibre entry ports
2 mounting positions for splice protector inserts
Option for optical splitter/3A or ANT splice bridge
Optical splitter accommodation up to a maximum of 70 x 20 x 6mm
Back to back mounting capability allows routing of fibre between trays
Maximum splice capacity of 24 fibres (double stacked)

Add to watchlist

Distributors near you

Downloads

More products in this product group:

Tubed Fibre Optic Splice Tray

Base Data

Content	6 x Hellipse NZDF SE-A, 12 x Crimp (ANT) splice protector holders
Material	Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION	TRAY-NZDF-SE-A-ANT-06
Package Content packed in	bag
Product Family	Hellipse NZDF SE-A
Product Group	Tubed Fibre Optic Splice Tray
Qty Trays	6
Short Description	Hellipse NZDF SE-A Splice Trays with ANT Splice Bridges
Technical Description	The Hellipse NZDF SE-A is an elliptical tray designed for single element and single circuit applications which is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 202 x 148 x 7mm. The Hellipse NZDF SE-A tray accepts a wide range of splice protectors and can accommodate 2 x 60 x 7 x 4mm optical splitters when using the optional splitter/3A or ANT splice bridge. A single optical splitter up to a maximum of 70 x 20 x 6mm can be fitted into the tray in place of a splice bridge. The tray has 2 pivot points to allow for mounting into a 6 tray module and is suitable for use in the FDN or UFC tubed closures. The maximum splice capacity of the Hellipse NZDF SE-A tray is based on 24 double stacked heatshrink (3A) splice protectors upto 60mm long.
Type	TRAY-NZDF-SE-A-ANT-06
Type of Tray	Hellipse NZDF SE-A

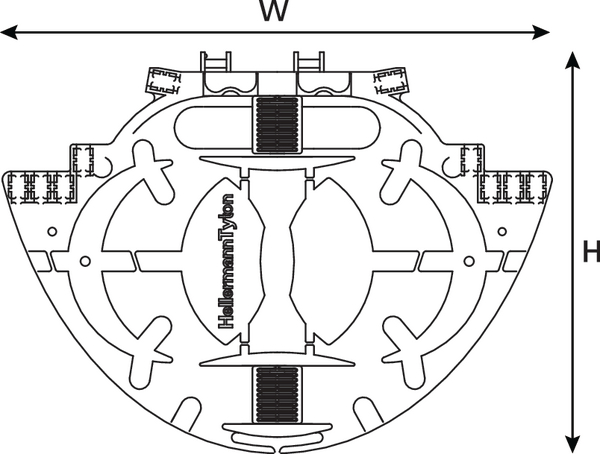

Product Dimensions

Depth (D)	7mm
Height (H)	148mm
Width (W)	202mm

Specifications

ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660113383

More Information

ETIM 7.0 Key	EC000762
ETIM 8.0 Key	EC000762
ETIM 9.0 Key	EC000762
