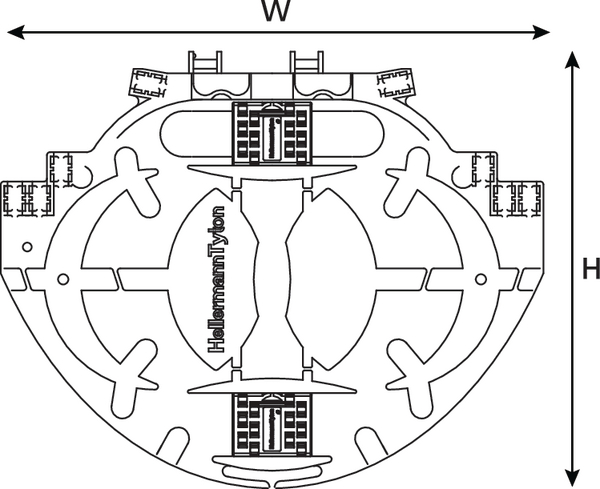

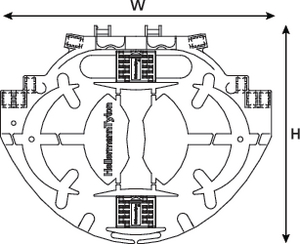

Hellipse NZDF SE-B Splice Trays with 3A Splice Bridges
Art.-No. 857-40275 | TRAY-NZDF-SE-B-3A-06 Details

  • Positive fibre management - minimum bend radius 37.5mm
  • 8 fibre entry ports
  • 2 mounting positions for splice protector inserts
  • Option for optical splitter/3A or ANT splice bridge
  • Optical splitter accommodation up to a maximum of 70 x 20 x 6mm
  • Option for optical splitter/3A or ANT splice bridge
  • Back to back mounting capability allows routing of fibre between trays
  • Maximum splice capacity of 14 fibres
Show more
Content 6 x Hellipse NZDF SE-B, 12 x Heatshrink (3A) splice protector holders
PART DESCRIPTION TRAY-NZDF-SE-B-3A-06
Package Content packed in bag
Product Family Hellipse NZDF SE-B
Product Group Tubed Fibre Optic Splice Tray
Qty Trays 6
Short Description Hellipse NZDF SE-B Splice Trays with 3A Splice Bridges
Technical Description The Hellipse NZDF SE-B is an elliptical tray designed for single element and single circuit applications which is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 184 x 148 x 7mm and the maximum splice capacity of 24 fibres is based on 24 double stacked heatshrink 3A splice protectors up to 60mm long. The Hellipse NZDF SE-B tray accepts a wide range of splice protectors and can accommodate 2 x 60 x 70 x 4mm optical splitters when using the optional splitter/3A or ANT splice bridge. A single optical splitter up to a maximum of 70 x 20 x 6mm can be fitted into the tray in place of a splice bridge. The tray has 2 pivot points to allow for mounting into a 6 tray module and is suitable for use in the FML tubed closures.
Type TRAY-NZDF-SE-B-3A-06
Type of Tray Hellipse NZDF SE-B
Depth (D) 7mm
Height (H) 148mm
Recov. ∅ d max. 2.4mm
Width (W) 184mm
Country of Origin GB
Customs Number 85389099
GTIN-13 / EAN 5022660113406
Packaging 1 - Height (m) 0.381m
Packaging 1 - Length (m) 0.254m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0
Packaging 1 - Weight (kg) 0.3kg
ETIM 7.0 Key EC000762
ETIM 8.0 Key EC000762
ETIM 9.0 Key EC000762
